Specifications
Brand Name :
E-link
Model Number :
LNK-MDF100
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Extender Standard Export Package
Keywords :
Fiber Optic Extender
Dimensions (WxDxH) :
80 x 40 x 20 (mm)
Operating Temperature :
-20℃ ~ +70℃
Power supply :
The power adapter: DC 5V
Power dissipation :
MAX 1.2W
Description

Mini-type DVI Fiber Optic Extender with external stereo


Mini-type DVI Fiber Optic Extender with external stereo Advantages


► Transmits DVI video signals and audio up to 20km over a single fiber optic cable;

► Compliant with DVI 1.0 specifications ;

► Support 1920*1200 1080P@60Hz

► Special support 1600*1200 @60Hz

► Supporting pixel rates from 25MHz to 165MHz

► DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i up to 1080p

► PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play;


Mini-type DVI Fiber Optic Extender with external stereo Overview

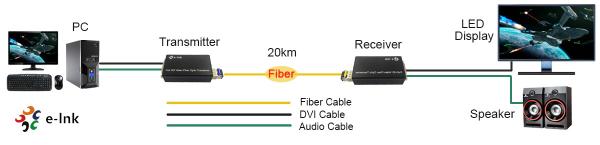

The LNK-MDF100 Series Mini-type DVI Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports DVI 1.0 specifications,high resolution up to 1920*1200@60Hz. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.


Mini-type DVI Fiber Optic Extender with external stereo Technical Indexes


Parameter

Description

Video

Standards

DVI1.0 3D; HDCP1.4

Maximum pixel clock

165MHz

Maximum data rate

6.75Gbps

Compliant

1080P@50/59.95/60Hz,( Max 1920*1200@60Hz)

DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i,1080p

PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA

Special support 1600*1200 @60HZ

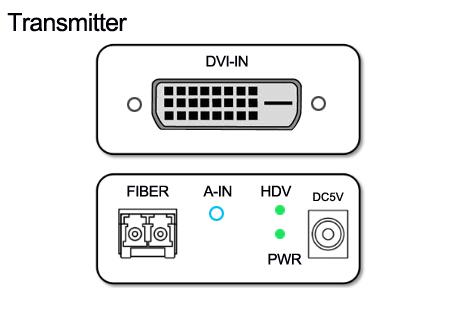

Connector

Female DVI-D

Impedance

100Ω

HDMI Cable Range

<5Meter (Resolution up to 1920*1200@60Hz)

Audio

Interface

3.5MM external stereo audio

Optical fiber

Interface

SFP model – LC connector

Fiber type

Single-mode; Multi-mode

Wavelength

850nm/1310nm

Interface bandwidth

3Gbps

Transmission distance

Transmission@1920*1200@60Hz

Multi-mode fiber: <500M

Single-mode fiber: 20km

Mini-type DVI Fiber Optic Extender with external stereo Ordering information


Model

Description

LNK-MDF100

DVI Fiber Optic Extender with external stereo audio:1920*1200P@60Hz, Compliance with DVI 1.0 & HDCP1.2 standard, LC(SFP), Multimode fiber, 300m, including 1 transmitter & 1 receiver, used by pairs

LNK-MDF100S

DVI Fiber Optic Extender with external stereo audio:1920*1200P@60Hz, Compliance with DVI 1.0 & HDCP1.2 standard, LC(SFP), single mode, single fiber, 20km, including 1 transmitter & 1 receiver, used by pairs
