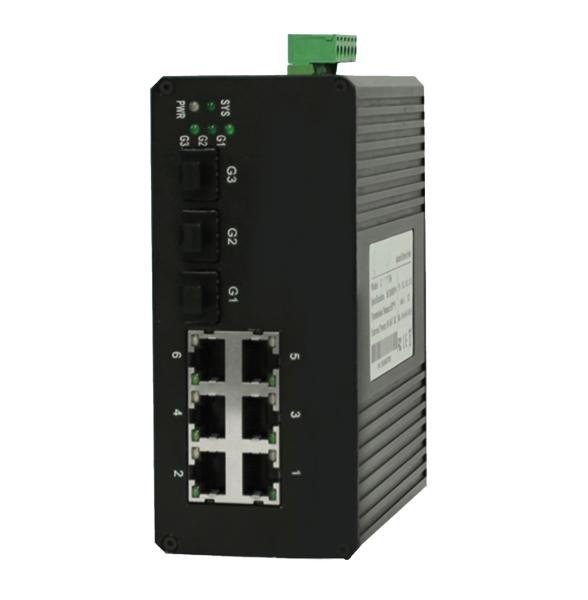

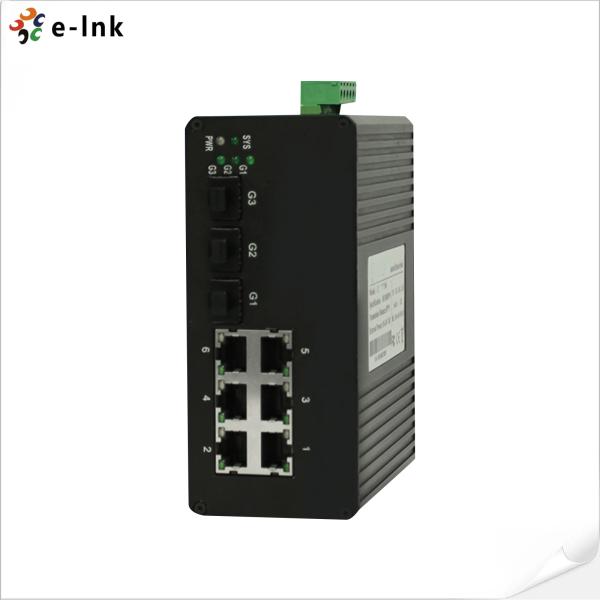

6 Port Managed Industrial Ethernet Switch with 3 1000Base-X SFP ports and 6 10/100Base-T(X) ports
6 Port Managed Industrial Ethernet Switch with 3 1000Base-X SFP ports and 6 10/100Base-T(X) ports
6 Port Managed Industrial Ethernet Switch with 3 1000Base-X SFP ports and 6 10/100Base-T(X) ports
6 Port Managed Industrial Ethernet Switch with 3 1000Base-X SFP ports and 6 10/100Base-T(X) ports
Specifications
Brand Name :
E-link
Model Number :
LNK-GYM306
Certification :
ISO9001, CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiated
Payment Terms :
T/T,PayPal
Supply Ability :
1000pcs/mouth
Delivery Time :
5-12working days
Packaging Details :
standard export package
Dimension :
138mm(L) X 112mm(W) X 60mm(H)
Weight :
710g
Installation :
Din-Rail mounting, Wall mounting
SFP Port :
1000Base-X interface
RJ45 Port :
10/100Base-T(X) auto negotiation
Operating Temperature :
-40℃-85℃
Description

6 Port Managed Industrial Ethernet Switch with 3 1000Base-X SFP ports

and 6 10/100Base-T(X) ports

Managed Industrial Ethernet Switch Advantage

Ø "OP-Ring" (recovery time<20ms), RSTP/STP, and MSTP for network redundancy

Ø DHCP Option 82 for IP address assignment with different policies

Ø Ethernet/IP and Modbus/TCP industrial Ethernet protocol supported

Ø Lock port access by only authorized MAC address

Ø Port mirroring for online debugging

Ø QoS and ToS/DiffServ for flow control and management

Managed Industrial Ethernet Switch Overview

LNK-GYM306 Series Hardened Industrial Ethernet Switch is specially designed for industrial application,

which provides fast and stable media conversion between 6x10/100BaseT(X) and 3x1000BaseFX. It also

eets the requirements of long distance, high speed, and wide broadcast.

This managed industrial Ethernet switch is designed to match the critical industrial standards. With reliable

and simple operation against vibration and shock, and wide operation temperature range, it could match a

variety of harsh environments.

Managed Industrial Ethernet Switch Technical Indexes

Parameter

Specifications

Physical Characteristics

Housing: Aluminum Alloy material with IP40 Protection

Dimension: 138mm(L) X 112mm(W) X 60mm(H)

Weight: 710g

Installation: Din-Rail mounting, Wall mounting

Switch Properties

Priority Queues: 4

Maximum No of Available VLANs: 256

VLAN ID: 1-4094

IGMP Groups: 256

MAC Table Size: 8K

Packet Buffer Size: 1M bit

Interfaces

SFP Port: 1000Base-X interface

RJ45 Port: 10/100Base-T(X) auto negotiation

Console Port: rs-232(RJ45 connector)

Alarm Contact: 1 replay outputs, supports IP/MAC conflict

Power

Input Voltage: 24V DC(18-36VDC) Redundant dual inputs

Input Current: <0.5A @24VDC

Overload Current Protection: Present

Reverse Polarity Protection: Present

Redundant Protection: Present

Connection: 1 removable 6-pin terminal blocks

Environmental Limits

Operating Temperature: -40℃-85℃

Storage Temperature: -40℃-85℃

Ambient Relative Humidity: 5%-95% (non-condensing)

Technology

Protocol: OP-Ring, IGMPv1/v2, GVRP, SNMPv1/ v2C/ v3, DHCP Client, TFTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, SSH, SNMP Inform, LLDP, SNTP Service/ Client, PVLAN

MIB: MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1,2,3,9

Flow Control: IEEE 802.3x flow control, back pressure flow control

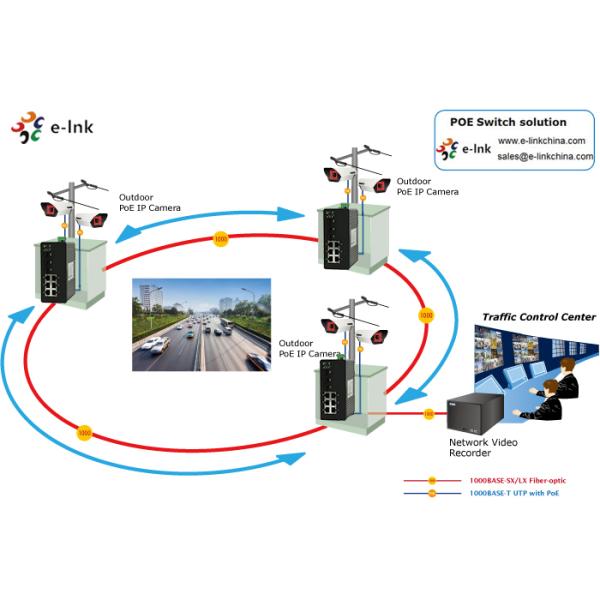

Managed Industrial Ethernet Switch Application
