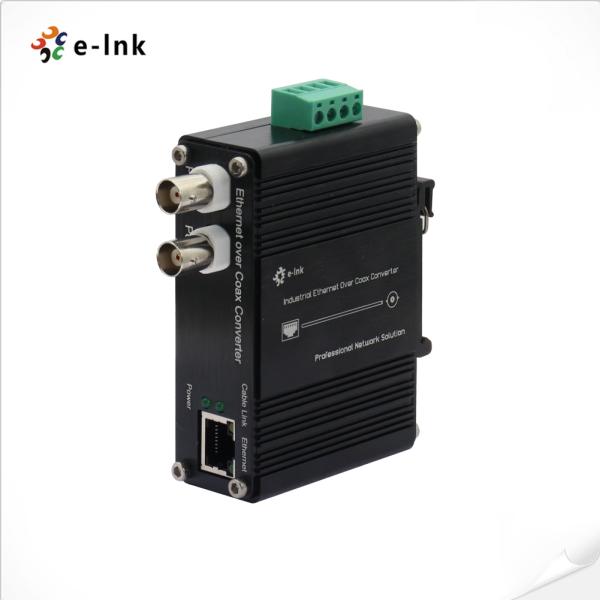

DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
Specifications
Brand Name :
E-link
Model Number :
LNK-DEC110
Certification :
Iso9001, CE, ROHS, FCC
Place of Origin :
China
MOQ :
1pcs
Price :
negotiate
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Supply Ability :
100PCS/Month
Delivery Time :
3-5 working days
Packaging Details :
HDMI Fiber Extender Standard Carton Packaging
Maximum Distance :
Cat5UTP up to 100m
Connector :
1 x RJ45
Cabling :
Coaxial Cable (75 ohm)
Distance :
Up to 1200m (no PoE), 300m (with PoE)
Technology :
Power Line Communication (PLC)
Dimensions (W x D x H) :
95 × 67 × 30 mm
Description

DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender

Model: LNK-DEC110 Series

Overview

The LNK-DEC110 Series DIN-Rail Ethernet over Coaxial Converter is a new designed Ethernet

Extender Device. This Device is designed to extend Ethernet Network signal and Power over existing

coaxial cable, and able to live transmit multi-channel Power + Network date signal, the Max distance

is up to 1200M(Power: 300M). 2pc BNC design supports to connect 2 channel branch lines at same

time. The total power of electricity is 100W, each BNC max is 50W. Network max baud-rate is up to

100Mbps. It has excellent lightning protection and Anti-interference.

Inbuilt Industry level intelligent auto-monitoring module (this function is optional), this function can

make the device intelligent detect circuit individually, all time automatically detect network communication

link exceptional situation. If any link is abnormal, it make the device recover to link the communication

automatically, ensure the network communication link data transmission stably. Really realize never loss

network connection, never crash industry network transmission. Guarantee the security of surveillance zone.

These series products are widely used in CCTV surveillance and remote network extension.

Features

► Transmit 10/100 Mbps Full Duplex Ethernet up to 1200m (without PoE) or 300m (with PoE)

► Transmission Media: Coaxial Cable(Best), 586B, CAT5e/6

► Input Voltage: DC18V~48V (POE: DC48V).

► Support Power over Coax & Power over Ethernet at same time.

► 2pc BNC design, support to connect Max. 7 channels branch line

► Operation: Use the existing network, easy to install, Plug & Play. Convenient and efficient.

► Code Standard: abide by IEEE802.3 10/100 base-TX Ethernet standard protocol

► Advanced 128-bit AES encrypted transmission and PoE+ power technology

► Excellent Protection: Built-in transient protection; industrial temperature range. Excellent lightning protection and strongly Anti- interference, surge protection.

Technical Indexes

Ethernet
Standards IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3af Power Over Ethernet
IEEE802.3at Power Over Ethernet
Cabling 10Base-T: Cat 3,4,5, or above
100Base-TX: Cat5 or above
Maximum Distance Cat5UTP up to 100m
Connector 1 x RJ45
Coaxial
Cabling Coaxial Cable (75 ohm)
Connector 1 BNC (female)
Distance Up to 1200m (no PoE), 300m (with PoE)
Data Rate
Downlink (TX to RX) 90Mbps (Max.)
Uplink (RX to TX) 90Mbps (Max.)
Technology Power Line Communication (PLC)
Protection
Reverse Polarity Present
Electrical and Mechanical
Input Power DC18V~48V (PoE: DC48V)
Power Consumption 8W Max. (PoC not in use)
60W Max. (Poc in use)
LED Indicators
Power (Power) RED (Power On: keep lighting; Power Off: lighting off)
Coax (Cable Link) GREEN (Flicker: signal transmission)
Ethernet SPD, LINK/ACT, PoE(Transmitter)
PoE
Standard IEEE802.3af/at
Mode B Mode
Port RJ45
Max. Power Per Port 25.5W max.at RX(Powered Device)
30W Max.at TX(Power Souring Equipment)
Mode Positive(VCC+): RJ45 Pin 4,5
Negative(VCC-):RJ45 Pin 7,8
Dimensions (W x D x H) 95 × 67 × 30 mm
Weight 0.5kg
Casing Aluminum case
Environmental
Operation Temperature -10˚C to 60˚C (14˚F to 140˚F)
Storage Temperature -40˚C to 85˚C (-40˚F to 185˚F)
Relative Humidity 5% to 90% non-condensing
MTBF > 100,000 hrs
Regulatory Approvals

ISO9001

FCC Part 15 Class A

EN55022 Class A

Surge Protection

RJ45: 1KV

BNC: 2KV

Power: 500V

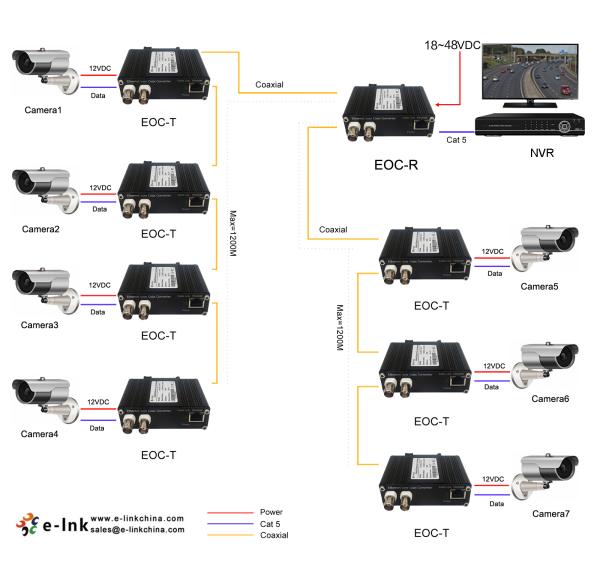

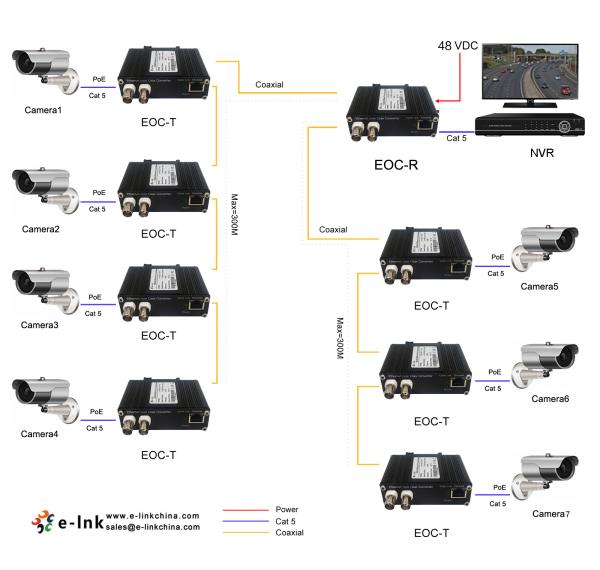

Application

DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender

DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender

Ordering lnformation

Model Description

LNK-DEC110-T/R

DIN-Rail EoC Converter, 1200m transmission distance, including Transmitter and Receiver, not including power supply adapter

LNK-DEC110P-T/R

DIN-Rail EoC Converter with PoE+, 300m transmission distance, including Transmitter and Receiver, not including power supply adapter
