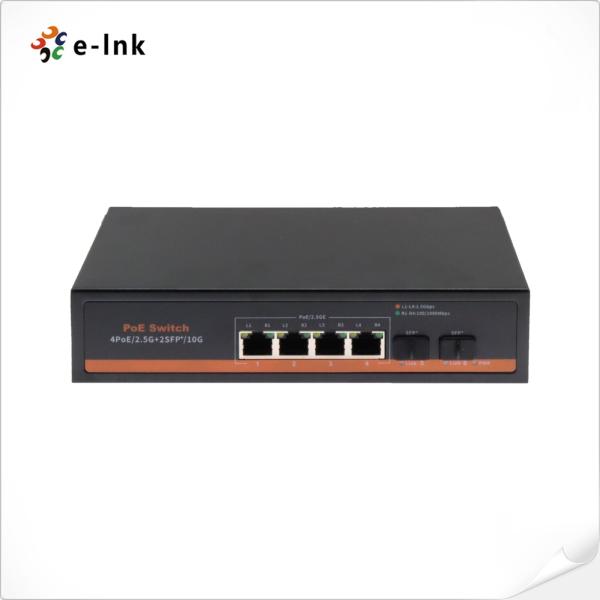

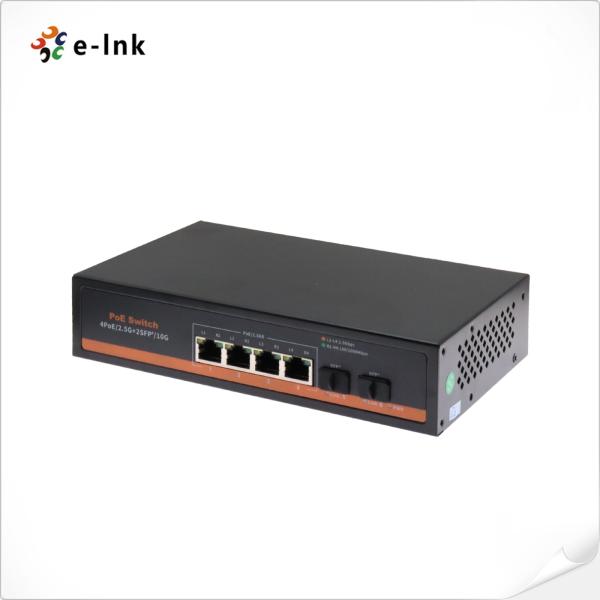

4x2.5Gbps PoE Ports + 2 x10G SFP+ Fiber Ports PoE Switch
4x2.5Gbps PoE Ports + 2 x10G SFP+ Fiber Ports PoE Switch
4x2.5Gbps PoE Ports + 2 x10G SFP+ Fiber Ports PoE Switch
4x2.5Gbps PoE Ports + 2 x10G SFP+ Fiber Ports PoE Switch
4x2.5Gbps PoE Ports + 2 x10G SFP+ Fiber Ports PoE Switch
4x2.5Gbps PoE Ports + 2 x10G SFP+ Fiber Ports PoE Switch
4x2.5Gbps PoE Ports + 2 x10G SFP+ Fiber Ports PoE Switch
4x2.5Gbps PoE Ports + 2 x10G SFP+ Fiber Ports PoE Switch
Specifications
Brand Name :
E-link
Model Number :
LNK-2.5G-204P
Certification :
CE, RoHS and FCC
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Operating Temperature: :
-10℃ to 55℃
Power consumption :
5W
Weight :
0.7KG
Dimensions (W x D x H) :
200 x 118 x 44mm
Description

4x2.5Gbps PoE Ports + 2 x10G SFP+ Fiber Ports PoE Switch

Product Advantages

· 4 x 2.5Gbps PoE Ports

· IEEE802.3af/af Standards

· 2 x 10G SFP+ Fiber Ports

Overview

LNK-2.5G-204P Series PoE Switch provides 4 x 2.5G PoE ports and 2 x 10Gigabit SFP+ optical ports, which can directly enjoy 2.5G high-speed transmission when connected with various 2.5G devices. It adopts the store-and-forward mechanism and integrates high-capacity cache internally, effectively reducing the data forwarding delay, and all ports can realize non-blocking line-speed forwarding.

Technical Indexes

Standards

IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3bz

PoE Ethernet Port

Connector: RJ45

Data rate: 100M/1G/2.5G

Cable: CAT6 or higher

Distance: ≤100 meter

Standards: IEEE802.3af/at

Power: Each port≤30W, all ports 75W Max

PoE Output: DC 52V±5%

PoE Power Pin: 1/2+,3/6-

Fiber Port

Connector: SFP+

Data rate: 10G

Wavelength: 850nm/1310nm/1490nm/1550nm

Fiber type: Single Mode 9/125μm,

Multi Mode 50/125μm,62.5/125μm

Distance: 550m ~ 100km

Backplane bandwidth

60Gbps

Forwarding method

10Base-tx: 14880pps/port;

100BASE-tx:148800pps/port

1000BASE-tx: 1488000pps/port

10000BASE-tx: 14880000pps/port

MAC address table

4K

Port function

power supply priority mechanism, fast and forwarding, MAC automatic learning and aging IEEE802.3X Full Duplex Flow Control and Backpressure Half Duplex Flow Control

Packet forwarding rate

44.64Mpps

Power

110-240V AC

Power consumption

5W

Operation Temperature

-10℃ to 55℃

Storage Temperature

-40℃ to 85℃

Relative Humidity

10% to 90% (non-condensation)

Size

200 x 118 x 44mm

Weight

0.7KG

Material

Metal


Ordering Information


Model

Description

LNK-2.5G-204P

4x2.5Gbps PoE Ports + 2 x10G SFP+ Fiber Ports PoE Switch
