Mini-type HD-SDI to Fiber Converter with Tally & Reverse RS485

Model:LNK-MHD-1V

Overview

LNK-MHD-1V Series Mini-type HD-SDI Fiber Converter supports 1-channel HD-SDI Video (audio embedded)

& Tally & Reverse RS485 signal transmitted via fiber optical cable, monitor the signal locally over a HD-SDI

loop output. E-link HD-SDI Video over Fiber Converters includes one transmitter and one receiver for HD-SDI

signal.

Features

► Each channel includes 8-channel audio embedded;

► Automatic cable equalization, used for all rate below 1.5 Gb/s (Belden 1694A);

► Automatic reclocking 270Mbit/s - 1.48Gbit/s

► Directly compatible with SDI camera systems

► Long transmission capability up to 80 km

► Hot swap and hot plug;

► Handle all Pathological patterns, fully digital non-compression broadcast level transmission;

► LED Status Indication to monitor the working conditions;

► Super optic dynamic range and free of adjustment;

► 1470~1610nm CWDM wavelengths optional;

►industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;

Technical Indexes

Fiber Optical interface
Fiber interface Simplex LC
Transmission distance 550m-20Km
Wavelength 1310nm/1550nm
Video
Video interface BNC
Video input/output impedance 75Ω
Video input/output voltage Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate Max 1.48Gb/s
Differential gain (10%～90% APL) <1%
SDI format support 625/25 PAL
525/29.97 NTSC, 525/23.98 NTSC
720p50, 720p59.94
1080i 23/24/30/50/59.94
Video SDI standard 270Mbps (SD-SDI)
1.485Gbps (HD-SDI)
Data
Physical interface Industrial standard screw terminal
Data type Tally & Reverse RS485
Frequency/Rate support

Max. 115200bps for RS422

Max. 57600bps for RS485
BER <10ˉ9
Electrical
Power adaptor DC 5V
Power consumption <5W
LED Indicator
SDI SDI video

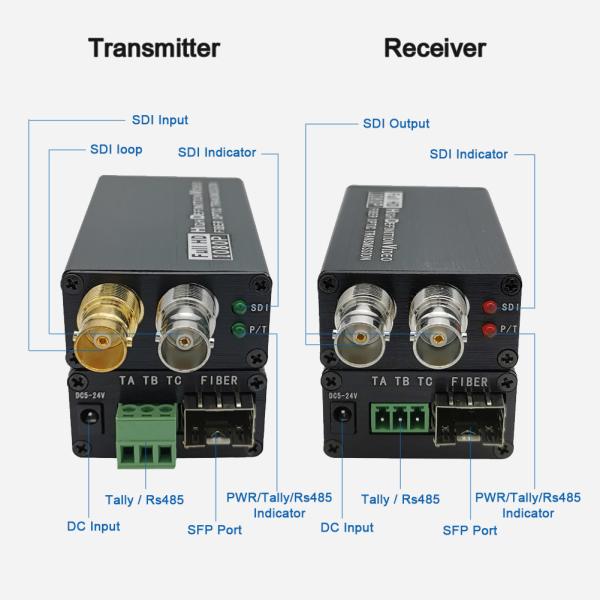

P/T Power Supply
Mechanical
Dimensions (LxWxH)

73 x 44 x 17 mm (TX)

73 x 44 x 17 mm (RX)

185 x 132 x 100 mm (Package)
Weight

75g (TX)

75g (RX)

450g (Package)
Casing Aluminum Case
Mounting Options Desktop
Environmental
Working Temperature -20℃～+70℃
Storage Temperature -40℃～+80℃
Working Humidity 0~95%
MTBF ≥100000 hours

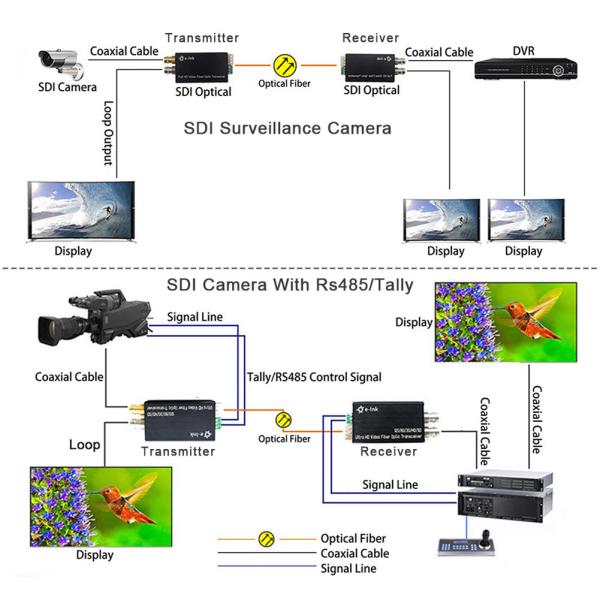

Application

Mini-type HD-SDI to Fiber Converter with Tally & Reverse RS485

Ordering Information

Model Description
LNK-MHD-1V-MM Mini-type HD-SDI to Fiber Converter with Tally & Reverse RS485 and loop out, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-MHD-1V-20 Mini-type HD-SDI to Fiber Converter with Tally & Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
LNK-MHD-1V-40 Mini-type HD-SDI to Fiber Converter with Tally & Reverse RS485 and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs
