Specifications
Brand Name :
E-link
Model Number :
HDMI wireless extender
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Operating temperature :
-15℃-55℃
Adaptation voltage :
Input: AC110V-220V, 50/60HZ, Output: DC12V/2A
Dimension :
Transmitter: 110mmX77mmX25mm, Antenna length: 108mm Weight: 187g Receiver: 110mmX77mmX25mm, Antenna length: 108mm Weight: 182g
Description

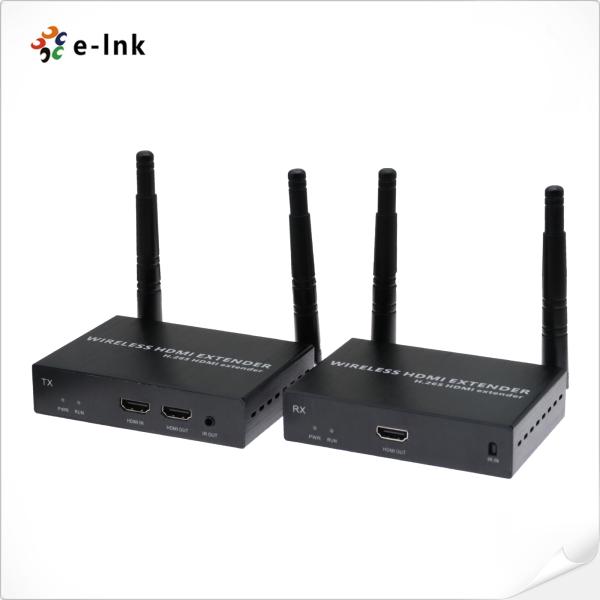

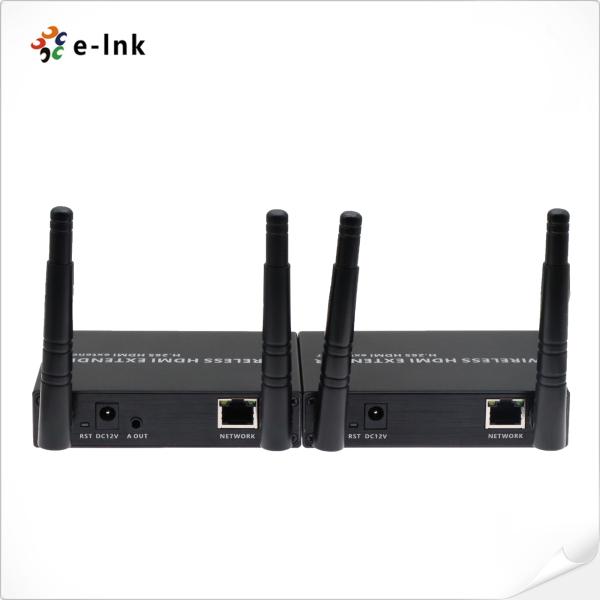

Wireless HDMI Extender

Technical Indexes

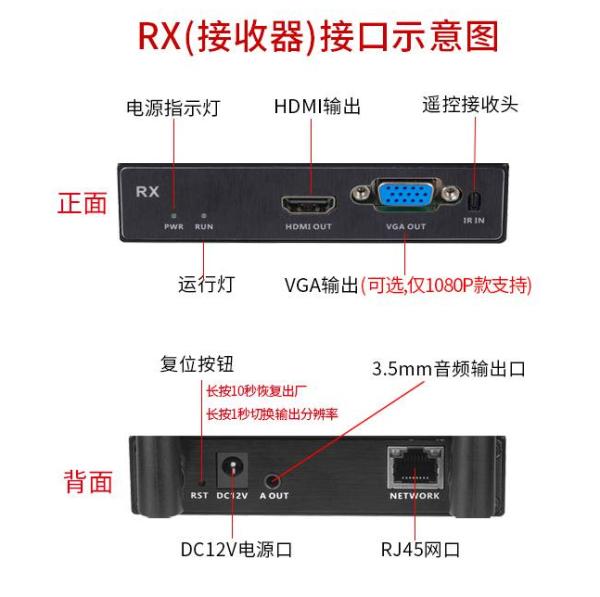

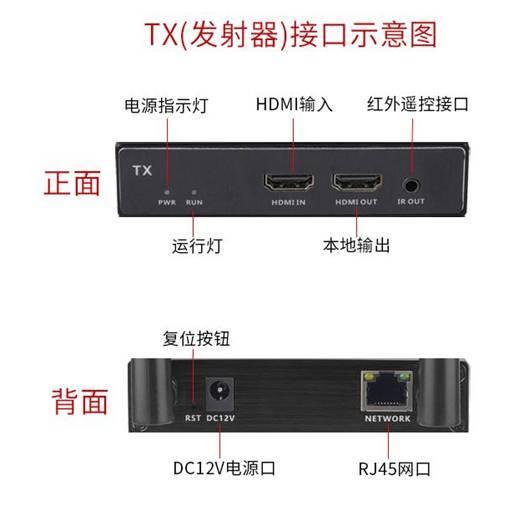

Video interface and parameters

Input signals

TX transmitter: 1 HDMI input

RX Receiver: 1 IR input

RX Receiver: 1 USB keypad input (optional)

RX Receiver: 1 x USB mouse input (optional)

Output signals

RX Receiver: 1 HDMI output

RX Receiver: 1 x 3.5mm linear audio output

RX Receiver: 1 VGA output (optional, only 1080P models support VGA output)

TX transmitter: 1 HDMI output

TX transmitter: 1 IR output

Transmission distance

0-220m (open, barrier-free)

Video input/output interface

HDMI

HDMI version

1.4

Video encoding

H.265

HDMI resolution

Support up to 4K (3840x2160@30HZ), 1080P (1920x1080@60HZ) compatible and below resolution image transmission (1366x768 resolution is not supported)

Infrared remote control performance and interface

Remote control interface

TX transmitter: 3.5mm connector x1

Remote control interface signal

IR control signal (Bluetooth is not supported)

Wireless

Frequency

5G/5.8GHZ

Transmitter / Receiver antennas

External

General

Dimension

Transmitter: 110mmX77mmX25mm, Antenna length: 108mm Weight: 187g

Receiver: 110mmX77mmX25mm, Antenna length: 108mm Weight: 182g

Package size

194mmX116mmX116mm

Housing

Aluminum

Color

Black

Gross Weight

670g

Power

Adaptation voltage

Input: AC110V-220V, 50/60HZ

Output voltage

Output: DC12V/2A

Transmitter power consumption

≤3.6W

Receiver power consumption

≤3.6W

Operating environment

Operating temperature

-15℃-55℃

Storage temperature

-40℃-60℃

Humidity

0-95% (non-condensing)

Overview

This HDMI wireless extender, which supports up to 4K@30HZ high-definition audio and video synchronous transmission, KVM keyboard and mouse (optional) and 3.5mm extended audio output. The 1080P model supports simultaneous output of HDMI and VGA (optional).

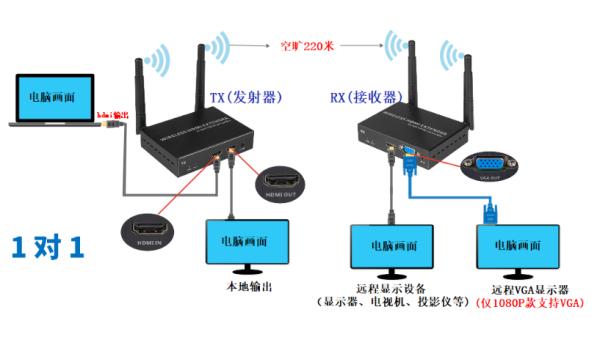

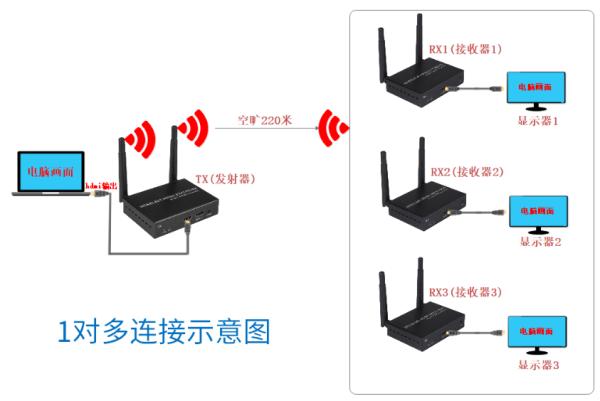

Application
Wireless HDMI Extender
Ordering Information

Model

Description

LNK-NIC-10GE

PCIE x4 Single-port RJ45 10G Ethernet Network Adapter
