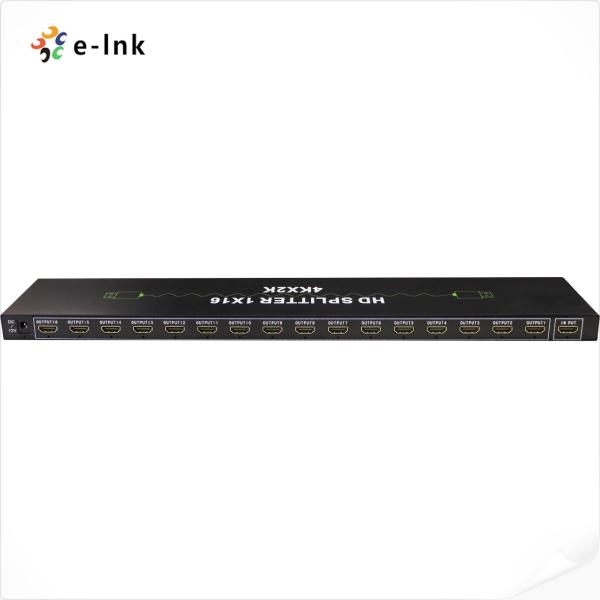

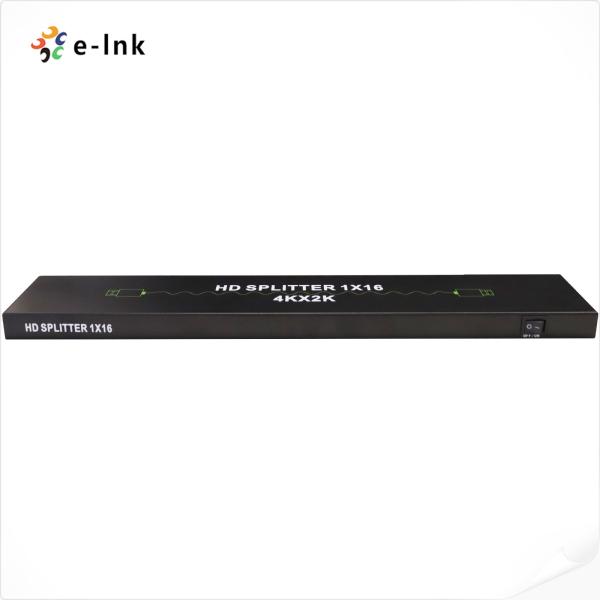

4K HDMI Splitter 1x16
4K HDMI Splitter 1x16
4K HDMI Splitter 1x16
4K HDMI Splitter 1x16
Specifications
Brand Name :
E-link
Model Number :
HDMI Splitter
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
HDMI version :
HDMI 1.4b
Support video color format :
deep color 8/10/12bit
Size :
460x90x22mm
Weight :
974g
Operating Temperature range :
-15 to +55℃
Description

4K HDMI Splitter 1x16

Features

► Support HDMI 1.4b

► Support 3D video format

► Resolution up to 3840x2160/30Hz

► Support 3.2Gbps data rate for TMDS clock up to 320MHz

► Support deep color 8/10/12bit

► support AWG26 HDMI standard cable:

► Support displaying single source, multi-output high-definition signal source from DVD player A / V receiver, set-top box

► DC 12V power supply

Technical Indexes


HDMI version

HDMI 1.4b

HDMI resolution

up to 3840*2160/30Hz

Support video color format

deep color 8/10/12bit

Support audio format

DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth

320MHz

Max transmission bandwidth

3.2Gbps

Input cable distance

(1080p resolution) ≤15m,

(4K resolution)≤12m

AWG26 HDMI standard cable

Output cable distance

(1080p resolution) ≤20m

(4K resolution)≤15m

AWG26 HDMI standard cable

HDMI input

1

HDMI output

16

Power adapter format

Input: AC (50HZ, 60HZ) 100V-240V;

Output: DC5V1A/5V2A/12V/3A

Operating Temperature range

(-15 to +55℃)

Operating Humidity range

5 to 90%RH (No Condensation)

Size

460x90x22mm

Weight

974g

Overview

The HDMI Splitter uses a single HDMI source, accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 16 HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. resolution up to 3840x2160/30Hz.

Application
4K HDMI Splitter 1x16
Ordering Information

Model

Description

LNK-HDMI-SP1x16

4K HDMI Splitter 1x16
