1/2/4/8Ch HDMI Fiber Optic with External Audio Extender
1/2/4/8Ch HDMI Fiber Optic with External Audio Extender
1/2/4/8Ch HDMI Fiber Optic with External Audio Extender
1/2/4/8Ch HDMI Fiber Optic with External Audio Extender
1/2/4/8Ch HDMI Fiber Optic with External Audio Extender
1/2/4/8Ch HDMI Fiber Optic with External Audio Extender
1/2/4/8Ch HDMI Fiber Optic with External Audio Extender
1/2/4/8Ch HDMI Fiber Optic with External Audio Extender
Specifications
Brand Name :
E-link
Model Number :
LNK-HDMI-100
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
$25-369
Payment Terms :
T/T,PayPal
Supply Ability :
500pcs/mouth
Delivery Time :
3-12working days
Packaging Details :
standard export package
Temperature :
-5°C to +75°C
Humidity :
5 to 90 % RH (no condensation)
Audio format :
44.1K,48K,96K,176K,192K
RS232 port :
3 ports industrial terminal
RS232 Baud rate :
Support 115200 and all below
Description

1/2/4/8Ch HDMI Fiber Optic with External Audio Extender

HDMI Fiber Extender Advantage

► Full digital, Uncompressed HD optical fiber transmission

► Support Full HD 1920*1200@60Hz

► The attenuation of optical module SFP low to -3db

► 1 channel analog audio(3.5mm)

► Support HDMI 1.3b Protocal

► Support KVM

Overview

The LNK-HDMI Series HDMI Optical transmitter and receiver adopts the uncompressed

digital HD video and high-speed digital optical fiber transmission technology advanced, It

can transfer signal source(computer signal source, VGA signal source high digital DVD/DVR)

to long distance terminal easily, with strong anti-interference performance, ensure the signal

completed and stable.

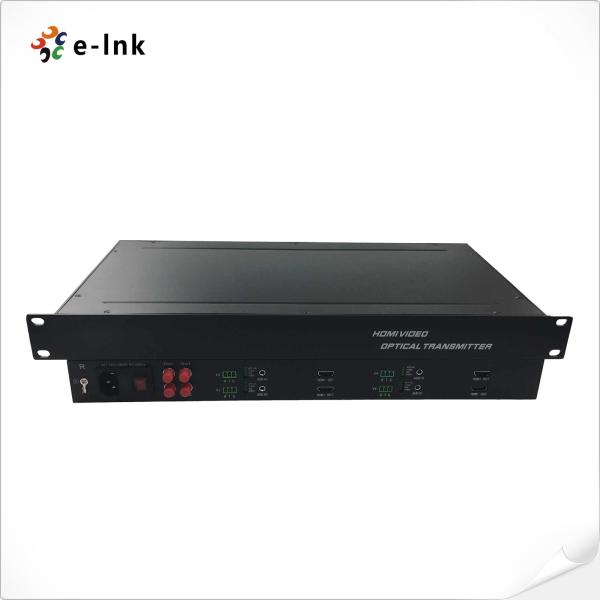

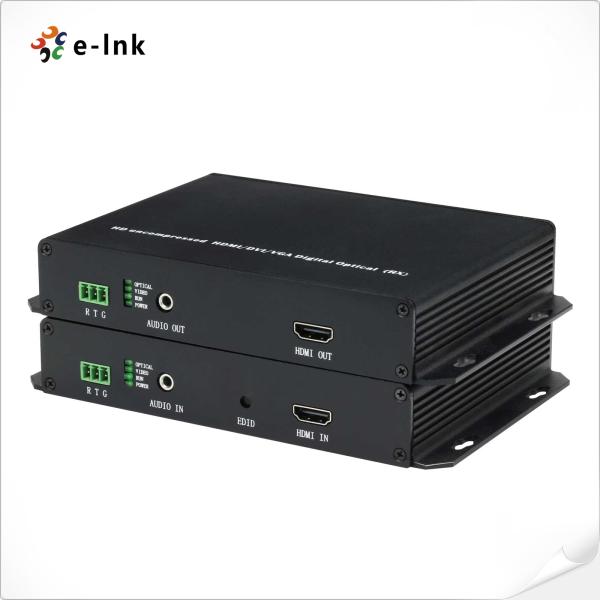

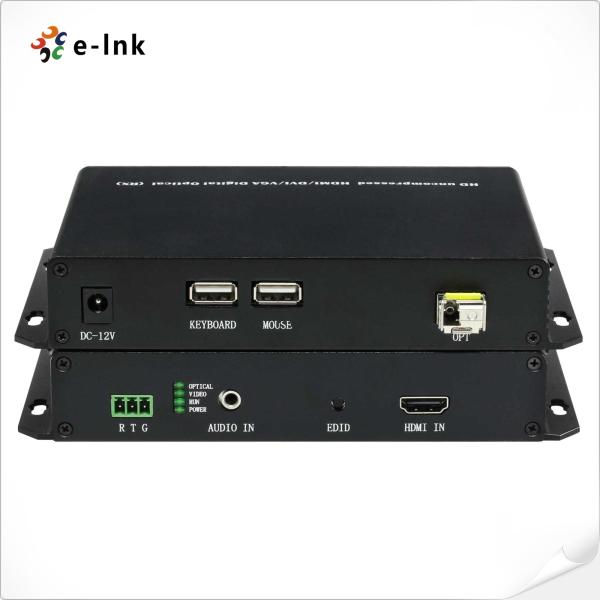

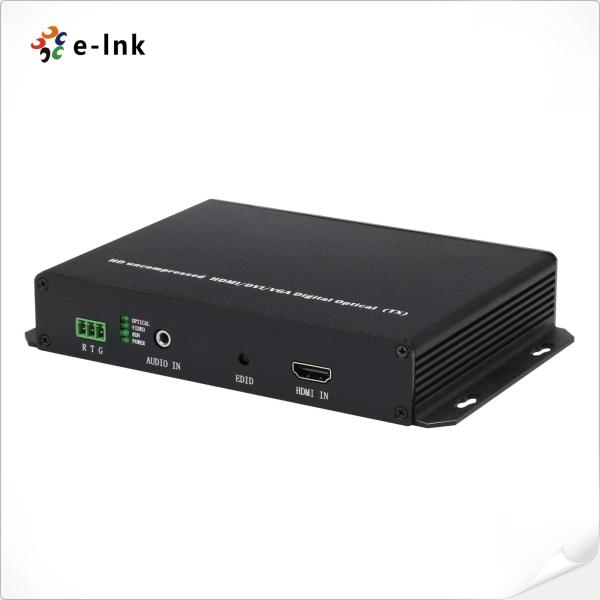

HDMI Fiber Extender Picture

1/2/4/8Ch HDMI Fiber Optic with External Audio Extender

Technical Indexes

Temperature

-5°C to +75°C

Humidity

5 to 90 % RH (no condensation)

The signal of Input and output

HDMI

Protocal

HDMI1.3b,HDCP1.2

Pixel band width

300MHz

Video format

800x600P60 1024x768P60

1280x800P60 1280x1024P60

1360x768P60 1366x768P60

1400x1050P60 1440x900P60

1600x900P60 1600x1200P60

1680x1050P60 1280x720P50

1280x720P60 1920x1080P24

1920x1080P25 1920x1080P30

1920x1080P50 1920x1080P60

1920x1080I60 1920x1080I50 1920x1200P60

The signa of Audio input and output

3.5MM Audio

Audio format

44.1K,48K,96K,176K,192K

RS232 port

3 ports industrial terminal

RS232 Baud rate

Support 115200 and all below

RS 232 Data bits

8 bits

KVM receiver port

A USB port

KVM transmitter port

B USB port

Fiber port

LC

Fiber module

SFP single mode

Fiber wavelength

1550/1310nm

Fiber band width

3Gbps

Application

1/2/4/8Ch HDMI Fiber Optic with External Audio Extender

Ordering Information

Item

Description

LNK-HDMI-100

HDMI to Fiber Converter: 1-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs

LNK-HDMI-200

HDMI to Fiber Converter: 2-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs

LNK-HDMI-400

HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs

LNK-HDMI-800

HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs
