Specifications
Brand Name :
E-link
Model Number :
LNK-4KH-1D1U1E1A1R
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Transmitter Interfaces :
1 x HDMI 2.0 Input (4K@60Hz) 1 x HDMI 2.0 Loop-out (4K@60Hz) 1 x Audio Input 1 x SFP 1 x RS232/RS485 2 x IR 1 x RJ45（10/100M, TCP/ IP） 1 x USB-B
Power supply :
DC 12V/1A
Operating Temperature :
-25℃ ~ +55℃
Dimension (LxWxH) :
148*115*28mm
The warranty :
The warranty 1-year warranty
Transmission distance :
MMF 330M or SMF 20/40/60/80KM
Description

Multi-functional 4K 60Hz HDMI KVM Fiber Extender
Advantages

► Support HDMI video resolution up to 4096*2160P@60Hz

► Supports video resolutions up to 4K2K@50/60Hz with 4:4:4 chromatic sampling

► Complies with HDMI 2.0b, HDCP 2.2, and DVI 1.0 standards

► Support HDMI video loop out

► Support KVM

► Support RS232 or RS485

► Support 10/100M TCP/IP

Technical Indexes

Parameter

Description

Transmitter Interfaces

Standards

1 x HDMI 2.0 Input (4K@60Hz)

1 x HDMI 2.0 Loop-out (4K@60Hz)

1 x Audio Input

1 x SFP

1 x RS232/RS485

2 x IR

1 x RJ45(10/100M, TCP/ IP)

1 x USB-B

Receiver Interfaces

Standards

2 x HDMI 2.0 Output (4K@60Hz)

1 x Audio Output

1 x SFP

1 × RS232/RS485

2 × IR

1 x RJ45(10/100M, TCP/ IP)

2 x USB-A

Supported Standards

HDMI

1.3,1.4,2.0

DVI

1.0

Audio

Interface

3.5mm Audio Interface

Signal type

Operate via DIP switch,

Up for HDMI Internal Audio

Down for External Audio

KVM

Interface

TX: 1 x USB-B

RX: 2 x USB-A

latency

Minimum latency

RS232/RS485

Interface

Industrial terminal

Signal direction

RS232 default,

RS485 optional

Baud rate

600~115200bps, 8bit, 1 stop bit, no check.

Data bits

8

Fiber

Interface

SFP Modules Included, LC or SC

Fiber type

MMF or SMF

Transmission distance

MMF 330M or SMF 20/40/60/80KM

Overview

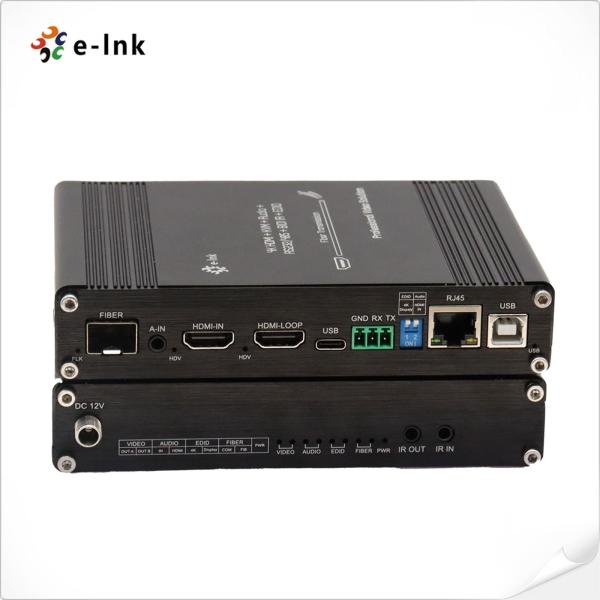

The LNK-4KH-1D1U1E1A1R Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 4K60Hz HDMI, and with KVM, Audio, RS232 or RS485, 10/100M TCP/IP, IR, EDID function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Application
Multi-functional 4K 60Hz HDMI KVM Fiber Extender
Ordering Information

Model

Description

LNK-4KH-1D1U1E1A1R

Multifunctional 4K60Hz HDMI Fiber Extender, with KVM, Audio, RS232 or RS485, 10/100M TCP/IP, IR, EDID function, MMF 330M or SMF 20/40/60/80KM, LC or SC.
