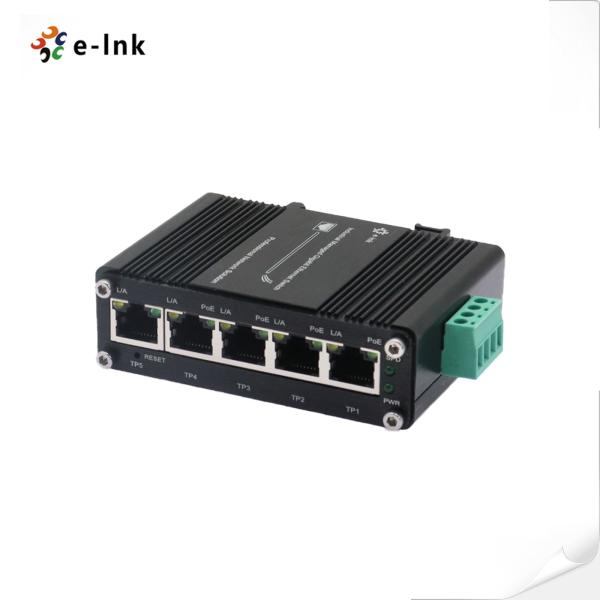

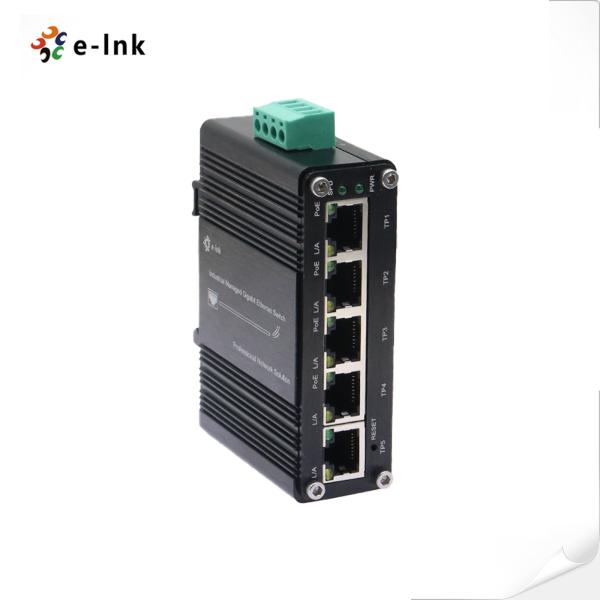

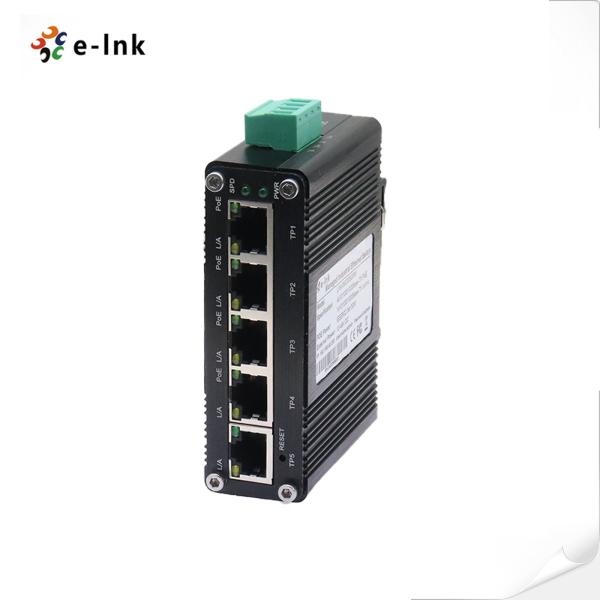

Mini Industrial Managed 4-Port 10/100/1000T 802.3at PoE 30W + 1-port 10/100/1000T Uplink Ethernet Switch
Mini Industrial Managed 4-Port 10/100/1000T 802.3at PoE 30W + 1-port 10/100/1000T Uplink Ethernet Switch
Mini Industrial Managed 4-Port 10/100/1000T 802.3at PoE 30W + 1-port 10/100/1000T Uplink Ethernet Switch
Mini Industrial Managed 4-Port 10/100/1000T 802.3at PoE 30W + 1-port 10/100/1000T Uplink Ethernet Switch
Mini Industrial Managed 4-Port 10/100/1000T 802.3at PoE 30W + 1-port 10/100/1000T Uplink Ethernet Switch
Mini Industrial Managed 4-Port 10/100/1000T 802.3at PoE 30W + 1-port 10/100/1000T Uplink Ethernet Switch
Mini Industrial Managed 4-Port 10/100/1000T 802.3at PoE 30W + 1-port 10/100/1000T Uplink Ethernet Switch
Mini Industrial Managed 4-Port 10/100/1000T 802.3at PoE 30W + 1-port 10/100/1000T Uplink Ethernet Switch
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC005GPM
Certification :
ISO9001, CE, FCC, RHOS
Place of Origin :
China
MOQ :
1 units
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
5000 units per month
Delivery Time :
3 working days
Packaging Details :
Managed PoE Switch Standard Package
Input Voltage :
12~48V DC Power Input
PoE Budget :
120 watt max
Connector :
5 port 10/100/1000Mbps RJ45 Ethernet
PoE Standard :
IEEE 802.3at
Management Control :
Simple web managed
Installation :
Din Rail & Wall mount
Description

Mini Industrial Managed 4 Port 10/100/1000T 802.3at PoE 30W + 1-port 10/100/1000T Uplink Ethernet Switch


Ethernet Switch Advantages

  • 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ (Port-1 to Port-4);
  • 12~48V DC wide range power input;
  • Supports WEB Management;
  • Up to 120-watt PoE budget (48V DC);
  • Up to 90-watt PoE budget (24V DC);
  • Up to 60-watt PoE budget (12V DC);

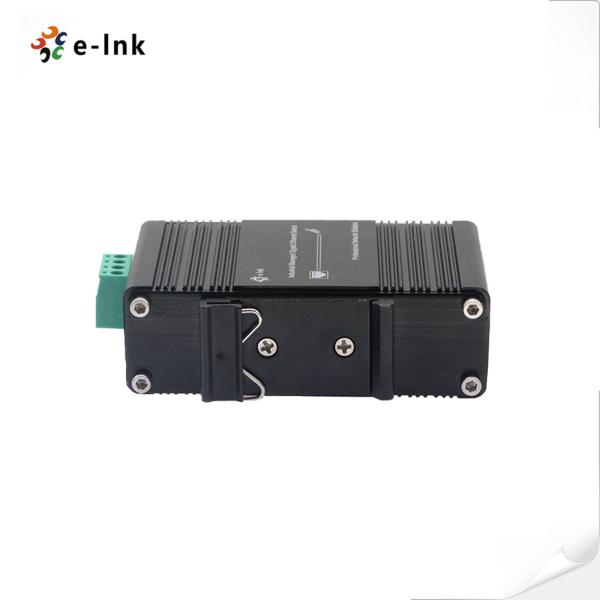

  • Supports DIN-Rail and Wall-mount installation


Managed Switch Overview

LNK-IMC005GPM Series is a Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch with 12~48V DC wide range power input. This managed industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.


Gigabit Managed Switch Technical Indexes

Ethernet

Standards:

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3at Power over Ethernet Plus PSE

IEEE 802.3af Power over Ethernet Plus

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer:

1Mbits

Packet Length:

10Kbytes

MAC Address Table:

8K

Switch Fabric:

10Gbps/non-blocking

Exchange Property

Backplane bandwidth: 20Gbps; Packet forwarding rate:14.88Mpps

Connector:

5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

4 ports with 802.3at PoE+ (Ports 1 to 4)

PoE (Power over Ethernet)

Standard:

IEEE802.3af/at

Port:

RJ45

Power Pin Assignment

1/2(+), 3/6(-) or 4/5(+), 7/8(-)

PoE Budget:

Up to 120-watt PoE budget (48VDC),

90-watt PoE budget (24VDC),

60-watt PoE budget (12VDC)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

12~48VDC (Terminal Block)

Power Consumption:

<125W (Non-PoE<6W)

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

Reset Button

Support

Dimensions (WxDxH):

95 x 70 x 29 mm

Weight:

0.25KG

Casing:

Aluminum Case

WEB Management Features

System Settings

Device Info; Account Settings; Restoring; Reboot; Upgrade

Port Management

Port Settings; Port Mirroring; Port Statistics; Rate Limit

VLAN Settings

802.1Q VLAN; PVID Settings; Hybrid Port

QOS Settings

Priority Selection; Scheduling Mode

Loop Detection

Support

Saving Settings

Get Configuration; Restore Configuration; Saving Configuration

Mini Industrial Managed 4-Port 10/100/1000T 802.3at PoE 30W + 1-port 10/100/1000T Uplink Ethernet Switch

Mini Industrial Managed 4-Port 10/100/1000T 802.3at PoE 30W + 1-port 10/100/1000T Uplink Ethernet Switch

Industrial Managed Switch Ordering Information

Model

Description

LNK-IMC005GPM

Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch

Mounting Options

Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

Power Supply is to be purchased separately

Recommend MeanWell NDR-120-48
