Specifications
Brand Name :
E-link
Model Number :
LNK-IMC103G-SFP-PD
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000pcs/Month
Delivery Time :
5-10 working days
Packaging Details :
Fiber Media Converter Standard Package
Port: :
4 x RJ45+1 x SFP 1000Base-X or 100Base-FX (auto detection)
Phoenix Connector :
Support 5-24VDC output (Max3A, Max60W)
Power Pin AssignmentDIP Switch Function: :
ON - Enabled OFF - Disabled
Operating Temperature: :
-40°C to 80°C (-40°F to 176°F)
Dimensions (WxDxH): :
95 x 88 x 46mm
Weight: :
0.25Kg
Description

Mini 3-Port 10/100/1000T + 1-Port 100/1000X SFP Hybrid Interface Ethernet Adaptor with PD and PoE Splitter Function


Overview

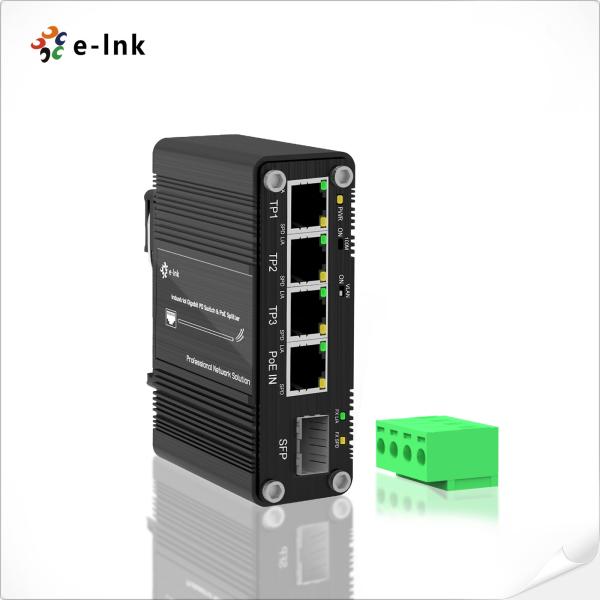

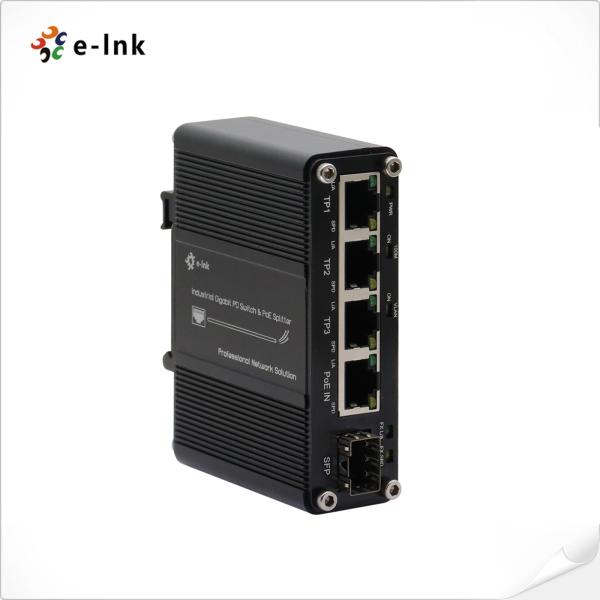

The LNK-IMC103G-SFP-PD product is a Hybrid Interface Ethernet Adaptor.

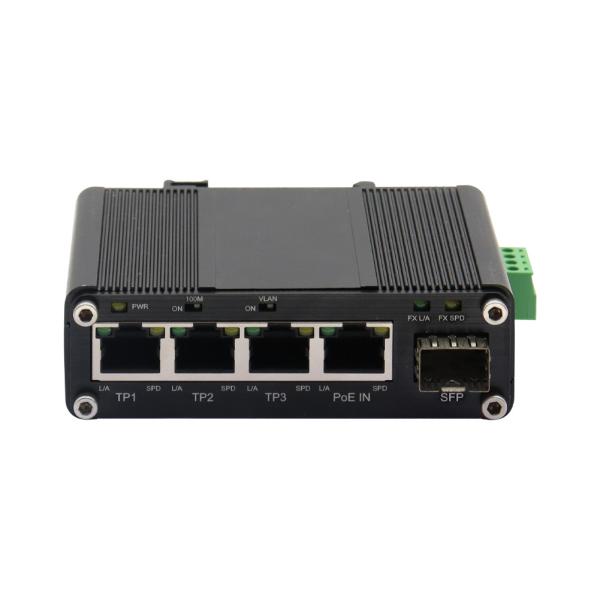

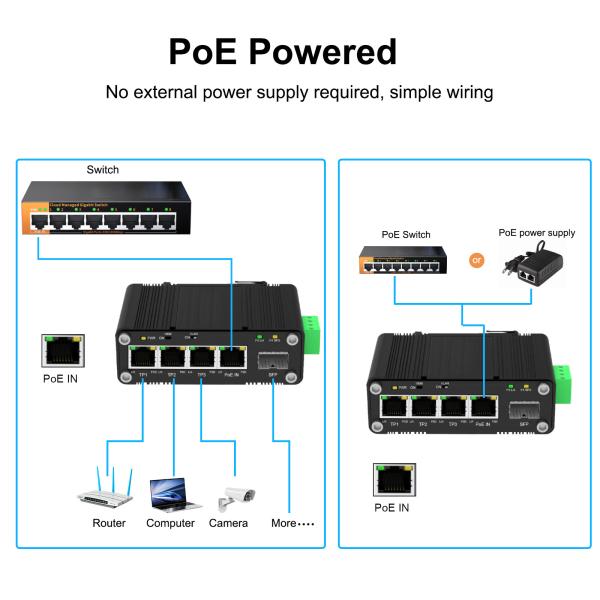

This adaptor is combined with four 10/100/1000M RJ-45 ports and one 100/1000M optical fiber SFP slot. The “PoE IN” RJ-45 port accepts PoE (Power over Ethernet) power input from the remote PSE ethernet switch or PoE injector, so the adaptor can work without additional power supply and support 5~24VDC output (Max 3A, Max 60W) function. The additional 100Base-FX/1000Base-X self-adaption SFP port can extend the RJ-45 port to long-distance optical fiber interface.

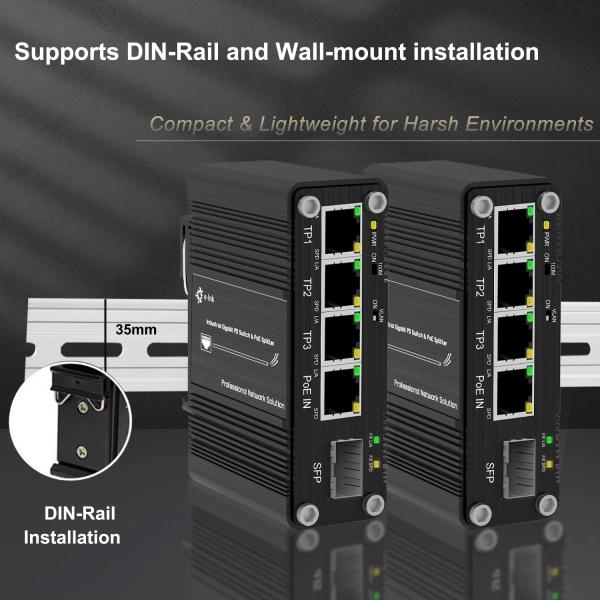

The LNK-IMC103G-SFP-PD product is suitable for 35mm DIN rail installation. An additional L-shaped bracket can be used to replace the DIN rail plate, so the user can install the adaptor on the wall or a flat surface.


Features

► 100/1000BASE-X SFP slots for SFP type auto detection

► 3x 10/100/1000M RJ-45 port

► 1x PoE PD type 10/100/1000M RJ-45 port

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Support 5~24VDC output (Max 3A, Max 60W)

► Supports DIN-Rail and Wall-mount installation

► -20°C to 50°C operating temperature



Specifications

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3at/bt Power over Ethernet

Interface

Connector:

4x RJ45

Optical Port:

1 x SFP 1000Base-X or 100Base-FX (auto detection)

Phoenix Connector

Support 5-24VDC output (Max3A, Max60W)

Electrical and Mechanical

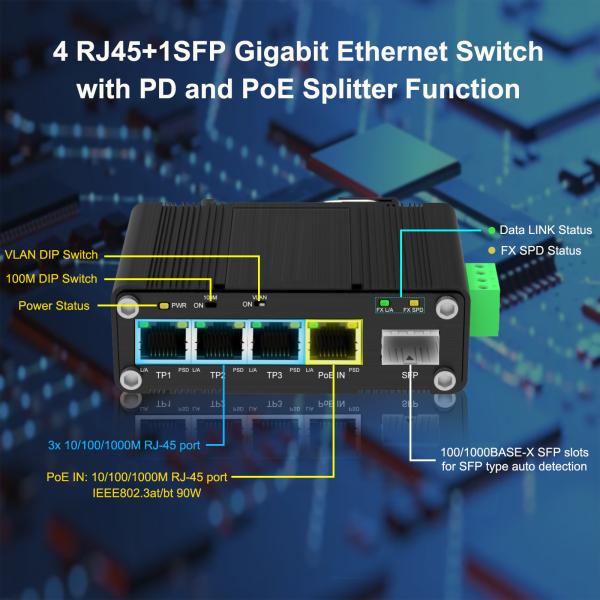

LED Indicators:

FX L/A:

Data LINK Status

FX SPD

FX SPD Status

PWR:

Power Status

100M/1000M:

Fiber LINK Status

DIP Switch Function:

100M DIP Switch

ON - Enabled OFF - Disabled

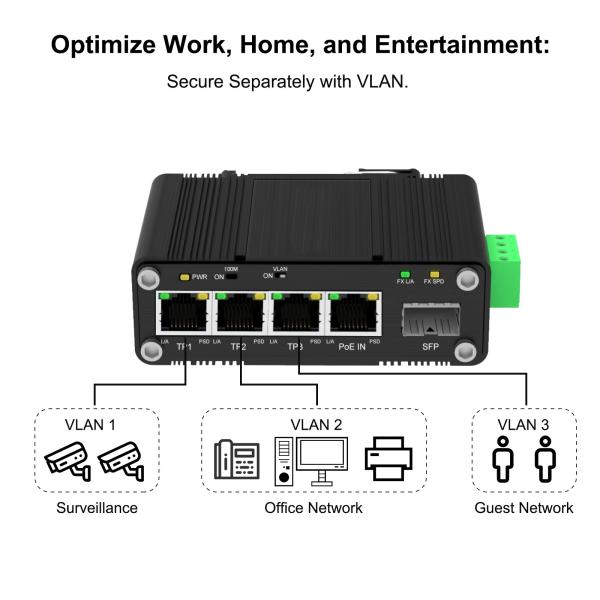

VLAN DIP Switch

ON - Enabled OFF - Disabled

Dimensions (WxDxH):

95 x 82 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

90% max, non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)


Mini 3-Port 10/100/1000T + 1-Port 100/1000X SFP Hybrid Interface Ethernet Adaptor with PD and PoE Splitter Function
Order Information

Model

Description

LNK-IMC103G-SFP-PD

Mini 3-Port 10/100/1000T + 1-Port 100/1000X SFP Hybrid Interface Ethernet Adaptor with PD and PoE Splitter Function

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
