Multifunctional 4K 60Hz HDMI KVM Fiber Extender with 10/100M Ethernet & RS232 / RS485 & IR
Multifunctional 4K 60Hz HDMI KVM Fiber Extender with 10/100M Ethernet & RS232 / RS485 & IR
Multifunctional 4K 60Hz HDMI KVM Fiber Extender with 10/100M Ethernet & RS232 / RS485 & IR
Multifunctional 4K 60Hz HDMI KVM Fiber Extender with 10/100M Ethernet & RS232 / RS485 & IR
Multifunctional 4K 60Hz HDMI KVM Fiber Extender with 10/100M Ethernet & RS232 / RS485 & IR
Multifunctional 4K 60Hz HDMI KVM Fiber Extender with 10/100M Ethernet & RS232 / RS485 & IR
Specifications
Brand Name :
E-link
Model Number :
LNK-4KH-1D1U1E1A1R
Certification :
ISO9001, CE, FCC. RHoS
Place of Origin :
China
MOQ :
1 pair
Price :
$25-369
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
5000 pairs per month
Delivery Time :
3~5 working days
Packaging Details :
HDMI Extender Standard Packages
Video Resolution :
4K 60Hz 4:4:4
Signal Support :
HDMI 2.0b, HDCP 2.2, and DVI 1.0
Ethernet :
10M/100M, TCP/ IP protocol
Audio :
3.5mm Audio Interface
Serial Data :
RS232 / RS485
Power Supply :
DC 12V 1A
Description
Multifunctional 4K 60Hz HDMI KVM Fiber Extender with Loop Out & IR & 10/100M Ethernet & RS232/RS485

HDMI Fiber Converter Advantages
  • Transmits HDMI video signal up to 20km over one fiber optic cable;
  • Support HDMI video resolution up to 4096*2160P@60Hz;
  • Supports video resolutions up to 4K2K@50/60Hz with 4:4:4 chroma sampling.
  • Complies with HDMI 2.0b, HDCP 2.2, and DVI 1.0 standards.


4K HDMI Fiber Extender Overview

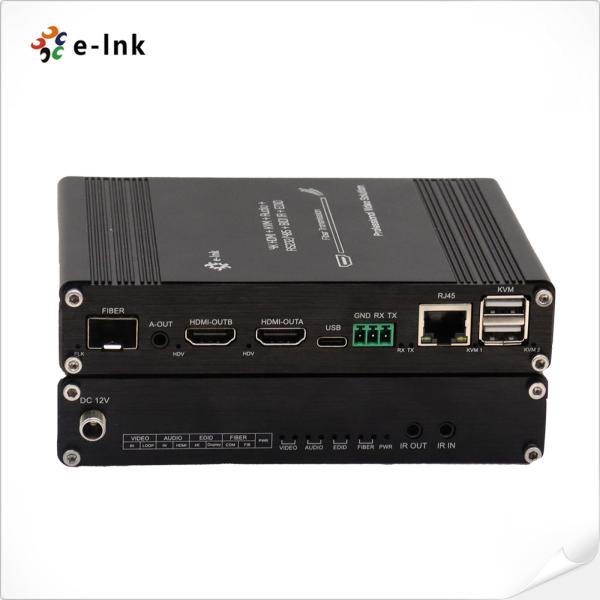

LNK-4KH-1D1U1E1A1R Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 4K60Hz HDMI, and with KVM, Audio, RS232 or RS485, 10/100M Ethernet, IR, EDID function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful securit.

Technical Indexes


Parameter

Description

Transmitter Interfaces

Standards

1 x HDMI 2.0 Input (4K@60Hz)

1 x HDMI 2.0 Loop-out (4K@60Hz)

1 x Audio Input

1 x SFP

1 x RS232/RS485

2 x 1R

1 x RJ45(10M/100M, TCP/ IP protocol)

1 x USB

Receiver Interfaces

Standards

2 x HDMI 2.0 Output (4K@60Hz)

1 x Audio Output

1 x SFP

1 × RS232/RS485

2 ×IR

1 x RJ45(10M/100M, TCP/ IP protocol)

2 x KVM

Video Resolution

HDMI

SMPTE:720p|1080p12160p

VESA:800x600|1024x768|1280x720|1280x800|

1280x960|1280x1024|1400x1050|1600x1200|

1920x10801920x1200|2048x1152|2560x1600|

3840x1080|3840x2160|4096x2160

Refresh Rate

23.98/24/25/29.97/30/50/59.94/60Hz

Supported Standards

HDMI

1.3,1.4,2.0

DVI

1.0

Audio

Interface

3.5mm Audio Interface

Signal type

Operate via DIP switch,

Up for External Audio

Down for HDMI

KVM

Interface

TX: 1 x USB-B

RX: 2 x USB-A

latency

Minimum latency

RS232/RS485

Interface

Industrial terminal

Signal direction

RS23 bidirectional default,

RS485 reverse optional

Baud rate

600~115200bps, 8bit, 1 stop bit, no check.

Data bits

8

Ethernet

Interface

RJ45

Data Rate

10/100Mbps

Fiber

Interface

SFP/LC connector

Fiber type

Single-mode single fiber

Wavelength

1270/1330nm

Transmission distance

20km

Other

Power supply

DC 12V/1A

Power dissipation

MAX 10W

Temperature

Operating: -25℃ ~ +55℃

Storage: -40℃ ~ +85℃

Humidity

20% ~ 90%

Weight

1kg

Dimension (LxWxH)

148*115*28mm

The warranty

1-year warranty

Work Time

7x24 Hours
Multifunctional 4K 60Hz HDMI KVM Fiber Extender with 10/100M Ethernet & RS232 / RS485 & IR
Multifunctional 4K 60Hz HDMI KVM Fiber Extender with 10/100M Ethernet & RS232 / RS485 & IR
HDMI Extender over Fiber Ordering Information

Model

Description

LNK-4KH-1D1U1E1A1R

Multifunctional 4K60Hz HDMI Fiber Extender, with KVM, Audio, RS232 or RS485, 10/100M Ethernet, IR, EDID function, SMF, 20KM, Including TX and RX, Used in pairs
