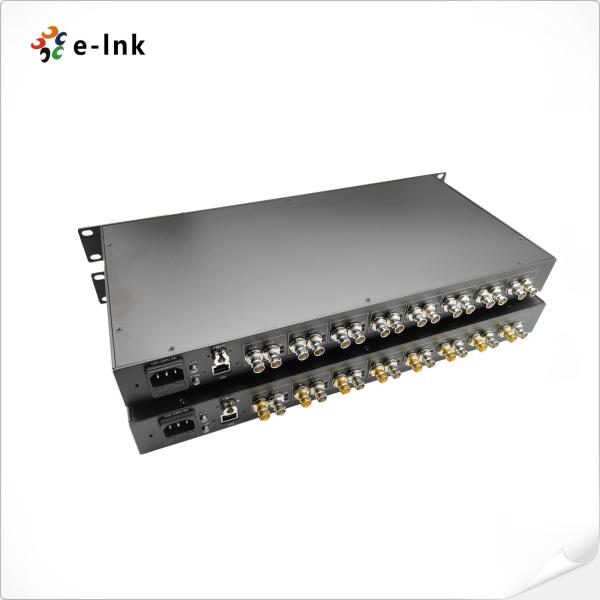

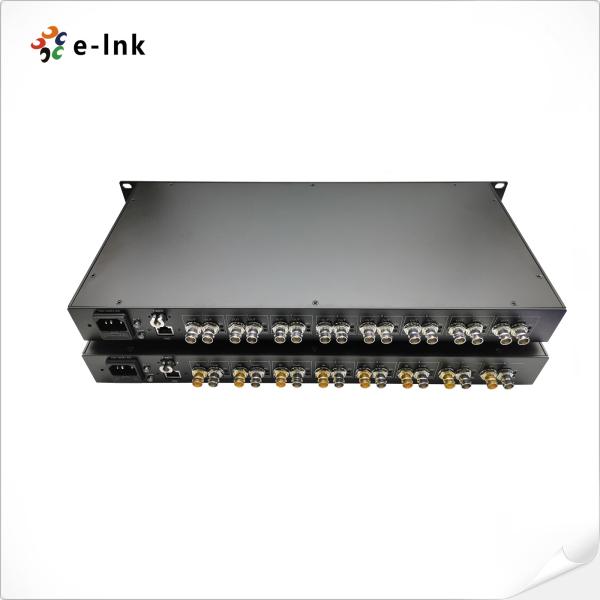

8Ch 3G-SDI + 1Ch 10G Ethernet over Fiber Extender
8Ch 3G-SDI + 1Ch 10G Ethernet over Fiber Extender
8Ch 3G-SDI + 1Ch 10G Ethernet over Fiber Extender
8Ch 3G-SDI + 1Ch 10G Ethernet over Fiber Extender
8Ch 3G-SDI + 1Ch 10G Ethernet over Fiber Extender
8Ch 3G-SDI + 1Ch 10G Ethernet over Fiber Extender
8Ch 3G-SDI + 1Ch 10G Ethernet over Fiber Extender
8Ch 3G-SDI + 1Ch 10G Ethernet over Fiber Extender
Specifications
Brand Name :
E-link
Model Number :
LNK-3G8V10GE
Certification :
CE, RoHS, FCC
Place of Origin :
China
MOQ :
1pair
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000pcs/month
Delivery Time :
5-12 working days
Packaging Details :
SDI Fiber Converter Standard Export Package
Key word :
SDI Fiber Converter
Weight :
8KG/pair
Working Temperature :
-20℃～+70℃
Mounting Options :
Rack mount
Casing :
Metal Case
Dimensions (LxWxH) :
483 x 270 x 45mm (19inch 1U)
Description

SDI Fiber Converter Advantages:

► 8Ch 3G-SDI/ASI video with embedded audio and 10G Ethernet over one fiber

► Compatible with HD-SDI, SD-SDI, DVB-AST

► Bandwidth range from 19.4Mb/s to 2.97Gb/s

► SMPTE 424M (2.97Gb/s) clock recovery

► Built-in CWDM system, SFP modules for each path

Technical Indexes

Fiber Optical interface
Fiber interface Simplex LC
Transmission distance 20Km
Wavelength 1310nm/1550nm
Video
Video interface BNC
Video input/output impedance 75Ω
Video input/output voltage Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate Max 3.2Gb/s
Differential gain (10%～90% APL) <1%
Video SDI standard 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
SMPTE425M3Gb/s Mapping(3G-SDI)
SMPTE424M 3Gb/s serial interface(3G-SDI)
Video Input 8 Channel with Loop Out on TX
Video Output 8 Channel with Loop Out on RX

Overview

E-link LNK-3G8V10GE 3G-SDI & Ethernet fiber extender provides transmission of one 3G-SDI channel with 10G Ethernet

IP channels over single mode optical cables. This SDI and IP to optical fiber converter enables high optical performance

and brilliant HD video processing in real time.

8Ch 3G-SDI + 1Ch 10G Ethernet over Fiber Extender

Ordering Information

Model Description
LNK-3G8V10GE 8Ch 3G-SDI Fiber Converter with 10G Ethernet and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
