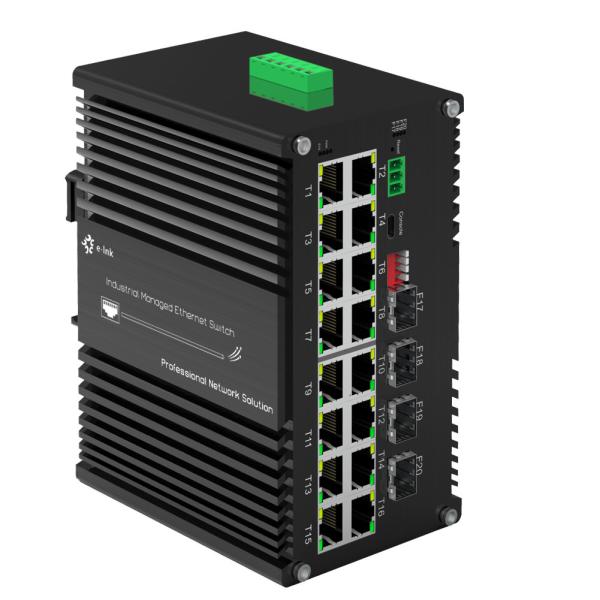

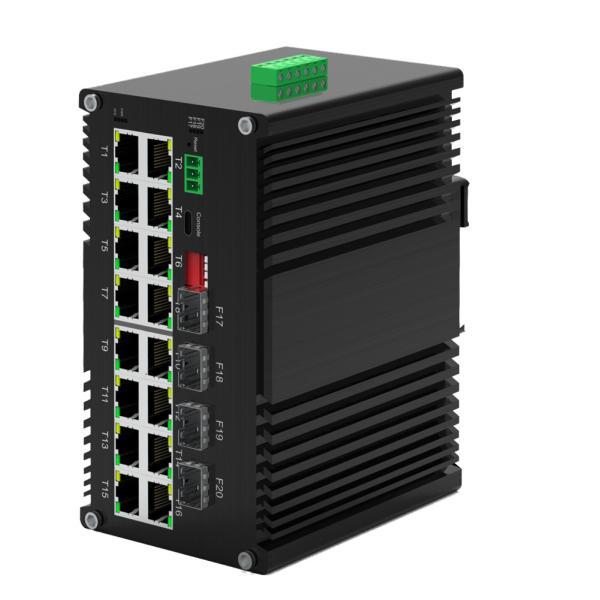

Industrial Managed PoE Ethernet Switch 16-Port 10/100/1000T + 4-Port 1000X SFP
Industrial Managed PoE Ethernet Switch 16-Port 10/100/1000T + 4-Port 1000X SFP
Industrial Managed PoE Ethernet Switch 16-Port 10/100/1000T + 4-Port 1000X SFP
Industrial Managed PoE Ethernet Switch 16-Port 10/100/1000T + 4-Port 1000X SFP
Specifications
Brand Name :
E-link
Model Number :
ETH-DIMC2416MP
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000pcs/month
Delivery Time :
5-12 working days
Packaging Details :
PoE Ethernet Switch Standard Export Package
keyword :
Industrial PoE Switch
Connector :
16 x RJ45
Optical Port :
4 x 1000Base-X SFP
Power Pin :
4/5(+), 7/8(-)
Operating Temperature :
-40°C to 80°C
Mounting Options :
DIN-Rail mount
Description

Industrial PoE Switch Advantages

► 10K Bytes Jumbo Frame

► IP40 Aluminum Case

► Support 16x10/100/1000Base-T + 4x1000Base-X SFP +

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► IEEE802.3af/at compliant

Technical Indexes

RS485 Serial Interface (Optional)
Physical interface Industrial standard 3-pin screw terminal
Data type 1Ch RS485 Bi-Direction
RS-485 signals Data+, Data-, GND
Serial port line distance (copper) 1000 meters
Baud rate 0 ~ 800kbps
PoE (Power over Ethernet)
Standard: IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Port: RJ45
PoE Budget: Up to 480-watt PoE budget
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power: 48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption: 8W Max.(PoE in Use<480W)

Overview

ETH-DIMC2416MP Series is the L2+ managed 16-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP hardened

Ethernet switch. The Switch has 16 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex

mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber.

Industrial Managed PoE Ethernet Switch 16-Port 10/100/1000T + 4-Port 1000X SFP

Ordering Information

Model Description
ETH-DIMC2416MP Industrial L2+ 16-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch
SFP Options ► SFP option. Please select your SFP on our SFP Options Page
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed
Power Options ► DIN-Rail Power Supply. Open Wire for Terminal Block.
► Power Supply is to be purchased separately.
