► Plug and play.
► 24-bit audio support.
► 2x1 Audio Channels
► Support power via IEEE802.3af PoE Injector

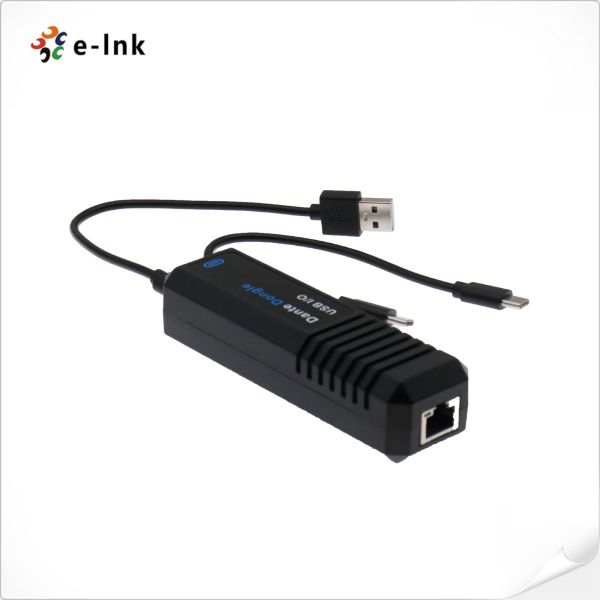

The LNK-DAN-D1 Converter can connects to your Dante network and supports 2x2 channels of bi-directional audio, allowing PCs and mobile devices to playout and receive audio with your Dante device using a USB-A/C connection.
| Port | |
| RJ45 Port | Network communication port. Green light on indicates system is ready Yellow light flash indicates link/data traffic. When click the "Recognize" button (an eye-shaped symbol) on the Dante controller, Green light will flash to identify the device. |
| USB-C Port | 1 x USB-C port, compatible with USB 2.0 devices. |
| Dante | |
| Power | 802.3af PoE |
| Sample Rate | 48 kHz |
| Bit Depth | 24 |
| Type | USB 2X2 |
| General | |
| Operation Temperature | -5 to +55℃ |
| Storage Temperature | -25 to +70℃ |
| Power Consumption | 9W(Max) |
| Dimension (W*H*D) | 115x 34 x 28 mm |
| Cable length | 20cm |
| Net Weight | 70g |
| Model | Description |
| LNK-DAN-D1 | Dante Dongle USB I/O, Digital Audio USB Bi-directional Converter, Including 1 x Type-C to Type-C cable and 1 x Type-C to Type-A cable |
