155Mbps 24 E1 Channels SDH Multiservice Access Platform with 1U Chassis and STM-1 SDH Multiplexer
155Mbps 24 E1 Channels SDH Multiservice Access Platform with 1U Chassis and STM-1 SDH Multiplexer
155Mbps 24 E1 Channels SDH Multiservice Access Platform with 1U Chassis and STM-1 SDH Multiplexer
155Mbps 24 E1 Channels SDH Multiservice Access Platform with 1U Chassis and STM-1 SDH Multiplexer
155Mbps 24 E1 Channels SDH Multiservice Access Platform with 1U Chassis and STM-1 SDH Multiplexer
155Mbps 24 E1 Channels SDH Multiservice Access Platform with 1U Chassis and STM-1 SDH Multiplexer
155Mbps 24 E1 Channels SDH Multiservice Access Platform with 1U Chassis and STM-1 SDH Multiplexer
155Mbps 24 E1 Channels SDH Multiservice Access Platform with 1U Chassis and STM-1 SDH Multiplexer
Specifications
Wavelength :
1310nm/1550nm
Sensitivity :
Better than -32dBm
Brand Name :
E-link
Model Number :
LNK-MSAP155- 8E16F
Certification :
ISO9001, CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
$2025-2100
Payment Terms :
T/T,L/C,Paypal,Alibaba
Supply Ability :
1000pcs/mouth
Delivery Time :
5-12working days
Packaging Details :
standard export package
Power supply :
220VAC/- 48VDC
Power consumption :
≤50W
Storage Temperature: :
-40°C ~ 80°C
Rate :
155Mbps±4.6ppm
E1 interface Rate :
2048Kbps
Operating Temperature :
-30°C ~ 50°C
Physical connector :
FC/SC
Channels :
Up to 24
Description
24E1 SDH Multiservice Access Platform
Key Advantages
  • Two STM-1 optical interfaces with 1+1 redundancy (automatic backup if one fails)
  • Two V.35/V.11 [N × 64K (N = 0 ~ 31)] channels
  • Integration of SDH, PCM, PDH and Ethernet technologies
  • Provides up to 4 physically isolated Ethernet networks with N × 2.048Mbps bandwidth

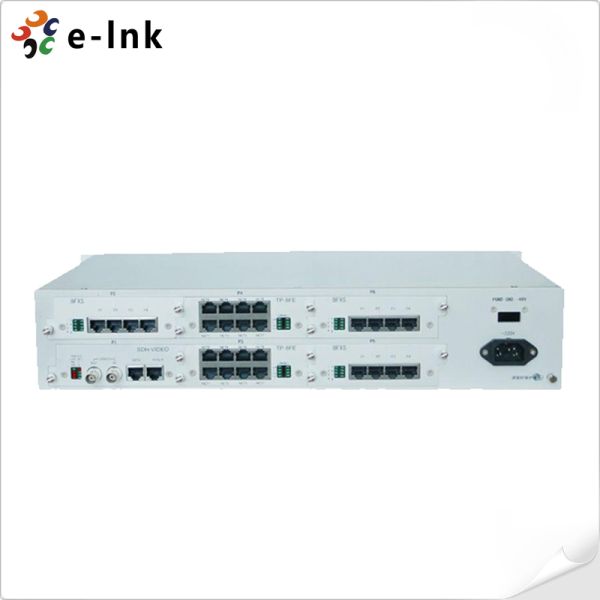

  • 6-slot configuration supporting 8E1, 8 FXO/FXS, 8 RS232/RS485/RS422, Ethernet, E&M, Magnet, and Hotline cards
  • Modular design with upgrade capability

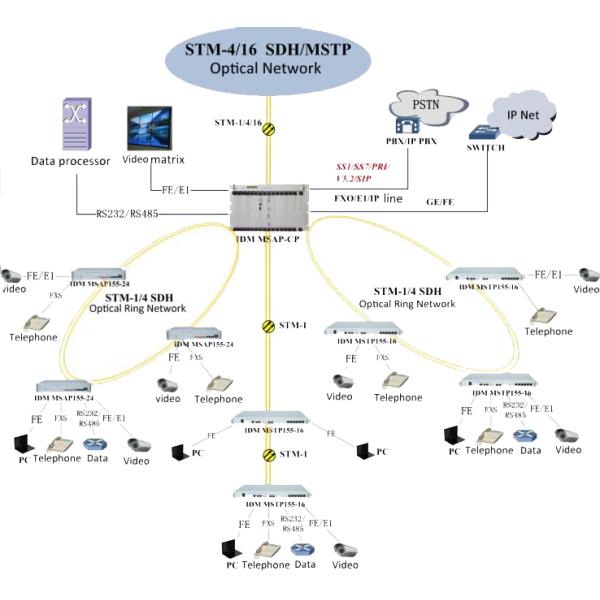

  • Supports point-to-point, chain-shaped, and ring network topologies
  • Compliant with ITU-T G.813 standards for timing accuracy
  • Faultless operation with online real-time monitoring

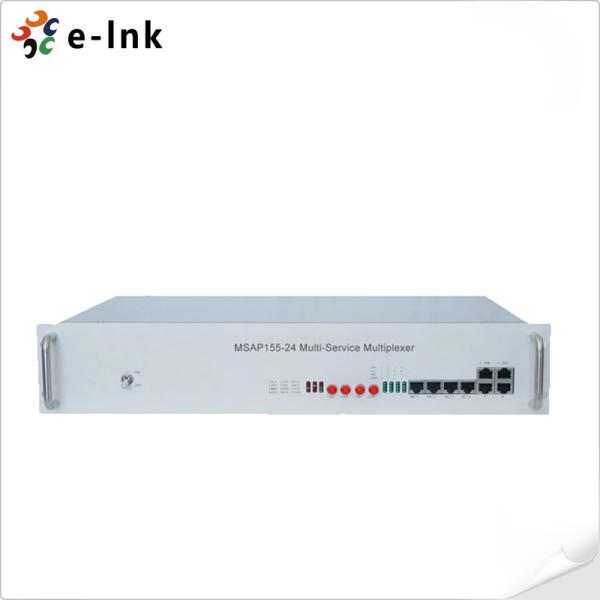

  • Standard 19-inch 1U chassis for easy installation
Product Overview

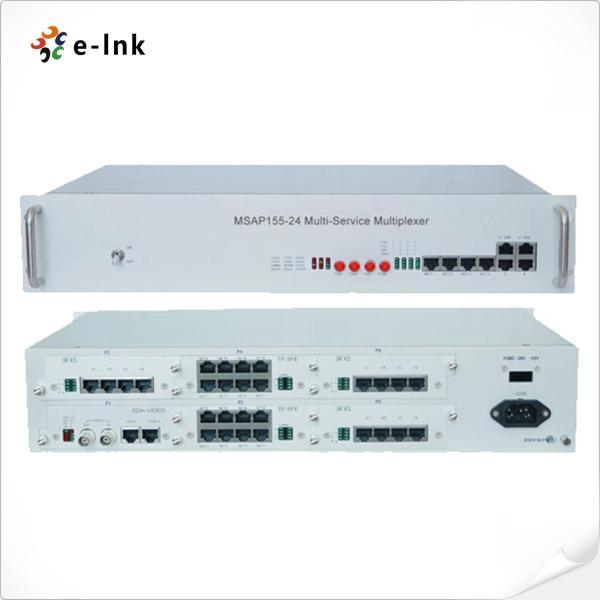

The LNK-MSAP155-24 SDH/MSAP Multiplexer is a newly-developed optical fiber transmission equipment by E-link based on SDH technology. This SDH multiplexer satisfies user needs for reliable fiber optical transmission and access services while providing enhanced reliability.

The LNK-MSAP155-24 SDH optical multiplexer can be directly connected to remote PDH multiplexers, optical modems, and multi-service multiplexers, making it suitable for various environments. As an STM-1 grade SDH multiplexer, it functions as compact MSAP equipment that integrates multiservice access, SDH transmission, and PDH optical access functions. The platform provides streamlined, faultless operation for equipment configuration, data collection, and real-time network performance monitoring.

Technical Specifications
Optical InterfaceRate: 155Mbps±4.6ppm | Fiber: Single/Multi-mode | Consumption: -15 ~ -8dBm | Wavelength: 1310nm/1550nm | Connector: FC/SC | Sensitivity: Better than -32dBm
E1 InterfaceRate: 2048Kbps | Code: HDB3 | Standard: ITU-T G.703 | Impedance: 75Ω/120Ω | Frame: PCM30/31 | Channels: Up to 24
Ethernet InterfaceRate: N × 2.048Mbps (N≤50) | Duplex: Full/Half auto-negotiation | Connector: RJ-45 | Standard: IEEE802.3
FXO/FXS InterfaceImpedance: 200Ω + 560Ω//0.1μF | Audio: 300Hz-3400Hz | Compression: Class A ITU G.711 | Loop current: 25mA
EM2/4 InterfaceAudio: 300Hz-3400Hz | Compression: Class A ITU G.711 | Echo loss: >18dB | Impedance: 600Ω balanced
V.24 InterfaceRate: asynchronous ≤9600bps and asynchronous 64kbps | Standard: CCITT V.28
V.35 InterfaceRate: N × 64Kbps (N=0~31) | Standard: ISO2593, ITU-T V.35 | Connector: RJ-45
PowerSupply: 220VAC/-48VDC | Consumption: ≤50W
Operating EnvironmentTemperature: -30°C to 50°C | Humidity: 5%-95% (no condensation)
Storage EnvironmentTemperature: -40°C to 80°C | Humidity: 5%-95% (no condensation)
