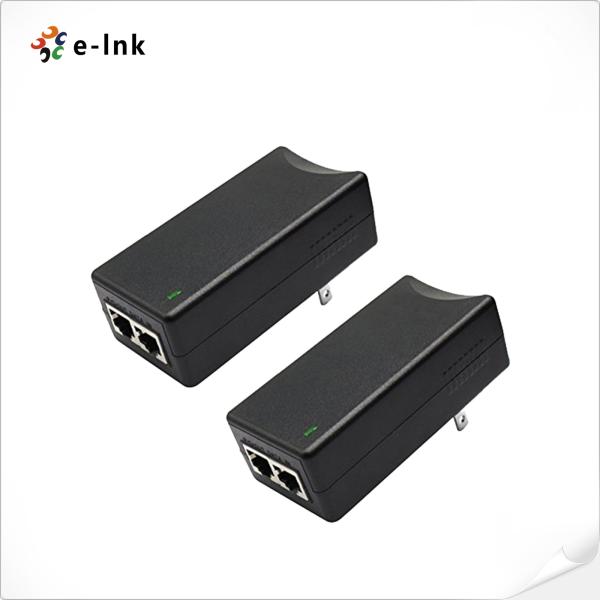

Wall Mount Active POE Injector Up to 15.4W/30W of PoE Power
Wall Mount Active POE Injector Up to 15.4W/30W of PoE Power
Specifications
Brand Name :
E-link
Model Number :
LNK-POE200W Series & LNK-POE300W Series
Certification :
ISO9001, CE, ROHS, FCC
Place of Origin :
China
MOQ :
1pcs
Price :
$4.9-299
Payment Terms :
T/T,Western Union,MoneyGram,PayPal
Supply Ability :
1000/Month
Delivery Time :
1-3 working days
Packaging Details :
HDMI Fiber PoE Injector Standard Carton Packaging
Data Rate :
10/100Mbps 10/100/1000Mbps
Input Power :
90-240V AC ,50-60Hz
Output Power :
15.4W Max IEEE802.3af 30W Max IEEE802.3at
Operating Temperature :
0 to +40°C,
LED Display :
YES
Dimension (LxWxH) :
100×48×32mm
Description

Wall Mount Active POE Injector


Model : LNK-POE200W Series & LNK-POE300W Series


Overview

The LNK-POE200W/LNK-POE300W series is a professional Wall Mount Active POE Injector
with an all-in-one integrated design—no separate power supply or independent injector is required,
making it a streamlined solution for small-to-medium network deployments. As a dedicated Wall
Mount Active POE Injector, it leverages active power management technology to deliver stable
power to PoE-powered devices (PDs), while its wall-mountable structure optimizes space utilization,
addressing the challenge of limited room in crowded equipment enclosures or small network cabinets.
​
This Wall Mount Active POE Injector fully complies with the IEEE 802.3af/at Ethernet power supply
standards, ensuring broad compatibility with common network devices such as wireless access points
(APs), 4MP network cameras, IP phones, and small-scale IoT sensors. It supports direct connection to
standard wall electrical outlets, eliminating the need for extra power cables or power distribution units
(PDUs)—simplifying on-site wiring and reducing deployment complexity. Its compact size (typically
150×80×40mm, depending on model) allows installation on walls, cabinet side panels, or under desktops,
avoiding the need for rack space and making it ideal for space-constrained environments like retail store
backrooms, office utility closets, or smart home control centers.
​
A core advantage of the Wall Mount Active POE Injector lies in its built-in multi-layer protection mechanisms:
it integrates over-voltage, over-current, and short-circuit protection to safeguard both the injector itself and
connected PDs. When an overload (e.g., excessive current draw from a faulty device) is detected, the injector
automatically shuts down power output; once the overload is cleared (e.g., faulty device disconnected), it
restores power supply automatically—ensuring 24/7 reliable operation without manual intervention.
​
By enabling power current to travel alongside network signals on a single Cat5e/Cat6 Ethernet cable, this Wall
Mount Active POE Injector eliminates the need to directly connect a power supply to each wireless LAN device
or terminal. The integration of power and data transmission not only reduces the number of required cables
(cutting material costs by 30% or more) but also minimizes on-site installation manpower—especially useful for
scenarios where wiring modifications are difficult. Whether used in small enterprise wireless networks, residential
security systems, or retail IoT deployments, the Wall Mount Active POE Injector combines space-saving design,
active power stability, and cost efficiency to deliver a practical PoE power supply solution.
​

Features

· Compact wall mount design

· Up to 15.4W/30W of PoE Power

· Fully IEEE802.3af/IEEE802.3at compliant

· No additional power cables required

· Built in protection circuits

· Supports 10/100M or 10/100/1000M LAN environment

· Plug & Play

· No configuration required

· Reduced Installation cost

· Safe and Reliable Power to WLAN Access Points

· Automatic Detection and Protection of Non–standard Ethernet Terminals


Technical Indexes

Parameter

Specifications

Features

• Conforms to IEEE802.3af standard RJ-45

• Conforms to IEEE802.3af standard RJ-45

• Data Input Interface RJ-45 10/100Base-TX/

• Data Input Interface RJ-45 10/100/1000Base-TX

Data Rate

10/100Mbps

10/100/1000Mbps

Input Power

90-240V AC ,50-60Hz

Output Power

15.4W Max IEEE802.3af

30W Max IEEE802.3at

Wiring

• Data provide over pairs 1/2(+) and 3/6(-)

• Power over spare pairs 4/5(+) and 7/8(-)

LED Display

YES

Operating Temperature

0 to +40°C,

Humidity

Max. 95% RH(non-condensing)

Dimension (LxWxH)

100×48×32mm

Weight

120g


Ordering information

Model

Decription

LNK-POE200W

Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3af 15.4W

LNK-POE200WT

Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3at 30W

LNK-POE300W

Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3af 15.4W

LNK-POE300WT

Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3at 30W


Application

Wall Mount Active POE Injector Up to 15.4W/30W of PoE Power
