Mini 4K / 30Hz HDMI over Single-Core Multimode Fiber Extender 500m Plug & Play
Mini 4K / 30Hz HDMI over Single-Core Multimode Fiber Extender 500m Plug & Play
Mini 4K / 30Hz HDMI over Single-Core Multimode Fiber Extender 500m Plug & Play
Mini 4K / 30Hz HDMI over Single-Core Multimode Fiber Extender 500m Plug & Play
Mini 4K / 30Hz HDMI over Single-Core Multimode Fiber Extender 500m Plug & Play
Mini 4K / 30Hz HDMI over Single-Core Multimode Fiber Extender 500m Plug & Play
Mini 4K / 30Hz HDMI over Single-Core Multimode Fiber Extender 500m Plug & Play
Mini 4K / 30Hz HDMI over Single-Core Multimode Fiber Extender 500m Plug & Play
Specifications
Brand Name :
E-link
Model Number :
LNK-108M
Certification :
Iso9001, CE, ROHS, FCC
Place of Origin :
China
MOQ :
1pair
Price :
$25-369
Payment Terms :
T/T,Western Union,MoneyGram,PayPal
Supply Ability :
1000pairs/Month
Delivery Time :
1-3 working days
Packaging Details :
HDMI Fiber Extender Standard Carton Packaging
Signal Support :
HDMI 1.4 HDMI format standard
Video Support :
4K@30Hz/1080p/1080i/720p
Transmission Rate :
10.2Gbps(3.4Gbps/CH)
Transmission Distance :
300m with OM3 fiber, 400m with OM4 fiber, 500m with OM5 fiber
Storage Temperature :
-40°C to + 85°C
Dimension (WxDxH) :
2.24 x 0.6 x 0.55 in (57x16x14mm)
Description

Mini 4K / 30Hz HDMI over Single-Core Multimode Fiber Extender 500m Plug & Play


Product Overview:

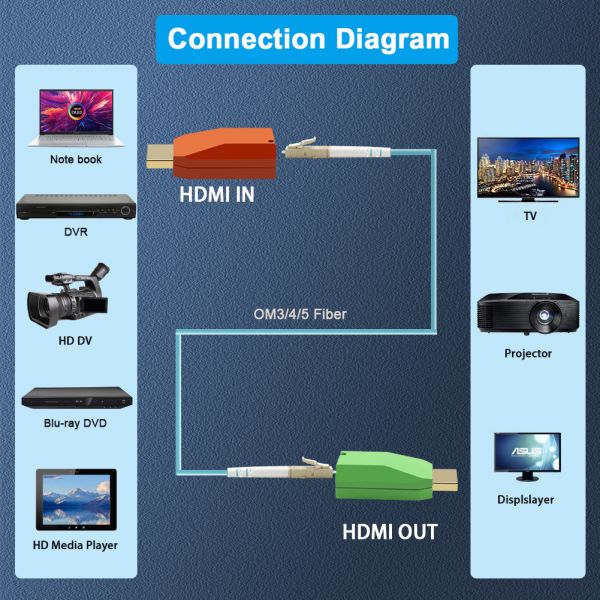

The LNK-108M is a compact and high-performance Mini 4K/30Hz HDMI Extender engineered for seamless single-core multimode fiber transmission. This plug-and-play solution integrates directly with HDMI-enabled devices, extending uncompressed 4Kx2K@30Hz video signals up to 500 meters using OM5 multimode fiber while maintaining zero latency and pristine signal quality. Leveraging 850nm optical technology, it converts HDMI 1.4 signals into a high-speed 10Gb/s serial data stream for reliable long-distance transmission.

Designed with enhanced anti-interference capabilities, this extender eliminates RFI/EMI emissions and ensures secure, stable performance without copper-related signal degradation. Compliant with RoHS and international lead-free standards, it is suitable for global markets, including Europe and China.

Ideal for professional, educational, and residential applications such as large-screen displays, conference systems, home theaters, digital signage, and medical imaging environments, the LNK-108M delivers exceptional reliability and ease of use in a miniaturized form factor.

Product Features:
