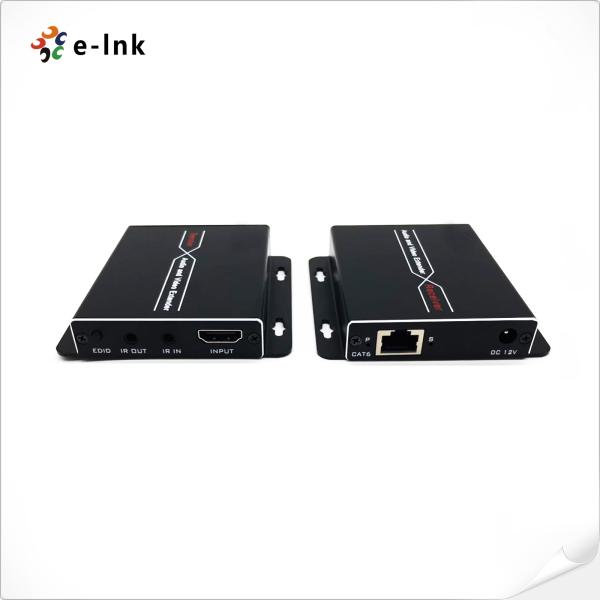

4K@30HZ HDMI Extender 120M With Loopout & Dual IR
4K@30HZ HDMI Extender 120M With Loopout & Dual IR
Specifications
Brand Name :
E-link
Model Number :
LNK-4KE-120 Series
Certification :
ISO9001, CE, ROHS, FCC
Place of Origin :
China
MOQ :
1 pair
Price :
$25-369
Payment Terms :
T/T,Western Union,MoneyGram,PayPal
Supply Ability :
1000/Month
Delivery Time :
3-5 working days
Packaging Details :
SDI Fiber Extender Standard Carton Packaging
Maximum pixel clock :
225MHz
Maximum data rate :
10.2Gbps
Interface :
RJ45 (IEEE - 568b connection)
Power supply :
The power adapter: DC 5V
Temperature :
Operating: -5℃ ~ +70℃
Dimension :
82*85*17mm
Description

4K@30HZ HDMI Extender 120M With Loopout & Dual IR

Model: LNK-4KE-120 Series


Overview

4K@30HZ HDMI Extender 120M With Loopout & Dual IR​

Features

4K@30HZ HDMI Extender 120M With Loopout & Dual IR


Technical Indexes

Parameter

Description

Video

Standards

HDMI1.4; HDCP 1.4

Maximum pixel clock

225MHz

Maximum data rate

10.2Gbps

Maximum resolution

3840*2160@30Hz (backward-compatible)

Connector

HDMI-A

Impedance

100Ω

USB

Interface

PC: Standard USB-A

K/M: Standard USB-A

USB Signal

HID Signal

UTP

Interface

RJ45 (IEEE - 568b connection)

Transmission distance

CAT6-120M

Other

Power supply

The power adapter: DC 5V

Power dissipation

MAX 4W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension

82*85*17mm

The warranty

1 year free warranty


Ordering Information

Part No

Description of product

LNK-4KE-120

4K@30HZ HDMI Extender 120M With Loopout & Dual IR


Application

4K@30HZ HDMI Extender 120M With Loopout & Dual IR
