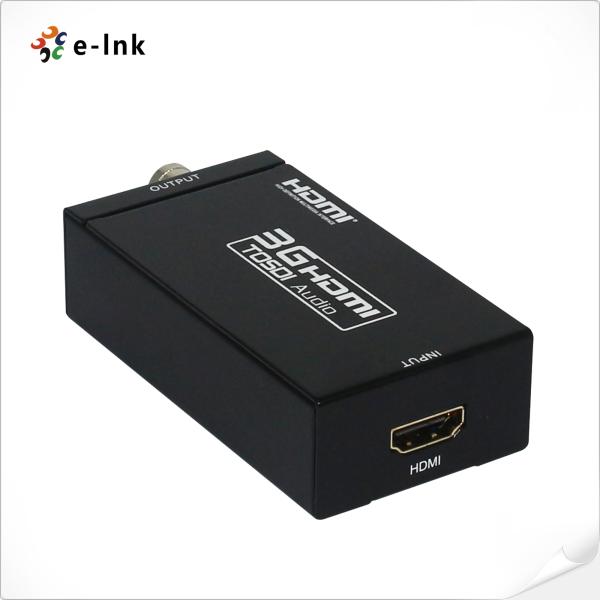

HDMI to 3G-SDI Converter Supports SDI output distance up to 100 meters (3G-SDI) 200 meters (HD-SDI) or 300 meters (SD-SDI)
HDMI to 3G-SDI Converter Supports SDI output distance up to 100 meters (3G-SDI) 200 meters (HD-SDI) or 300 meters (SD-SDI)
Specifications
Brand Name :
E-link
Model Number :
LNK-HSC110 Series
Certification :
ISO9001, CE, ROHS, FCC
Place of Origin :
China
MOQ :
1 pair
Price :
US$35-US$39
Payment Terms :
T/T,Western Union,MoneyGram,PayPal
Supply Ability :
1000/Month
Delivery Time :
3-5 working days
Packaging Details :
SDI Fiber Extender Standard Carton Packaging
Video amplifier bandwidth :
3.4 GHz Max.
SDI Transmission Rates :
2.970 Gbit/s and 2.970/1.001 Gbit/s
Power Adapter :
DC5-12V/1A
HDMI input/output connect :
HDMI type A 19Pin
Operating temperature range :
-40℃ to +70℃
Dimensions( L x W x H) :
80*41*25mm
Description

HDMI to 3G-SDI Converter


Model: LNK-HSC110 Series


Overview

The professional signal conversion device is a dedicated HDMI to 3G-SDI Converter, engineered to
enable seamless integration of HDMI sources into SDI-based professional video systems by converting
HDMI signals to SD-SDI, HD-SDI, and 3G-SDI formats for display on SDI monitors, projectors, or broadcast
equipment. As an HDMI to 3G-SDI Converter, it adheres to SMPTE (Society of Motion Picture and Television
Engineers) standards, ensuring reliable compatibility with broadcast-grade, live production, and monitoring
equipment.
​
This HDMI to 3G-SDI Converter supports a maximum data transfer rate of 2.970 Gbit/s (compliant with SM
PTE 424M), enabling transmission of high-resolution HDMI signals—including 1080p@60Hz—with zero quality
loss. A key feature is its integrated audio synchronization functionality: it automatically embeds HDMI audio
signals into the converted 3G-SDI stream, eliminating the need for separate audio cables and ensuring perfect
audio-visual synchronization—critical for professional applications like live broadcasting, video production, and
event streaming.
​
Equipped with advanced signal processing technology, the HDMI to 3G-SDI Converter incorporates signal re-
timing and equalization, which compensates for signal attenuation and ensures stable transmission over long
SDI cable runs (up to 100 meters for 3G-SDI). It features a standard HDMI 1.4b input interface (compatible with
most HDMI sources such as cameras, media players, and PCs) and BNC output interfaces for SDI signal distribution,
supporting both point-to-point connection and integration into larger SDI video networks.
​
For professionals in fields like broadcast television, live event production, and security monitoring, this HDMI
to 3G-SDI Converter simplifies workflow by enabling easy conversion of high-definition HDMI signals to 3G-SDI
for long-distance transmission. Whether connecting an HDMI camera to a broadcast switcher, or extending an
HDMI media player signal to remote SDI monitors in a control room, it delivers reliable performance. Its plug-and-
play design requires no software configuration or technical calibration, allowing quick deployment in time-sensitive
environments, while its rugged metal chassis provides durability and EMI (electromagnetic interference) shielding for
consistent operation in harsh studio or field conditions.​
​

Features

►SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.

►Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60,1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.

►480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)

►720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)

1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)

►Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)


Technical Indexes

Parameter

Specifications

Video amplifier bandwidth

3.4 GHz Max.

Video Intput

1 x HDMI

Video output

1 x BNC (SDI/HD-SDI/3G-SDI)

SDI Transmission Rates

2.970 Gbit/s and 2.970/1.001 Gbit/s

In/Output Resolution

480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60

1080p@23.97/24/25/29.97/30/50/59.94/60

HDMI input/output connect

HDMI type A 19Pin

Link Connector

BNC Shielded

Power Adapter

DC5-12V/1A

Operating temperature range

-40℃ to +70℃

Operating humidity range

5 to 90% RH (no condensation)

Shipping weight

0.15 KGS

Dimensions( L x W x H)

80*41*25mm


Application

HDMI to 3G-SDI Converter Supports SDI output distance up to 100 meters (3G-SDI) 200 meters (HD-SDI) or 300 meters (SD-SDI)
