Rack Mount PLC Splitter
Rack Mount PLC Splitter
Rack Mount PLC Splitter
Rack Mount PLC Splitter
Rack Mount PLC Splitter
Rack Mount PLC Splitter
Rack Mount PLC Splitter
Rack Mount PLC Splitter
Specifications
Brand Name :
E-link
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Carton Packaging
Operating Wavelength (nm) :
1260～1650
Min Return Loss (dB) :
55
Min Directivity (dB) :
55
Operating Temperature (℃) :
-40～85
Storage Temperature (℃) :
-40～85
Max Temperature Stability (dB) :
0.5
Description

Rack Mount PLC Splitter


Advantages

ü Low Insertion Loss (IL)

ü High isolation

ü Low Polarization Dependent Loss (PDL)

ü Compact design with adapters

ü Wide operating wavelength range

ü Good channel-to-channel uniformity

ü High reliability and high stability

ü Telcordia GR-1209-CORE-2001 compliant

ü Telcordia GR-1221-CORE-1999 compliant

ü YD/T-1272Q compliant

ü Q/CT-2295 compliant

ü RoHS-6 compliant (lead free)


Overview

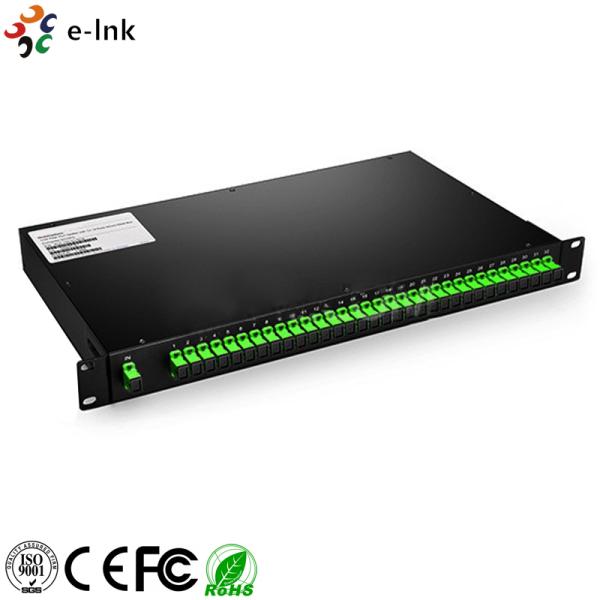

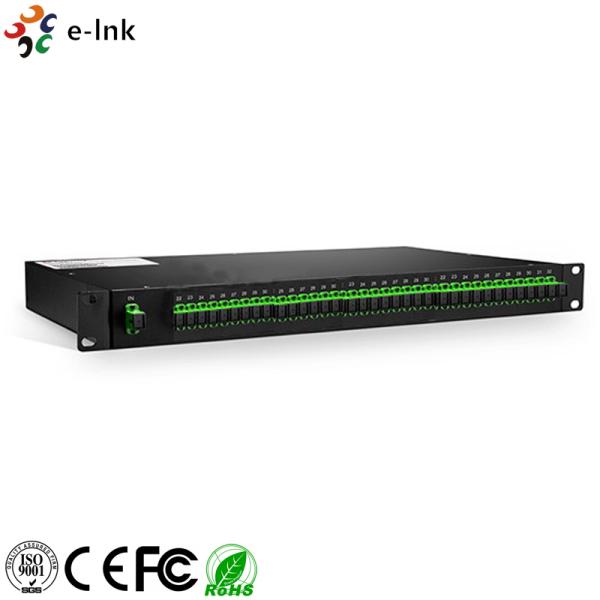

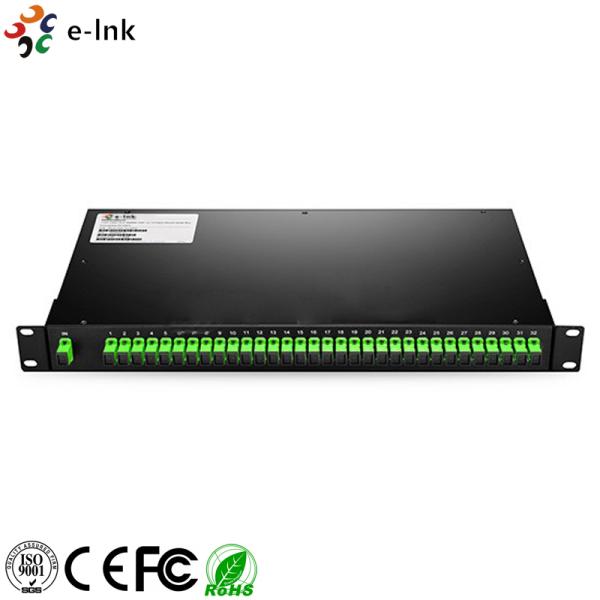

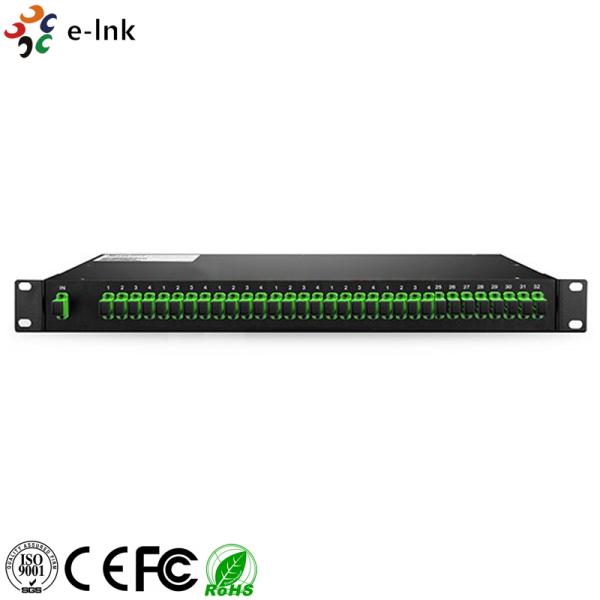

The E-link rack mount PLC (Planar Lightwave Circuit) splitter is a type of optical power management device with 19-inch 1U rack mount package fabricated using silica optical waveguide technology. It is widely used in PON/ODN networks to realize optical signal power splitting with 1xN or 2xN splitting ratio. E-link provides a series of customized rack mount PLC splitters to meet different requirements on port configuration, input connector, and output connector.


Technical Indexes

Parameters

1×N Rack Mount PLC Splitters

Operating Wavelength (nm)

1260～1650

Port Configuration

1×2

1×4

1×8

1×16

1×32

1×64

Max Insertion Loss (dB) (P/S Grade)

4.1/4.3

7.4/7.6

10.5/10.8

13.8/14.0

16.8/17.2

20.8/21.3

Max Loss Uniformity (dB)

0.6

0.7

0.8

1.2

1.5

2.0

Max PDL (dB)

0.2

0.25

0.35

Min Return Loss (dB)

55

Min Directivity (dB)

55

Max Wavelength Dependent Loss (dB)

0.5

0.8

1.0

Max Temperature Stability (dB)

0.5

Operating Temperature (℃)

-40～85

Storage Temperature (℃)

-40～85

Device Dimension L×W×H (mm)

483×150×45

Parameters

2×N Rack Mount PLC Splitters

Operating Wavelength (nm)

1260～1650

Port Configuration

2×2

2×4

2×8

2×16

2×32

2×64

Max Insertion Loss (dB)

4.5

7.9

11.3

14.7

17.8

21.3

Max Loss Uniformity (dB)

0.9

1.0

1.2

1.5

1.8

2.2

Max PDL (dB)

0.3

0.35

0.4

Min Return Loss (dB)

55

Min Directivity (dB)

55

Max Wavelength Dependent Loss (dB)

0.5

0.8

1.0

Max Temperature Stability (dB)

0.5

Operating Temperature (℃)

-40～85

Storage Temperature (℃)

-40～85

Device Dimension L×W×H (mm)

483×150×45


Ordering Information

LNK-xxx-19

-

x

x

Rack Mount PLC Splitter

Input Connector

Output Connector

xxx:

0=None

0=None

102=1×2

1=FC/UPC

1=FC/UPC

...

2=FC/APC

2=FC/APC

164=1×64

3=SC/UPC

3=SC/UPC

202=2×2

4=SC/APC

4=SC/APC

...

5=LC/UPC

5=LC/UPC

264=2×64

6=LC/APC

6=LC/APC


Application

ü FTTH systems

ü PON networks

ü Optical fiber sensing systems

ü Aerospace and military applications
