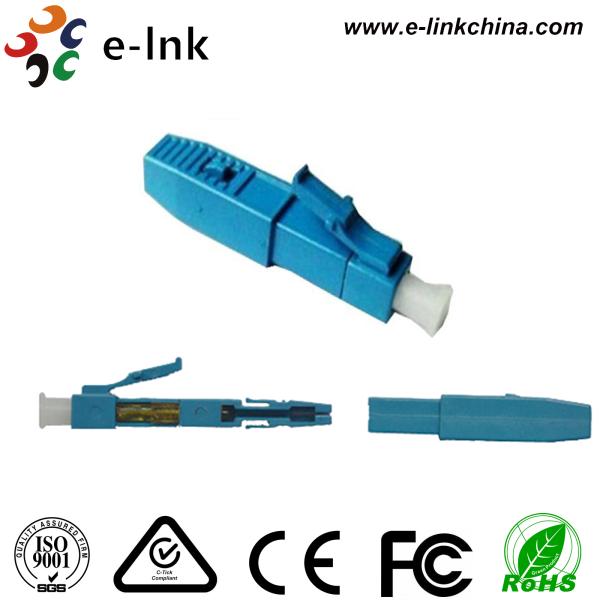

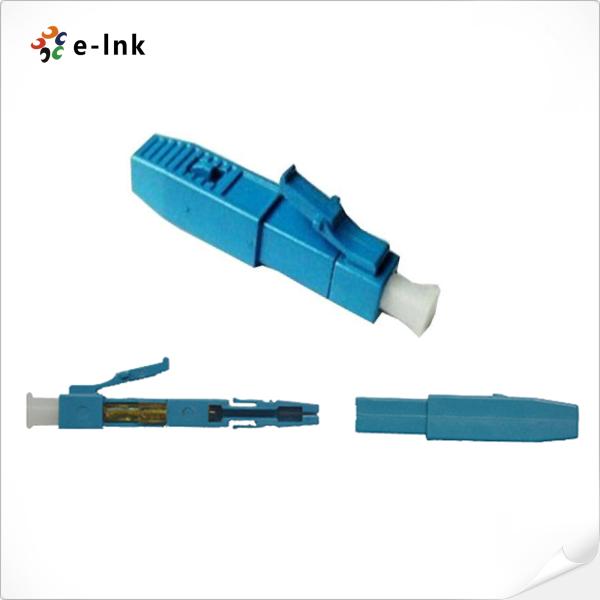

LC/UPC SM Fast Connector
LC/UPC SM Fast Connector
LC/UPC SM Fast Connector
LC/UPC SM Fast Connector
Specifications
Brand Name :
E-link
Model Number :
LC/UPC SM Fast Connector
Certification :
ISO9001, CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Tensile strength :
>50 N
Fastening strength of naked fiber holder :
>10 N
Fastening strength of naked fiber :
>5 N
Return loss :
≥50dB
Insert loss :
≤ 0.3dB（1310nm & 1550nm）
Operation time :
About 120s（no fiber cut）
Description

LC/UPC SM Fast Connector

Product Advantages

l One-piece connector or attenuator

l Inside ferrule with fiber stuff and pre-polishing

l Field installable, quich connection, easy for operation

l No epoxy, no polishing, no adhesive, no electricity required

l High performance and high reliability

l Simply and easy fixed fiber or cable

l Cable Tensile complied with Telcordia GR-326-CORE

Overview

Field Assembly Optical Connector (FAOC), or Fast connector is a perfect solution for filed working and FTTH connection. It is widely used for where need to quick connection, providing a quick assembly and stable performance. When engineers work in field for installation, maintenance, repair of optical fiber, or FTTH indoor terminate, they can use it easily because it has no epoxy, no polishing.

Technical Indexes

ITEM

Technical Parameters

Applicable for

Drop cable. Indoor cable

Optical fiber diameter

125μm ( 657A & 657B )

Tight buffer diameter

900μm

Fiber mode

Single mode

Polishing Type

UPC or APC

Operation time

About 120s(no fiber cut)

Insert loss

≤ 0.3dB(1310nm & 1550nm)

Return loss

≥50dB

Fastening strength of naked fiber

>5 N

Fastening strength of naked fiber holder

>10 N

Tensile strength

>50 N

Using temperature

-40～+75℃

On-line tensile strength (20 N)

△ IL ≤ 0.5dB △ RL ≤ 5dB

Mechanical durability (500 times)

△ IL ≤ 0.5dB △ RL ≤ 5dB

Drop-off test (drop-off height 4m, once per direction, totally 3 times)

△ IL ≤ 0.5dB △ RL ≤ 5dB
