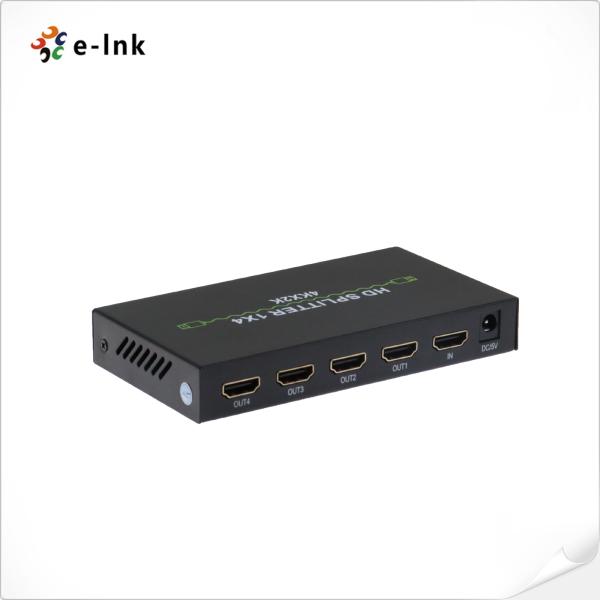

4K HDMI Splitter 1x4
4K HDMI Splitter 1x4
4K HDMI Splitter 1x4
4K HDMI Splitter 1x4
4K HDMI Splitter 1x4
4K HDMI Splitter 1x4
4K HDMI Splitter 1x4
4K HDMI Splitter 1x4
Specifications
Brand Name :
E-link
Model Number :
LNK-HDMI-SP1x4
Certification :
CE，FCC
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Dimension (W*H*D) :
135x75x20mm
Weight :
180g
Operating temperature :
-15 to +55℃
CasingCasingCasingCasingCasing :
Aluminum Case
Max transmission bandwidth :
3.2Gbps
Power adapter format :
DC5V
Description

4K HDMI Splitter 1x4

Product Advantages

l Support HDMI 1.4b

l Support 3D video format

l Resolution up to 3840x2160/30Hz

l Support 3.2Gbps data rate for TMDS clock up to 320MHz

l Support deep color 8/10/12bit

l support AWG26 HDMI standard cable:

when the resolution is 1080p and below, input up to 15 meters, output up to 20 meters.

when the resolution is 4K, input up to 12 meters, output up to 15 meters.

l Support displaying single source, multi-output high-definition signal source from DVD player A / V receiver, set-top box

l DC 5V power suppl

Overview

The HDMI Splitter uses a single HDMI source, accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 4 HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. resolution up to 3840x2160/30Hz.

Technical Indexes

HDMI version

HDMI 1.4b

HDMI resolution

up to 3840*2160/30Hz

Support video color format

deep color 8/10/12bit

Support audio format

DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth

320MHz

Max transmission bandwidth

3.2Gbps

Input cable distance

(1080p resolution) ≤15m,

(4K resolution)≤12m

AWG26 HDMI standard cable

Output cable distance

(1080p resolution) ≤20m

(4K resolution)≤15m

AWG26 HDMI standard cable

HDMI input

1

HDMI output

4

Power adapter format

DC5V

Operating Temperature range

(-15 to +55℃)

Operating Humidity range

5 to 90%RH (No Condensation)

Size

135x75x20mm

Weight

180g

Ordering Information

Model

Description

LNK-HDMI-SP1x4

4K HDMI Splitter 1x4
