Specifications
Brand Name :
E-link
Model Number :
LNK-HD-110 & LNK-3G-110
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
69USD~119USD
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Fiber Converter Standard Export Package
Keywords :
Fiber Converter
Operating Temperature :
-20℃～+70℃

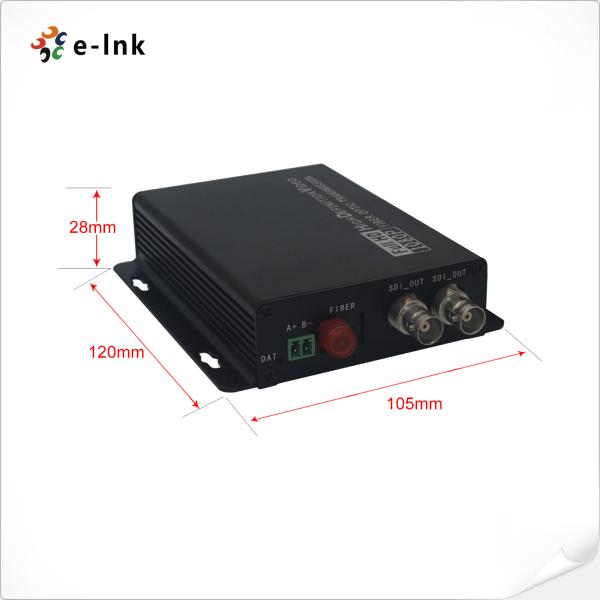

Dimensions (LxWxH) :
120 x 105 x 28 mm
Consumption :
<5W
MTBF :
≥100000 hours
Weight :
0.43KG/pair
Description

3G/HD-SDI to Fiber Converter

3G/HD-SDI to Fiber Converter Advantages

► Each channel includes 8-channel audio embedded

► Automatic cable equalization to ensure signal integrity

► Automatic re locking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Directly compatible with HD-SDI camera systems

► Long transmission capability at least 10 km (6.2miles) , up to 80 km

► Terminal block power input; Hot swap and hot plug;

► Full digital non-compression broadcast level transmission;

► super optic dynamic range and free of adjustment;

► fiber optic WDM/CWDM/DWDM technique;

► 1000M optical fiber transmission, easy for update;

industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments;

3G/HD-SDI to Fiber Converter Overview

LNK-HD-110 & LNK-3G-110 Series 3G/HD-SDI Fiber Converter supports 1-channel 3G/HD-SDI Video (audio embedded) & reversed RS422/485 data signal transmitted via fiber optical cable, and monitor the signal locally over a 3G/HD-SDI loop output. E-link 3G/HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal.

3G/HD-SDI to Fiber Converter Technical Indexes

Fiber Optical interface

Fiber interface

Simplex FC

Transmission distance

550m-20Km

Wavelength

1310nm/1550nm

Video

Video interface

BNC

Video input/output impedance

75Ω

Video input/out put voltage

Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp

Video Bits Rate

Max 3.2Gb/s

Differential gain (10%～90% APL)

<1%

Video SDI standard

270Mbps(SD-SDI), 1.485Gbps/M(HD-SDI)

SMPTE425M3Gb/s Mapping(3G-SDI)

SMPTE424M 3Gb/s serial interface(3G-SDI)

Data

Physical interface

Industrial standard screw terminal

Data type

RS422/RS485 Reverse Direction

Frequency/Rate support

Max. 115200bps for RS422

Max. 57600bps for RS485

BER

<10ˉ9

Electrical

Power adaptor

DC 5~25V

Power consumption

<5W

LED Indicator

P/S

Power Supply

DAT

Data

Mechanical

Dimensions (LxWxH)

120 x 105 x 28 mm

Weight

0.43KG/pair

Casing

Aluminum Case

Mounting Options

Wall-mount

Environmental

Working Temperature

-20℃～+70℃

Storage Temperature

-40℃～+80℃

Working Humidity

0~95%

MTBF

≥100000 hours

3G/HD-SDI to Fiber Converter Ordering Information

Model

Description

LNK-HD-110-20

HD-SDI to Fiber Converter with RS422 reverse data and loop out, SMF, FC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs

LNK-3G-110-20

3G-SDI to Fiber Converter with RS422 reverse data and loop out, SMF, FC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
