Mini Module PLC Splitter
Mini Module PLC Splitter
Mini Module PLC Splitter
Mini Module PLC Splitter
Mini Module PLC Splitter
Mini Module PLC Splitter
Mini Module PLC Splitter
Mini Module PLC Splitter
Specifications
Brand Name :
E-link
Place of Origin :
China
MOQ :
1 pcs
Price :
$5-269
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Carton Packaging
Operating Wavelength (nm) :
1260～1650
Min Return Loss (dB) :
55
Min Directivity (dB) :
55
Operating Temperature (℃) :
-5～75℃
Storage Temperature (℃) :
-40～85℃
Max Temperature Stability (dB) :
0.5
Description

Mini Module PLC Splitter


Advantages

ü Low Insertion Loss (IL)

ü High isolation

ü Low Polarization Dependent Loss (PDL)

ü Compact design

ü Wide operating wavelength range

ü Good channel-to-channel uniformity

ü High reliability and high stability

ü Telcordia GR-1209-CORE-2001 compliant

ü Telcordia GR-1221-CORE-1999 compliant

ü YD/T-1272Q compliant

ü Q/CT-2295 compliant

ü RoHS-6 compliant (lead free)


Overview

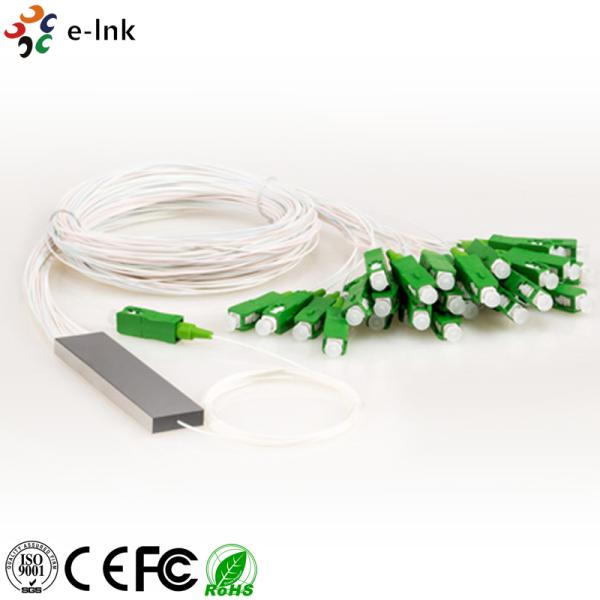

The E-link mini module PLC (Planar Lightwave Circuit) splitter is a type of optical power management device with mini module package fabricated using silica optical waveguide technology. It is widely used in PON/ODN networks to realize optical signal power splitting with 1xN or 2xN splitting ratio. E-link provides a series of customized mini module PLC splitters to meet different requirements on port configuration, cable type, fiber length, input connector, and output connector.


Technical Indexes

Parameters

1×N Mini Module PLC Splitters

Operating Wavelength (nm)

1260～1650

Port Configuration

1×2

1×4

1×8

1×16

1×32

1×64

Max Insertion Loss (dB) (P/S Grade)

4.1/4.3

7.4/7.6

10.5/10.8

13.8/14.0

16.8/17.2

20.8/21.3

Max Loss Uniformity (dB)

0.6

0.7

0.8

1.2

1.5

2.0

Max PDL (dB)

0.2

0.25

0.35

Min Return Loss (dB)

55

Min Directivity (dB)

55

Max Wavelength Dependent Loss (dB)

0.5

0.8

1.0

Max Temperature Stability (dB)

0.5

Operating Temperature (℃)

-5～75

Storage Temperature (℃)

-40～85

Device Dimension L×W×H (mm)

60×7×4

60x12x4

80x20x6

100x40x6

Parameters

2×N Mini Module PLC Splitters

Operating Wavelength (nm)

1260～1650

Port Configuration

2×2

2×4

2×8

2×16

2×32

Max Insertion Loss (dB)

4.5

7.9

11.3

14.7

17.8

Max Loss Uniformity (dB)

0.9

1.0

1.2

1.5

1.8

Max PDL (dB)

0.3

0.35

Min Return Loss (dB)

55

Min Directivity (dB)

55

Max Wavelength Dependent Loss (dB)

0.5

0.8

Max Temperature Stability (dB)

0.5

Operating Temperature (℃)

-5～75

Storage Temperature (℃)

-40～85

Device Dimension L×W×H (mm)

60×7×4

60x12x4

100x20x6


Ordering Information

LNK-xxx-MM-

xx-

xx-

x

x

Mini Module PLC Splitter

Fiber Type

Fiber Length

Input Connector

Output Connector

xxx:

09=0.9mm loose tube

10=1.0m

0=None

0=None

102=1×2

20=2.0mm loose tube

15=1.5m

1=FC/UPC

1=FC/UPC

...

30=3.0mm loose tube

20=2.0m

2=FC/APC

2=FC/APC

164=1×64

25=2.5m

3=SC/UPC

3=SC/UPC

202=2×2

...

4=SC/APC

4=SC/APC

...

5=LC/UPC

5=LC/UPC

232=2×32

6=LC/APC

6=LC/APC


Application

ü FTTH systems

ü PON networks

ü CATV links

ü Communication Equipment
