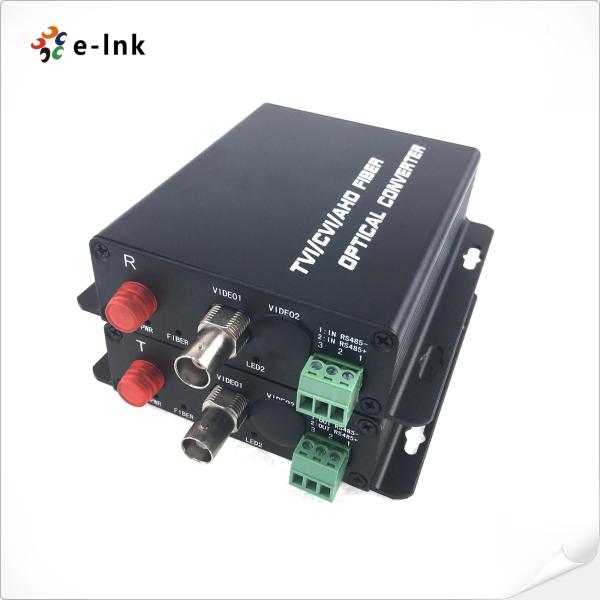

1Ch HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter Supports 720p/50 720p/60 1080p/25 1080p/30 videos etc
1Ch HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter Supports 720p/50 720p/60 1080p/25 1080p/30 videos etc
Specifications
Brand Name :
E-link
Model Number :
LNK-1ACT series
Certification :
ISO9001, CE, ROHS, FCC
Place of Origin :
China
MOQ :
1 pair
Price :
US$45-US$75
Payment Terms :
T/T,Western Union,MoneyGram,PayPal
Supply Ability :
1000/Month
Delivery Time :
3-5 working days
Packaging Details :
SDI Fiber Extender Standard Carton Packaging
Output Power :
-8~3dBm
Optic fiber :
50/125u multimode，62.5/125u multimode，9/125u single mode
Optical connector :
FC (default), ST or SC (optional)
Video Bandwidth :
50MHz
Storage Temperature: :
-40°C to 85°C (-40°F to 185°F)
Dimensions(WxDxH): :
104 x 104 x 28 mm (720P) 104 x 104 x 28 mm (1080P)
Description

1Ch HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter

Model: LNK-1ACT series


Overview

The 1Ch HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter adopts advanced uncompressed
HD composite video transmission technology and high-speed digital optical transmission solution. It can
accurately convert four types of video signals (AHD, HD-CVI, HD-TVI, and CVBS) into optical signals,
enabling reliable long-distance transmission up to 120Km. This 1Ch 4-in-1 video fiber transceiver
features single-fiber transmission capability, which can simultaneously carry 1 channel of the
aforementioned video signals via only one multimode or single-mode optical fiber, effectively saving
fiber optic cabling resources and deployment costs.
​
Equipped with a design that eliminates the need for electronic and optical adjustments, the device
requires no manual intervention in signal calibration procedures, greatly simplifying debugging and
maintenance efforts. It is furnished with multiple groups of LED status indicators that can real-time
display operating statuses such as power supply, video signal, and optical signal, facilitating quick
fault location. In terms of installation adaptability, the 1Ch HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1
Video Fiber Converter offers two installation options: standalone installation and rack-mount installation.
The former is suitable for small-scale stations or temporary deployment, while the latter is compatible
with standard 19-inch racks, meeting the requirements of standardized equipment room deployment.
​
Regarding video format compatibility, this device supports multiple input specifications including
25/30/50/60fps@720P and 25/30fps@1080P, and is compatible with mainstream HD and SD video
capture equipment.
​

Features

► Non-compression coding technology

► Automatically identify formats of input videos.

► Support transmission of combined AHD, HDCVI, HD-TVI or CVBS signal and controlling PTZ data RS485 simultaneously though fiber optical cable

► Support 720p/50, 720p/60, 1080p/25, 1080p/30 videos etc.

► Through LED indicators to inform its functional mode

► Industrial wide range of operational temperature

► Plug and play, simple installation.

► Wide-range temperature application: -15ºC ~65ºC

Technical Indexes


Optical Fiber

Wavelength

WDM:1310nm/1550nm

Output Power

-8~3dBm

Optic fiber

50/125u multimode,62.5/125u multimode,9/125u single mode

Rx sensitivity

-26dBm

Optical connector

FC (default), ST or SC (optional)

Transmission Distance

0~550M (MM) / 0~80KM (SM) (Default distance is 20Km)

Video

Number of Channels

1

Input/output impedance

75 Ohm (unbalance)

Standard video input/output voltage

1.0Vp-p

Video Bandwidth

50MHz

Sampling Bandwidth

8bit

Sampling Frequency

108MHz

Signal to noise ratio

>67dB

Rise and Fall time

<0.8ns

Optical Signal Intrinsic Jitter

<0.2 UI

Differential Gain

< ±1.5%

Differential Phase

< ±1°

Connector

BNC

Supporting video pixel/Resolution

1280(H)x720(V)@30Hz/1MPX

1280(H)x720(V)@50Hz/1MPX

1280(H)x960(V)@30Hz/1.3MPX

1920(H)x1080(V)@30Hz/2MPX

PTZ Data

Protocol

Default: RS485 (RS232/RS422 Optional)

Number of channels

1

Connector

3pins Terminal Blocks

Data Rate

0-200Kbps

Directions

Default :Simplex from Rx to Tx (BIDI duplex optional)

Environmental

Operating Temperature:

-15°C to 65°C (5°F to 149°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 100,000 hrs

Electrical and Mechanical

Input Power:

DC5V 2A

Power Consumption:

≤6W

LED Indicators:

Fiber

Fiber Status

Video

LED

Data

Data status

PWR

Power Status

Dimensions(WxDxH):

104 x 104 x 28 mm (720P)

104 x 104 x 28 mm (1080P)

Weight:

1Kg (720P)

1KG(1080P)

Casing:

Metal Case

Mounting Options:

Wall-mount/Rack-mount

Regulatory Approvals

ISO9001

CE, RoHS and FCC


ordering information

Model

Details

LNK-1ACT-M

1-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera), 2km, Multimode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-1ACT-MR

1-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 2km, Multimode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-1ACT-20

1-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-1ACT-20R

1-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-1HACT-20

1-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-1HACT-20R

1-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-1HACT-40

1-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera), 40km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-1HACT-40R

1-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 40km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs


Application
