Specifications
Brand Name :
E-Link
Model Number :
LNK-INJ601-30
Certification :
ISO9001，ROHS，FCC，CE
Place of Origin :
China
MOQ :
1 pcs
Price :
$58~65 / Piece
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
4000 Pcs/Month
Delivery Time :
3-5 Working Days
Packaging Details :
Industrial PoE Injector standard export package
Dimensions (WxDxH) :
95 x 70 x 30 mm
Weight :
0.25Kg
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
Casing :
Aluminum Case
Mounting Options :
DIN-Rail / Wall-mount
Input Power :
12~48VDC
Description

Industrial 10G PoE+ Injector 30W 12~48V DC Power Input Aluminum Alloy Metal Case


Features

1. 12~48V DC Power Input

2. 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

3. Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

4. Support 10/100/1000/2.5G/5G/10G Base-TX

5. Extensive LED indicators for PoE diagnostics

6. Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

7. Small Size 95 x 70 x 30 mm

8. Aluminum Alloy Metal Case

9. Support DIN-rail mounting and wall mounting installation


Overview

The LNK-INJ601-30 product is a Hardened 10G PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 30m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000/2.5G/5G/10G Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.

Technical Indexes

Ethernet

Standards:

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

14,880,000pps (10Gbps)

Cabling:

10/100/1000/2.5G/5G/10G Base-T: Cat7 or above

Maximum Distance:

Cat7 UTP up to 30m

Connector:

2x RJ45

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Input Power:

12~48VDC (Terminal Block)

Power Consumption:

36W Max.

PoE (Power over Ethernet)

Standard:

IEEE802.3af/at

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

Max. Power per Port:

30W Max per port (Alternative B Mode)

LED Indicators:

Power:

Power Status

PoE:

PoE Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500V

ESD: 4KV/8KV


Ordering Information


Model

Description

LNK-INJ601-30

12~48VDC Power Input Industrial 10G PoE+ Injector

Mounting Options

Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

Power Supply is to be purchased separately

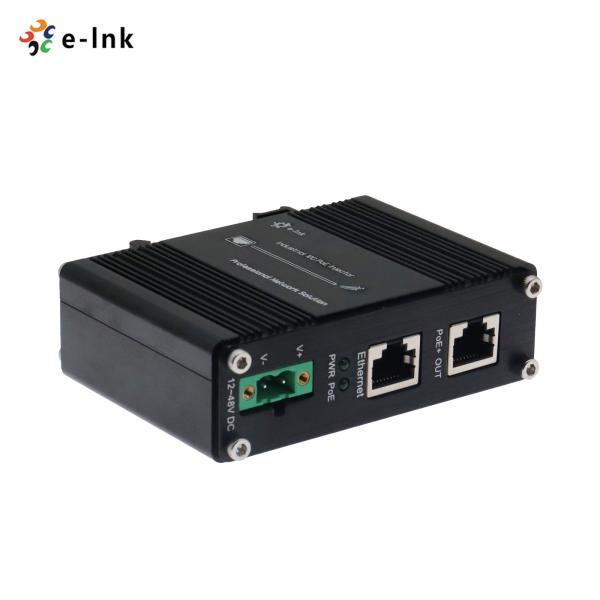

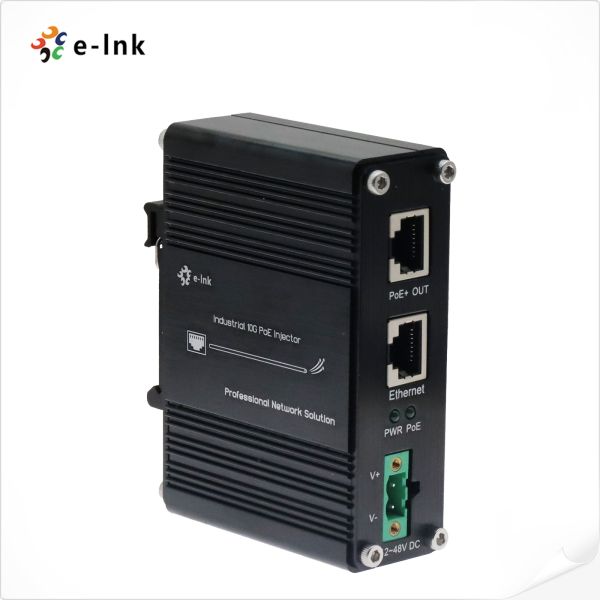

Pictures
