Mini 8K/60Hz HDMI2.1 over Single-Core Multimode Fiber Extender Uses Small with Reliable LC Optical Connector
Mini 8K/60Hz HDMI2.1 over Single-Core Multimode Fiber Extender Uses Small with Reliable LC Optical Connector
Mini 8K/60Hz HDMI2.1 over Single-Core Multimode Fiber Extender Uses Small with Reliable LC Optical Connector
Mini 8K/60Hz HDMI2.1 over Single-Core Multimode Fiber Extender Uses Small with Reliable LC Optical Connector
Specifications
Brand Name :
E-link
Model Number :
LNK-201M
Certification :
ISO9001, CE, ROHS, FCC
Place of Origin :
China
MOQ :
1pcs
Price :
US$690-US$630
Payment Terms :
T/T,Western Union,MoneyGram,PayPal
Supply Ability :
1000/Month
Delivery Time :
1-3 working days
Packaging Details :
HDMI Fiber Extender Standard Carton Packaging
Type of Extender :
Mini 8K/60Hz HDMI2.1 over Single-Core Multimode Fiber Extender
Signal Support :
HDMI 2.1 HDMI format standard
Website Specifications :
Color space 444, 420, 400
Transmission Rate :
48Gbps
Storage Temperature :
-20°C to + 85°C
Dimension (WxDxH) :
2.24 x 0.6 x 0.55 in (57x16x14mm)
Description

Mini 8K/60Hz HDMI2.1 over Single-Core Multimode Fiber Extender

Model : LNK-201M


Overview

The LNK-201M is a high-performance Mini 8K/60Hz HDMI2.1 over Single-Core Multimode
Fiber Extender, featuring a compact pluggable design that connects directly to target devices
—eliminating the need for extra mounting space and simplifying deployment in space-constrained
environments. As a Mini 8K/60Hz HDMI2.1 over Single-Core Multimode Fiber Extender, it combines
ultra-high-definition video transmission capabilities with a streamlined form factor, making it an ideal
solution for scenarios where both 8K visual quality and space efficiency are critical.
​
This extender enables extension of 4K video sources (with backward compatibility for lower resolutions)
over single-core multimode fiber up to 100m to the desired display, while its core advantage lies in
supporting 8K/60Hz ultra-high-definition transmission—delivering crisp, detailed visuals that meet the
demands of high-end AV applications. The absence of copper conductors in its transmission chain ensures
negligible RFI (Radio Frequency Interference) and EMI (Electromagnetic Interference) emissions, safeguarding
data security and preventing video quality degradation, even in electromagnetic-dense environments like industrial
control rooms or busy AV racks.
​
Engineered as an enclosed HDMI optical module, the Mini 8K/60Hz HDMI2.1 over Single-Core Multimode
Fiber Extender supports uncompressed lossless transmission of HDMI 2.1 signals over OM5 multimode
optical fiber at 850nm wavelength, with a maximum transmission distance of 100m and a resolution of 8K/60Hz.
Its transmitter unit (LNK-201M-T) converts HDMI signals into a single 48Gb/s high-speed serial data stream for
efficient transmission over single optical fibers, while the receiver unit (LNK-201M-R) accurately reconverts the
serial data back to HDMI signals—ensuring signal integrity from source to display.
​
Compliant with RoHS standards and lead-free, the extender meets strict environmental regulations in Europe and
China, aligning with global sustainability requirements. It also boasts strong anti-interference capabilities, maintaining
stable signal transmission even in complex electrical environments. This makes it suitable for a wide range of professional
and consumer applications, including large-screen 8K display systems in exhibition centers, high-end video conferencing
setups, premium home entertainment theaters, digital signage networks, and professional AV installations. The combination
of 8K/60Hz performance, HDMI2.1 compatibility, single-core fiber efficiency, and compact design establishes it as a reliable
choice for modern ultra-high-definition video transmission needs.​


Features

► Supports HDMI2.1 Video up to 8K/60Hz (Y:U:V 4:4:4)

► No Settings or Adjustments Necessary

► Adopt WDM technology to realize high-definition audio and video transmission through a single OM5 multi-mode optical fiber

► Supports up to 100m Transmission Distance with OM5 multimode fiber

► Standard HDMI2.1 Connector

► Integrated USB Connector for Power

► Hot-Pluggable

► The TMDS signal is transmitted through a multimode optical fiber, which has good anti-interference performance

► Uses Small, Reliable LC Optical Connector

► Support EDID, HDCP, CEC transparent transmission


Technical Indexes

Type of Extender

Mini 8K/60Hz HDMI2.1 over Single-Core Multimode Fiber Extender

Input Signals

HDMI2.1

Signal Support

HDMI 2.1 HDMI format standard

Video Support

8K@60Hz/4K@120Hz/1080p/1080i/720p

Up to 7680x4320@60Hz

Audio Support

Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)

Website Specifications

Color space 444, 420, 400

EDID

Support

HDCP

Support

CEC

Support

Fiber Connector

1 x LC Connector

Transmission Rate

48Gbps

Transmission Distance

OM5 Multi Mode, up to 100M

Operating Temperature

-40°C to + 70°C

Storage Temperature

-20°C to + 85°C

Humidity

to 90% RH (non-condensing)

Safety Approvals

CE, RoHS, FCC

Dimension (WxDxH)

2.24 x 0.6 x 0.55 in (57x16x14mm)

Weight

0.1 kg / 0.22 lb

Operation Voltage

5VDC

Operation Current

TX:150mA

Power Supply

TX: 5V (take power from the HDMI interface on the Source side, some devices cannot provide sufficient power supply, need to connect external power supply)

RX: need external power supply 5V, use Micro USB charging cable

Power Consumption

TX: <800mW; RX: <400mW


Ordering Information

Model

Description

LNK-201M

Mini 8K/60Hz HDMI2.1 over Single-Core Multimode Fiber Extender, OM5 Multi-mode Fiber, 100 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input

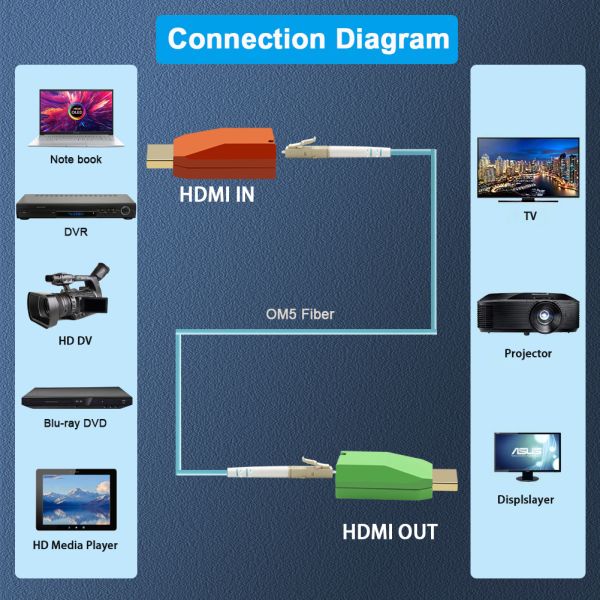

Application

Mini 8K/60Hz HDMI2.1 over Single-Core Multimode Fiber Extender Uses Small with Reliable LC Optical Connector
