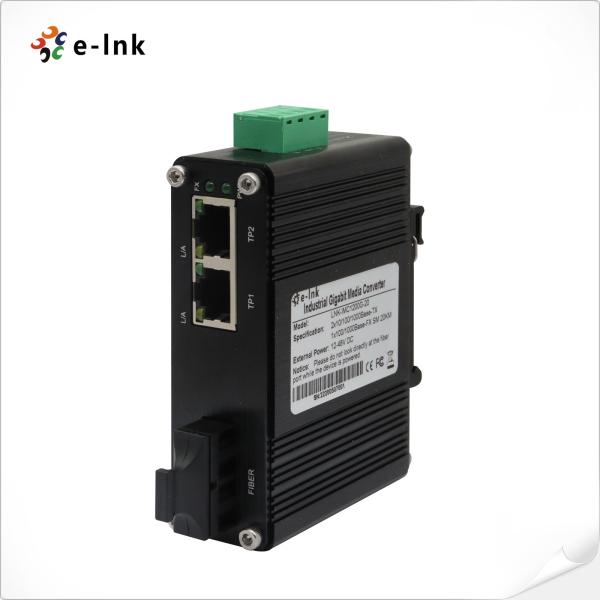

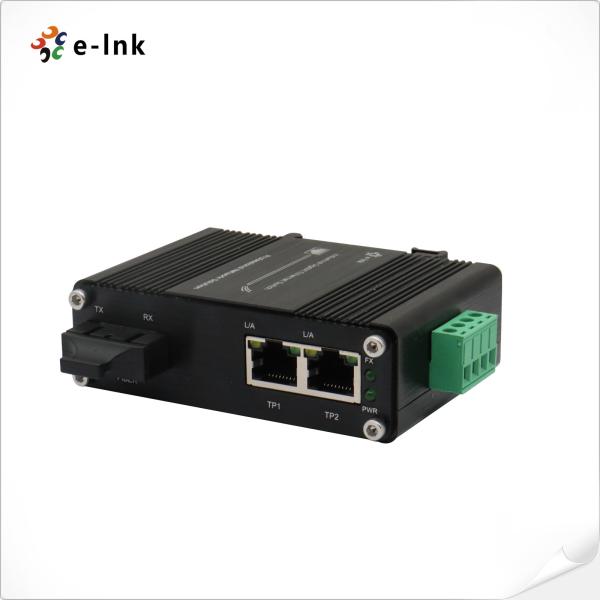

SC RJ45 Dual Port Industrial Fiber Media Converter 10M/100M/1000M 12V 48V
SC RJ45 Dual Port Industrial Fiber Media Converter 10M/100M/1000M 12V 48V
SC RJ45 Dual Port Industrial Fiber Media Converter 10M/100M/1000M 12V 48V
SC RJ45 Dual Port Industrial Fiber Media Converter 10M/100M/1000M 12V 48V
SC RJ45 Dual Port Industrial Fiber Media Converter 10M/100M/1000M 12V 48V
SC RJ45 Dual Port Industrial Fiber Media Converter 10M/100M/1000M 12V 48V
SC RJ45 Dual Port Industrial Fiber Media Converter 10M/100M/1000M 12V 48V
SC RJ45 Dual Port Industrial Fiber Media Converter 10M/100M/1000M 12V 48V
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC1200G Series
Certification :
ISO
Place of Origin :
China
MOQ :
1 unit
Price :
US$65-75/pc
Payment Terms :
T/T, Western Union, MoneyGram,PayPal
Supply Ability :
10000pcs/Month
Delivery Time :
5-10 working days
Packaging Details :
Fiber Media Converter Standard Package
Ethernet Connector :
2 x RJ45
Fiber Optical Port :
1 x SC 1000Base-X
Power Input :
12~48VDC, 2-pin terminal block
Power Consumption :
5W Max.
Size :
95 x 70 x 30 mm
Weight :
250g
Description

Fiber Media Converter Mini Industrial Grade Gigabit 1xSC + 2xRJ45 10/100/1000M
​Fiber Media Converter Advantages

  • 2-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
  • 1-Port 1000Base-X SC
  • 12~48VDC Terminal Block Power Input

Specifications

Interface

Connector:

2 x RJ45

Optical Port:

1 x SC 1000Base-X

Electrical and Mechanical

Input Power:

12~48VDC, 2-pin terminal block

Power Consumption:

5W Max.

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hr

SC RJ45 Dual Port Industrial Fiber Media Converter 10M/100M/1000M 12V 48V
Order Information

Model Description
LNK-IMC1200G Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Multimode, 850nm, 550m
LNK-IMC1200G-20 Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC1200G-S20 Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Single Mode, Single Fiber, 1310/1550nm, 20km
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately
