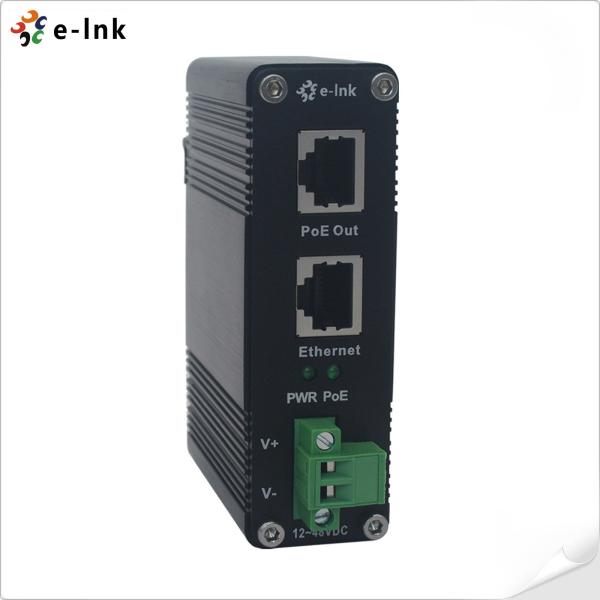

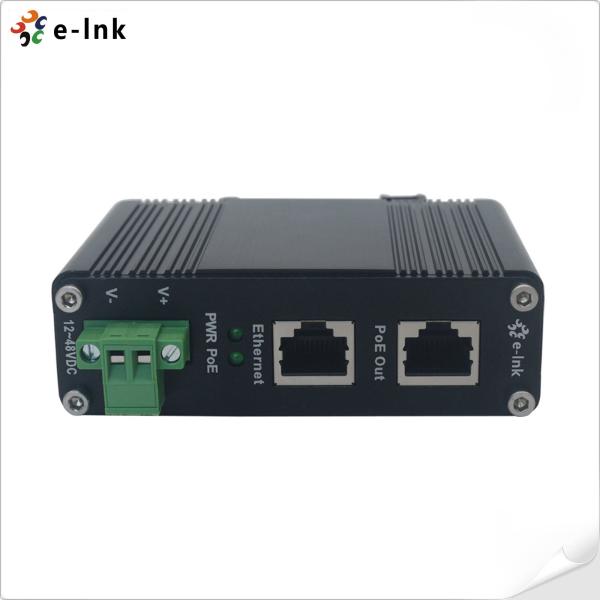

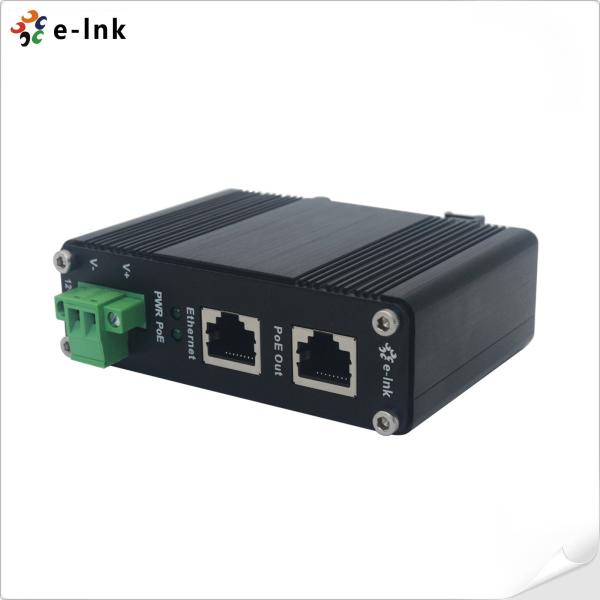

10/100/1000M PoE Injector Adapter 30W DIN Rail Mount Hardened Gigabit High Power
10/100/1000M PoE Injector Adapter 30W DIN Rail Mount Hardened Gigabit High Power
10/100/1000M PoE Injector Adapter 30W DIN Rail Mount Hardened Gigabit High Power
10/100/1000M PoE Injector Adapter 30W DIN Rail Mount Hardened Gigabit High Power
10/100/1000M PoE Injector Adapter 30W DIN Rail Mount Hardened Gigabit High Power
10/100/1000M PoE Injector Adapter 30W DIN Rail Mount Hardened Gigabit High Power
10/100/1000M PoE Injector Adapter 30W DIN Rail Mount Hardened Gigabit High Power
10/100/1000M PoE Injector Adapter 30W DIN Rail Mount Hardened Gigabit High Power
Specifications
Brand Name :
E-link
Model Number :
LNK-INJ301
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
USD50/PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
1000000PCS/Month
Delivery Time :
3-5 working days
Packaging Details :
Industrial PoE Injector Standard Carton Packaging
Data :
1000M
PoE Power :
30W
Housing :
Aluminum
Mounting :
DIN-Rail
Temperature :
-40°C to 80°C
Period :
Five Years
Description

Special 12-48VDC Power Input 10/100/1000M 30W Industrial PoE Injector

Industrial PoE Injector Advantages:

12~48VDC Power Input
1 RJ45 Ethernet Data Input Port + 1 RJ45 Power
Over Ethernet Output Port(Data + Power)
Support IEEE802.3at Power over Ethernet(PoE+) Power Sourcing Equipment
Support 10/100/1000Base-TX
Support DIN-Rail & Wall-mount installation.
Extensive LED indicators for PoE diagnostics
Environmentally Hardened -40°C to 80°C
(-40°F to 176°F) operating temperature

Industrial PoE Injector Specifications

Ethernet
Standards: IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
Processing Type: Forward
Half-duplex, Full-duplex
Forward Filter Rate: 1,488,000pps (1000Mbps)
Cabling: 10/100/1000Base-T: Cat5 or above
Maximum Distance: Cat5 UTP up to 100m
Connector: 2x RJ45
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF: >200,000hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: 36W Max.
PoE (Power over Ethernet)
Standard: IEEE802.3af/at
Port: RJ45
Power Pin Assignment 4/5(+), 7/8(-)
Max. Power per Port: 30W Max per port (Alternative B Mode)
Industrial PoE Injector Overview:

The LNK-INJ301 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device

LNK-INJ301 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.

10/100/1000M PoE Injector Adapter 30W DIN Rail Mount Hardened Gigabit High Power

Ordering Information

Model Description
LNK-INJ301 12~48VDC Power Input Industrial Gigabit PoE+ Injector
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► Power Supply is to be purchased separately
