Specifications
Brand Name :
E-link
Model Number :
LNK-HDMI
Certification :
RoHS,CE,FCC
Place of Origin :
China
MOQ :
1 pair
Price :
To be negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
500 Pair/month
Delivery Time :
5-15working days
Packaging Details :
HDMI Fiber Extender Standard Export Package
Keyword :
HDMI Fiber Extender
Connector :
Female HDMI type A
Interface :
SFP model – LC connector
Interface bandwidth :
18Gbps
Transmission distance :
OM3 Multimode fiber: 300M Single mode fiber: 10KM
Power supply :
The power adapter: DC 5V
Description

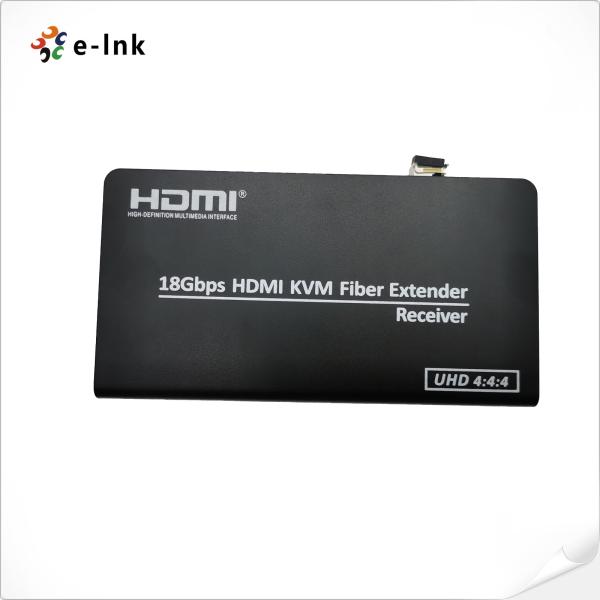

4K HDMI 2.0 KVM USB over Fiber Optic Extender

LNK-HF201KM KVM Video Signal Extender HDMI 2.0, USB (keyboard / mouse). It consists of two modules that are interconnected by means of single-mode or multimode fiber optic cable. It allows working at a maximum resolution of 4K HDMI video. The maximum cable distance can be up to 10 km via Single Mode Fiber or 300 meters via OM3 Multimode Fiber.

HDMI Fiber Extender Advantages

► Transmits 4K HDMI2.0 video signals up to 10km over SMF, 300 meters over OM3 MMF

► Support keyboard and mouse signal transmission

► Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4 8-bit

► Supports HDCP 2.2

► Local module connectors: HDMI input, USB input (type B-female) for keyboard / mouse, fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)

► Remote module connectors: HDMI output for remote display, 2 USB outputs (keyboard / mouse), fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)

► Simple to install, plug and play

Technical Indexes

Parameter Description
Video Standards HDMI 2.0 and HDCP 2.2
Maximum pixel clock 600MHz
Maximum data rate 18Gbps
Resolution range 800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160P, 4096 x 2160P
Connector Female HDMI type A
Impedance 100Ω
K/M Interface

PC: MINI-USB

Keyboard And Mouse: USB-A
Optical fiber Interface SFP model – LC connector
Fiber type Single-mode or Multimode
Wavelength Single-mode 1310nm, Multimode 850nm
Interface bandwidth 18Gbps
Transmission distance

OM3 Multimode fiber: 300M

Single mode fiber: 10KM
Other Power supply The power adapter: DC 5V
Power dissipation MAX 5W
Temperature Operating: -10℃ ~ +55℃
Humidity Operating: 5% ~ 90%
Dimension (LxWxH) 163 x 86 x 24(mm)
Gross weight 1.471KG
The warranty 1 year free warranty

4K HDMI 2.0 KVM USB over Fiber Optic Extender

Ordering Information

Model Description
LNK-HF201KM-M 4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3 Multimode Fiber, 300 meters
LNK-HF201KM-10 4K HDMI 2.0 KVM USB over Fiber Optic Extender, Single-mode Fiber, 10km
