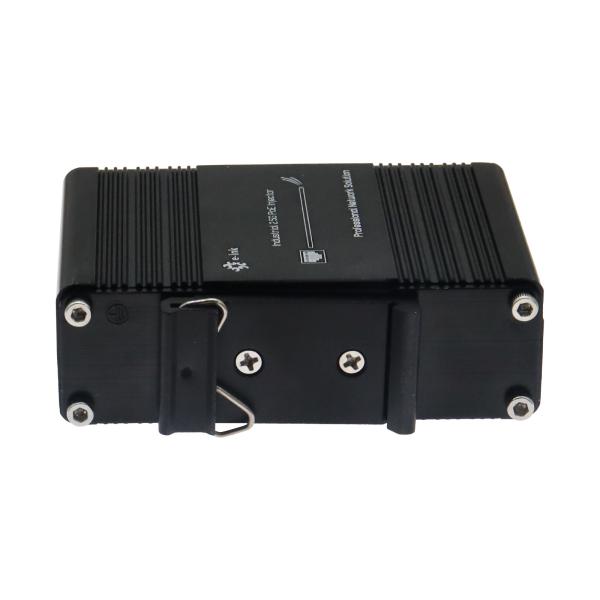

Industrial 2.5G 95W 802.3bt PoE++ Injector 12-48V DC with power booster function
Industrial 2.5G 95W 802.3bt PoE++ Injector 12-48V DC with power booster function
Industrial 2.5G 95W 802.3bt PoE++ Injector 12-48V DC with power booster function
Industrial 2.5G 95W 802.3bt PoE++ Injector 12-48V DC with power booster function
Industrial 2.5G 95W 802.3bt PoE++ Injector 12-48V DC with power booster function
Industrial 2.5G 95W 802.3bt PoE++ Injector 12-48V DC with power booster function
Industrial 2.5G 95W 802.3bt PoE++ Injector 12-48V DC with power booster function
Industrial 2.5G 95W 802.3bt PoE++ Injector 12-48V DC with power booster function
Industrial 2.5G 95W 802.3bt PoE++ Injector 12-48V DC with power booster function
Industrial 2.5G 95W 802.3bt PoE++ Injector 12-48V DC with power booster function
Industrial 2.5G 95W 802.3bt PoE++ Injector 12-48V DC with power booster function
Industrial 2.5G 95W 802.3bt PoE++ Injector 12-48V DC with power booster function
Specifications
Brand Name :
E-link
Model Number :
LNK-INJ401-90
Certification :
CE,FCC,RoHs
Place of Origin :
China
MOQ :
1pc
Price :
$4.9-299
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs per month
Delivery Time :
3-6working days
Packaging Details :
PoE Injector Adapter standard export package
Forward Filter Rate :
1,488,000pps (1000Mbps)
Cabling :
10/100/1000/2.5G Base-T: Cat6A or above
Maximum Distance :
Cat6A UTP up to 100m
Connector :
2x RJ45
MTBF :
>200,000hrs
Input Power :
12~48VDC (Terminal Block)
Cable Length :
1.5m
Connector Type :
RJ45
Data Rate :
10/100/1000Mbps
Humidity :
5%-90%RH
Input Voltage :
12~48VDC (Terminal Block)
LED Indicators :
Power/Link
Output Power :
90W
PoE Standard :
IEEE 802.3af/at
Power Pin Assignment :
4/5(+), 7/8(-)
Storage Temperature :
-40°C to 85°C (-40°F to 185°F)
Description

Industrial 2.5G 95W 802.3bt PoE++ Injector (12~48VDC) with power booster function

12~48VDC Power Input Industrial 2.5G 90W PoE++ Injector Advantages

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)

► Support 95W LTPoE++ Power Sourcing Equipment

► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE

► Support 10/100/1000/2.5G Base-TX

► Extensive LED indicators for PoE diagnostics

► 12~48V DC wide range power input with power booster function

► Up to 95-watt PoE budget (48VDC), 95-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

► Supports DIN-Rail and Wall-mount installation

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

Overview

The LNK-INJ401-90 product is an Industrial hardened 2.5G single-port PoE+ IEEE 802.3bt / LTPoE++

95W 10/100/1000/2.5G Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you

to connect the PoE device such as camera and access point with a non PoE LAN switch within the

distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100

/1000/2.5G Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output.

Technical Indexes

Ethernet
Standards: 10/100/1000/2.5G BASE-T Ethernet
Processing Type: Forward
Half-duplex, Full-duplex
Forward Filter Rate: 3,720,000pps (2.5Gbps)
Cabling: 10/100/1000/2.5G BASE-T: CAT6 or above
Maximum Distance: CAT6A UTP up to 100m
Connector: 2x RJ45
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF: >200,000hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: 100W Max.

Application

Industrial 2.5G 95W 802.3bt PoE++ Injector 12-48V DC with power booster function

Ordering Information

Model Description
LNK-INJ401-90

2.5G Hardened 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48VDC wide range power input
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
