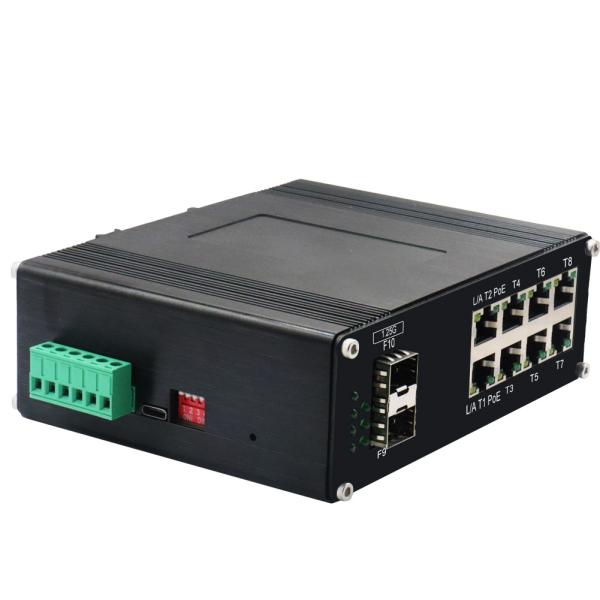

ROHS FCC CE SFP Network Switch 8 Port 10/100/1000T 802.3at + 2 Port 1000X
ROHS FCC CE SFP Network Switch 8 Port 10/100/1000T 802.3at + 2 Port 1000X
ROHS FCC CE SFP Network Switch 8 Port 10/100/1000T 802.3at + 2 Port 1000X
ROHS FCC CE SFP Network Switch 8 Port 10/100/1000T 802.3at + 2 Port 1000X
Specifications
Brand Name :
E-link
Model Number :
ETH-IMC208MP
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
$29.9-389
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
5-12 working days
Packaging Details :
Managed PoE Switch Standard Export Package
Keywords :
Managed industrial PoE switch
Input Power :
48~57VDC, 6-pin Terminal Block
RJ45 Port :
8-Port 10/100/1000T 802.3at
PoE Budget :
Up to 240-watt
Optical Port :
2-Port 1000Base-X SFP
RS-485 signals :
Data +, Data-, GND
Description

ROHS FCC CE SFP Network Switch 8 Port 10/100/1000T 802.3at + 2 Port 1000X

Industrial Managed PoE Switch 8-Port 10/100/1000T 802.3at + 2-Port 1000X SFP Network Switch


Industrial Managed Network Switch Advantages

► Support 8x10/100/1000Base-T + 2x1000Base-X SFP

► IEEE802.3af/at compliant

► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network

► 9K Bytes Jumbo Frame

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature


Managed PoE Switch 8-port Gigabit Overview

ETH-IMC208MP series is the L2+ managed 8-port 10/100/1000Base-T 802.3at PoE + 2-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber.

PoE Switch 8-port RJ45 Managed Technical Indexes

Interface

Connector:

8 x RJ45

RS485:

1 x RS485 (Optional)

Optical Port:

2 x 1000Base-X SFP

USB-C:

1 x USB-C (for Management)

RS485 Serial Interface (Optional)

Physical interface

Industrial standard 3-pin screw terminal

Data type

1Ch RS485 Bi-Direction

RS-485 signals

Data +, Data-, GND

Serial port line distance (copper)

1000 meters

Baud rate

0 ~ 800kbps

PoE (Power over Ethernet)

Standard:

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

PoE Budget:

Up to 240-watt PoE budget

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

48~57VDC, Redundant Power (6-pin Terminal Block)

Power Consumption:

8W Max.(PoE in Use<240W)

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

DIP Switch

4-digit DIP switch function

DIP

Function

Settings

SW 1

VLAN

ON - Enabled

OFF - Disabled

SW 2

Ring Management

ON - Enabled

OFF - Disabled

SW 3 (to be upgraded)

250m PoE Network

ON - Enabled

OFF - Disabled

SW 4 (to be upgraded)

PoE Reset

ON - Enabled

OFF - Disabled

LED Indicators:

PWR:

Power Status

Ethernet (Per Port):

Link/Activity

PoE:

PoE Status

Fiber:

Gigabit SFP Port: F9~F10

ROHS FCC CE SFP Network Switch 8 Port 10/100/1000T 802.3at + 2 Port 1000X

ROHS FCC CE SFP Network Switch 8 Port 10/100/1000T 802.3at + 2 Port 1000X
8 Port Managed Fiber PoE Switch Ordering Information

Model

Description

ETH-IMC208MP

Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Managed Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed

Power Options

► DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
