Specifications
Brand Name :
E-link
Model Number :
LNK-4KE-120
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pair
Price :
$25-369
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pairs/month
Delivery Time :
5-12 working days
Packaging Details :
HDMI Video Extender Standard Export Package
Name :
4K@30HZ HDMI Extender 120M With Loopout & Dual IR
Model :
LNK-4KE-120
The warranty :
1 year free warranty
Dimension :
82*85*17mm
Audio Format :
LPCM, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio
Cable Type :
Multi-mode fiber
Connector Type :
SC/FC
Dimensions :
140*90*25mm
HDCP Version :
HDCP 1.4
HDMI Version :
HDMI 1.4
Humidity :
10%~90% RH (non-condensing)
Operating Temperature :
0℃~40℃
Power Supply :
DC 5V/2A
Product Name :
HDMI Fiber Extender
Storage Temperature :
-20℃~60℃
Transmission Bandwidth :
Up to 10.2Gbps
Transmission Distance :
Up to 20km
Transmission Mode :
Single-mode
Video Resolution :
Up to 4K@60Hz
Description

HDMI1.4 HDCP1.4 30HZ 4K HDMI Extender 120M With Loopout Dual IR

4K@30HZ HDMI Extender 120M With Loopout & Dual IR

  • Aluminum alloy housing design, stable and durable ;compact size and Slim ,stronganti-interference, Wall-mounted type is more convenient;
  • Uncompressed transmits HDMl video and audio signals up to 120M over a single CAT6a/7cable:
  • Support video resolution up to 3840*2160 @30Hz, 3D signal;
  • Support Keyboard and mouse control;
  • Support localloopout in sender
  • HDMI 1.4 and HDCP 14 standard:
  • Build-in EDID function, can match many kind display device:
  • Ethernet cables with a standard IEEE - 568b connection, convenient installation;
  • Built-in ESD protection
  • High compatibility, can auto-match source and display device:
  • Built-in automatic adiustment system, make the image smooth, clear and stable:

Technical Indexes

ParameterDescription
VideoStandardsHDMI1.4; HDCP 1.4
Maximum pixel clock225MHz
Maximum data rate10.2Gbps
Maximum resolution3840*2160@30Hz (backward-compatible)
ConnectorHDMI-A
Impedance100Ω
USBInterface

PC: Standard USB-A
K/M: Standard USB-A

USB SignalHID Signal
UTPInterfaceRJ45 (IEEE - 568b connection)
Transmission distanceCAT6-120M
OtherPower supplyThe power adapter: DC 5V
Power dissipationMAX 4W
TemperatureOperating: -5℃ ~ +70℃
HumidityOperating: 5% ~ 90%
Dimension82*85*17mm
The warranty1 year free warranty

Overview

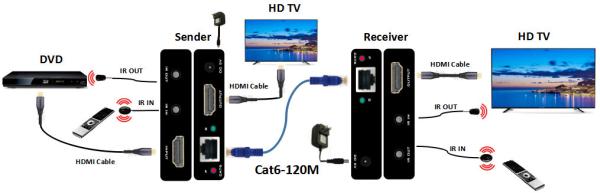

This HDMl Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair, lt allows fortransmission and extension uncompressed full HD 4K@30H2 HDMI signal via CAT6/6A/7 network cable, thetransmission distance is up to 120 meters with zero latency. At the same time, the signal is stable, and thebuilt-in EDlD greatlv improves the compatibility of the device. Support Keyboard mouse control and locaoopout , This product is perfect for AV transmission in applications of HD conference svstem, HD videcshooting, HD multimedia education system, HD digital advertising and signage etc.The device has a long transmission distance, low use cost, convenient installation and good compatibility, andit is a stable and efficient transmission method.
HDMI1.4 HDCP1.4 30HZ 4K HDMI Extender 120M With Loopout & Dual IR
Ordering Information

Part NoDescription of product
LNK-4KE-1204K@30HZ HDMI Extender 120M With Loopout & Dual IR
