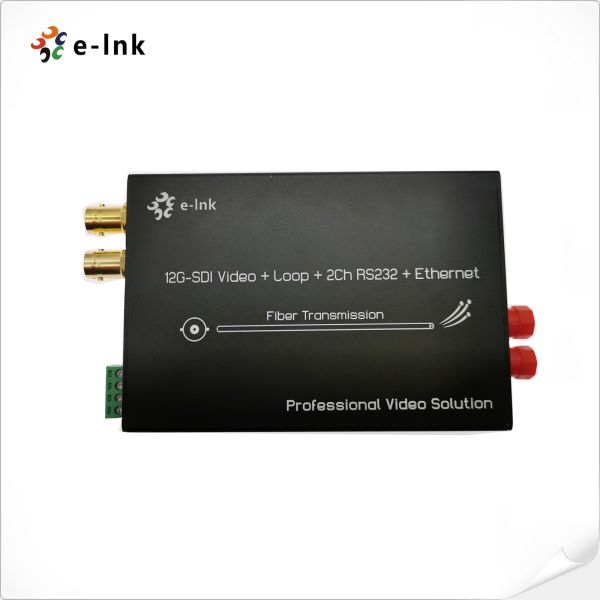

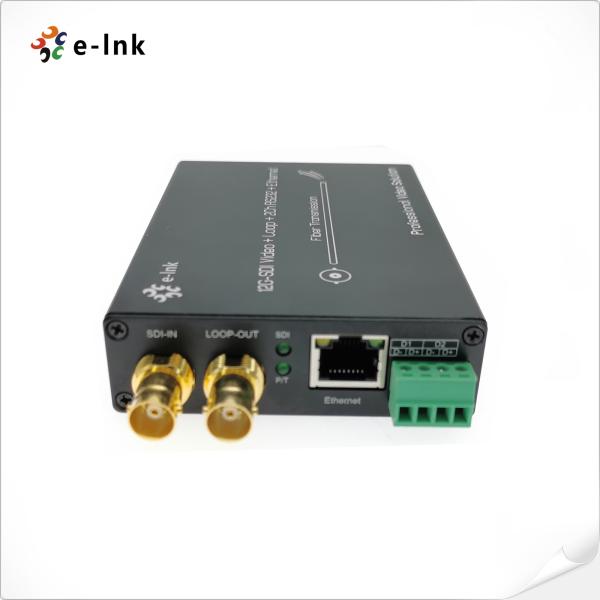

12G-SDI Fiber Converter with 10/100/1000M Gigabit Ethernet and 2Ch Backward RS485
12G-SDI Fiber Converter with 10/100/1000M Gigabit Ethernet and 2Ch Backward RS485
12G-SDI Fiber Converter with 10/100/1000M Gigabit Ethernet and 2Ch Backward RS485
12G-SDI Fiber Converter with 10/100/1000M Gigabit Ethernet and 2Ch Backward RS485
12G-SDI Fiber Converter with 10/100/1000M Gigabit Ethernet and 2Ch Backward RS485
12G-SDI Fiber Converter with 10/100/1000M Gigabit Ethernet and 2Ch Backward RS485
Specifications
Brand Name :
E-link
Model Number :
LNK-12GSDI-1V2R1GE
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1pair
Price :
$25-369
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000pairs/month
Delivery Time :
5-12 working days
Packaging Details :
12G SDI Fiber Transmitter Receiver Standard Export Package
Product Name :
12G-SDI Fiber Converter with Ethernet
Ethernet :
10/100/1000Mbps
Data Type :
2Ch Backward RS485
Video Formats :
12G/6G/3G/HD/SD
Supported Resolution :
HDTV 4K*2K, 1080P, 1080I, 720P
Power Supply :
12 VDC
Input cable specification :
≤70m@12G SDI Belden 1694A
Output cable specification :
≤60m@12G SDI Belden 1694A
Dimensions :
117 x 80 x 24 (mm) (LxWxH)
Description

12G-SDI Fiber Converter with 10/100/1000M Gigabit Ethernet and 2Ch Backward RS485

12G-SDI Fiber Over Ethernet Extender Advantage

► Supports one channel of 12G-SDI input and embedded audio synchronous transmission;
► Support reverse RS485 (Tally optional) signal transmission;
► The transmitter supports ring pass output, and the receiver supports dual output;
► Adopting high-quality 12G SDI dedicated BNC connectors;
► Adaptive technology, without setting adjustments, supports plug and play and hot swapping;
► The status indicator LED lights provide real-time monitoring of parameters such as power supply, optical path, and video;
► Aluminum alloy shell anodizing process, suitable for industrial environments

12G SDI Fiber Converter with 1000Mbps Ethernet Overview
The LNK-12GSDI-1V2R1GE series 12G-SDI digital optical transceiver is composed of a 12G-SDI transmitter and receiver, supporting UHDTV/4K/HDTV/SDTV SDI high-definition video, and transmitting high-definition SDI, Gigabit Ethernet, and reverse Tally/RS485 signals through a single core single mode optical fiber. Optical transceiver transmission has the advantages of long transmission distance (0-80km), wide frequency band, strong anti-interference performance, high safety performance, small size, and light weight, making it suitable for long-distance and special environment transmission.

12G SDI over Fiber Transmitter Receiver Technical Indexes

Formats

Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)

Compatible

Compatible With DVB-ASI and AES10 (MADI)

Input

1 x 12G-SDI on BNC

Output

2 x FC optical fiber

1 x 12G-SDI loop-out on BNC

Supported Resolution

HDTV 4K*2K, 1080P, 1080I, 720P

Resolution range

3840*2160@60Hz

Input cable specification

≤70m@12G SDI Belden 1694A

Output cable specification

≤60m@12G SDI Belden 1694A

Ethernet

10/100/1000Mbps

Data type

2Ch Backward RS485

Optical transmission bandwidth

270MHz～12GHz

Power

12 VDC

Power Consumption

6 W (Max.)

Dimensions (LxWxH)

117 x 80 x 24 (mm)

Operating Temperature

-10℃～70℃

Storage Temperature

-40℃～85℃

12G-SDI Fiber Converter with 10/100/1000M Gigabit Ethernet and 2Ch Backward RS485

12G-SDI Fiber Converter with 10/100/1000M Gigabit Ethernet and 2Ch Backward RS485

12G SDI Video Over Ethernet Fiber Transmitter Receiver Ordering Information

Model

Description
LNK-12GSDI-1V2R1GE
12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485, SMF, FC Fiber Connector 10KM, including Transmitter and Receiver, used by pairs
