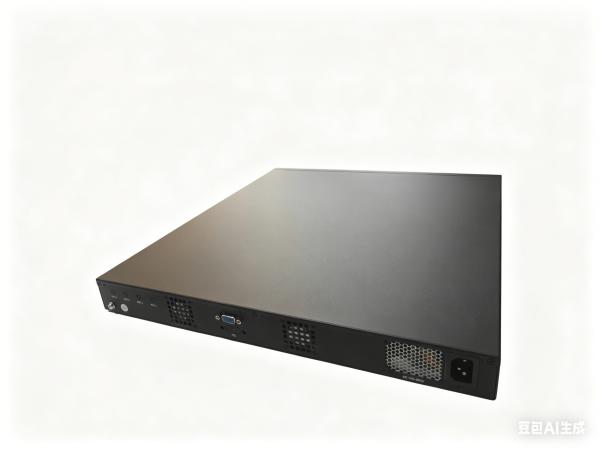

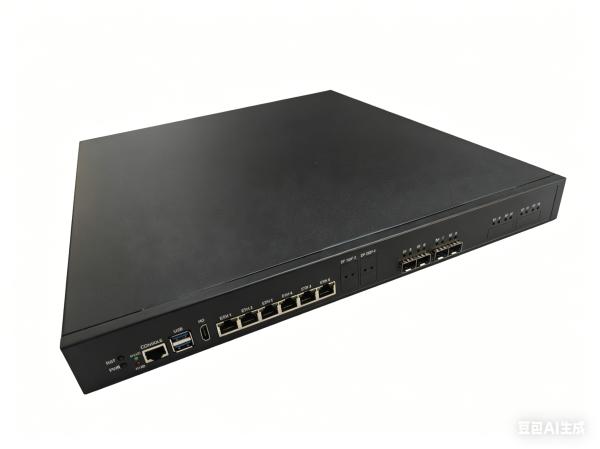

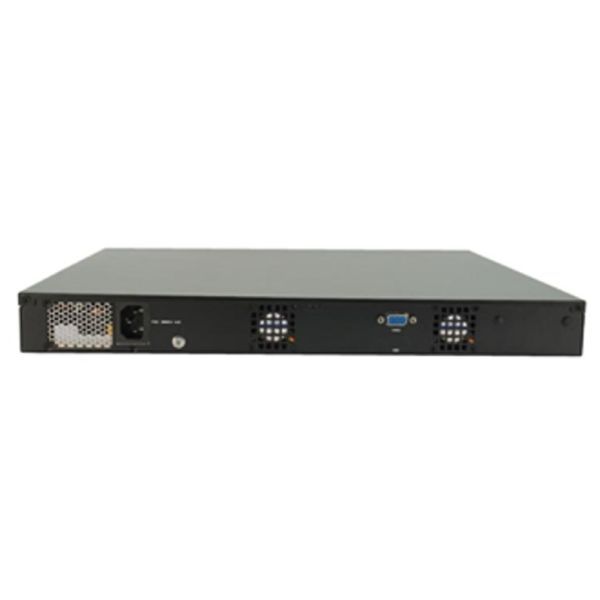

1U rackmount Intel® H770 6*2.5G LAN 4*10G SFP fiber optical Firewall Appliance
1U rackmount Intel® H770 6*2.5G LAN 4*10G SFP fiber optical Firewall Appliance
1U rackmount Intel® H770 6*2.5G LAN 4*10G SFP fiber optical Firewall Appliance
1U rackmount Intel® H770 6*2.5G LAN 4*10G SFP fiber optical Firewall Appliance
1U rackmount Intel® H770 6*2.5G LAN 4*10G SFP fiber optical Firewall Appliance
1U rackmount Intel® H770 6*2.5G LAN 4*10G SFP fiber optical Firewall Appliance
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
VGS-F10206041J-H770
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
Chassis :
High quality aluminium sheet chassis
Dimension :
430mm*470mm*45mm
Chassis color :
Black
CPU :
Support Intel® 12/13/14th Generation Core™ i3/i5/i7
Memory :
4*DDR5 LO-DIMM,MAX support 128GB
Gigabit LAN :
6* Intel® I226V 2.5G LAN 4*XL710 10G optical ports
Description

1U rackmount Intel® H770 6*2.5G LAN 4*10G SFP fiber optical Firewall Appliance support pFsense

Key Features

Support Intel® 12/13/14th Generation Core™ i3/i5/i7

Support 1*VGA/HDMI display output

4*DDR5 LO-DIMM,MAX support 128GB

Support 3*SATA3.0+1*SAS(4*SATA)+1*M.2 NVME/SATA

6*Intel I226V 2.5G electrical ports

4*XL710 10G optical ports

1* CISCO standard serial port console

2* USB3.0

1*M.2 support 4G/5G

1*M.2 support WIFI6

ATX PSU AC 110V ~ 240V

Dimension : 430mm*470mm*45mm

Paper box : 550 mm *560 mm *145mm

High quality galvanized steel sheet chassis

1U standard rack mounting method

Specifications

Model No. VGS-F10206041J-H770
Chassis Color Black
Dimension 430mm*470mm*45mm
Structure 1U Standard chassis
Material High quality galvanized steel sheet
Installation 1U standard rack mounting method
Platform Processor Support Intel® 12/13/14th Generation Core™ i3/i5/i7, Pentium®, Celeron® CPU,FCLGA1700
Chipset Adopt Intel® H770/H610/H660/B660
Graphics

Integrated Intel® HD Graphics

support 1*VGA/HDMI display output
Storage Memory 4*DDR5 LO-DIMM,MAX support 128GB
HDD 3*SATA3.0+1*SAS(4*SATA)
SSD 1*M.2 NVME/SATA
Audio Audio N/A
Expansion WiFi /4G /5G

1*M.2 support 4G/5G,1*SIM

1*M.2 support WIFI6
Front I /O Serial Port 1* CISCO standard serial port console
USB 2* USB3.0
LAN

6*Intel I226V 2.5G electrical ports

4*XL710 10G optical ports

Support bypass 2x segment, LAN1/2 & 3/4 (Optional)
SFP Support 4*10G SFP(Optional)+2/4*10GSFP(Optional)+2/4*10G SFP(Optional)
LED 1* HDD LED, 1* Power LED
Back I/O Display 1*VGA/1*HDMI(default VGA)
Power Interface 1* ATX Power Interface
Power Supply Input

ATX PSU

AC 110V ~ 240V
Reliability Operating Temp. -10℃~60℃
Storage Temp. -20℃~70℃
Relative Humidity 5%-95%, no condensing
Vibration 0.5g rms/5-500HZ/random/operating
Operate System Support Win 10/11, Linux, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos, Pfsense, iKuai, WayOS etc.
