Intel® J5005 4*2.5G LAN Firewall computer pFsense industrial pc fan cooling
Intel® J5005 4*2.5G LAN Firewall computer pFsense industrial pc fan cooling
Intel® J5005 4*2.5G LAN Firewall computer pFsense industrial pc fan cooling
Intel® J5005 4*2.5G LAN Firewall computer pFsense industrial pc fan cooling
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
VGS-BF1404003HDSF-J5005
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
Chassis :
Aluminium chassis
Dimension :
178x126x56(mm)
Chassis color :
Black
CPU :
Celeron J5005 Processor Quad-Core
RAM :
2 *DDR4
Gigabit LAN :
4 ×Intel I226 2.5G LAN
COM port :
1* CISCO standard RS232 serial
Description

Intel® J5005 4*2.5G LAN Firewall computer pFsense industrial pc fan cooling

Key Features

Aluminium alloy chassis

Onboard Intel® Celeron J5005 Processor Quad-Core Quad-Thread

2 × DDR4 SO-DIMM slots, DDR4 2400, Max. 8GB supported

1 × SATA port

1 × M-SATA SSD port

1 × M.2 2280 SSD port

Integrated Intel UHD Graphics 450MHz

1 × DP port, 1 × HDMI port

4 ×Intel I226 2.5G Ethernet ports,

1 × RJ45 COM port

2 × USB2.0, 2 × USB3.0,

1 × HDMI (with audio output) + DP, 1 × power button,

1 × SIM card slot

DC 12V-4A, 5.5×2.5mm barrel jack

Dimension: 178x126x56(mm)

Weight: 1.75 kg (complete unit),1.15 kg (bare unit)

Package size: 33× 23 × 8 cm

Specifications

Model No VGS-BF1404003HDSF-J5005
Chassis Color Black
Material aluminium alloy chassis
Installation Desktop
Processor Onboard Intel® Celeron J5005 Processor, FCBGA1090, Quad-Core Quad-Thread, 1.5GHz
Chipset J5005
BIOS AMI EFI BIOS
Memory 2 × DDR4 SO-DIMM slots, DDR4 2400, Max. 8GB supported
Storage

1 × SATA port

1 × M-SATA SSD port

1 × M.2 2280 SSD port, PCIe 2.0 x1
Graphics Integrated Intel UHD Graphics 450MHz
Display Interfaces

1 × DP port

1 × HDMI port

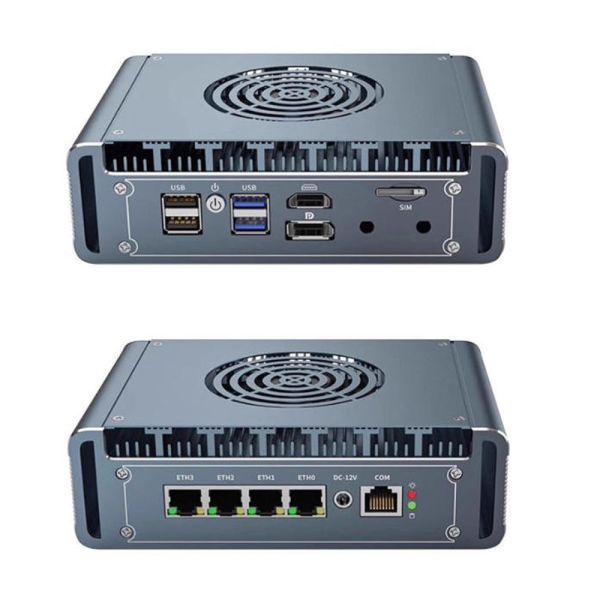

Front I/O

4 × 2.5G Ethernet ports

1 × RJ45 COM port

1 × DC power jack

1 × power/HDD LED indicator
Rear I/O

2 × USB2.0

2 × USB3.0

1 × HDMI (with audio output) + DP

1 × power button

1 × SIM card slot
Expansion Slot 1 × Mini PCI-E slot
Network Onboard Intel I226 2.5G Ethernet controller, 4-port design
Features Power-on on AC restore, scheduled power-on, Wake-on-LAN, PXE boot, Watchdog timer
Power Supply DC 12V-4A, 5.5×2.5mm barrel jack
Certifications CE, CCC, FCC, RoHS
Dimensions 178x126x56(mm)
Operating Temperature

0 ~ +50℃(with commercial HDD),

-20℃~ +50℃(with industrial SSD), with air flow
Humidity 5 ~ 90% relative humidity, non-condensing
Weight 1.75 kg (complete unit),1.15 kg (bare unit)
Package Dimensions 33 × 23 × 8 cm
Operate System Support Pfsense ,Linux, iKuai, LEDE, Openwrt, Panabit, Smart6, Win 7/8/10 etc.
