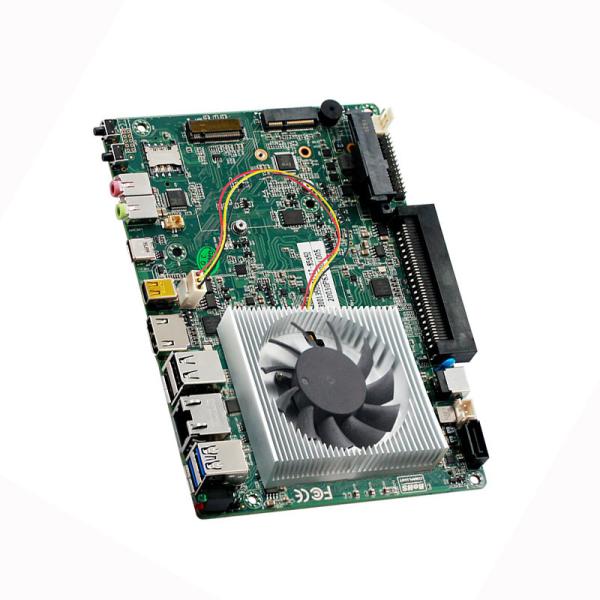

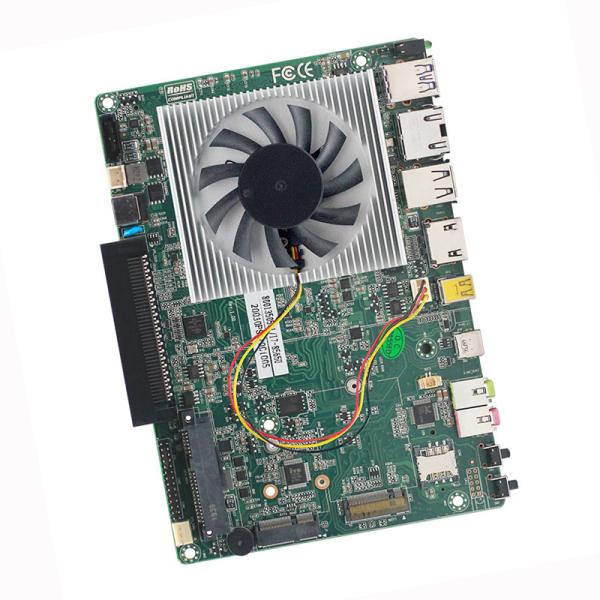

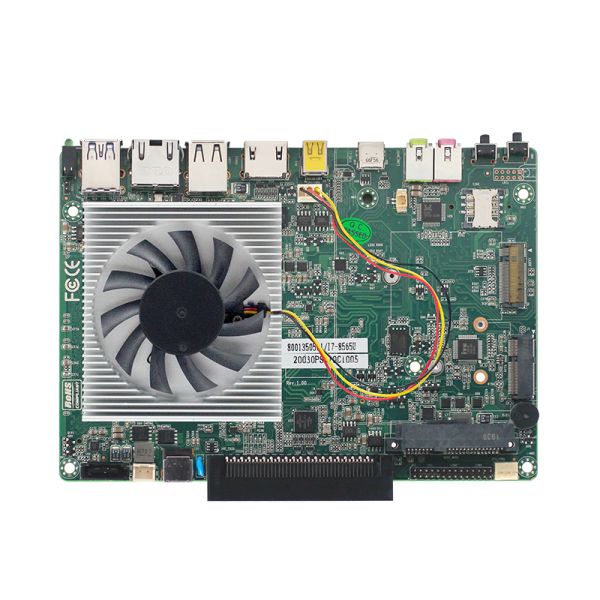

DC12-19V 8th gen I3-8145U / 4205U Whiskey Lake OPS PC Motherboard NGFF_SSD For Electronic Whiteboard
DC12-19V 8th gen I3-8145U / 4205U Whiskey Lake OPS PC Motherboard NGFF_SSD For Electronic Whiteboard
DC12-19V 8th gen I3-8145U / 4205U Whiskey Lake OPS PC Motherboard NGFF_SSD For Electronic Whiteboard
DC12-19V 8th gen I3-8145U / 4205U Whiskey Lake OPS PC Motherboard NGFF_SSD For Electronic Whiteboard
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
OPS-PM08
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Whiskey Lake i3-8145U / i5-8265U / i7-8565U / Celeron® 4205U
RAM :
1*DDR4 SODIMM 260 Socket
Ethernet :
1*Gigabit LAN
Display :
MINI DP / HDMI
COM :
1* RS232
NGFF_SSD :
1*NGFF_SSD Port
Power :
Single input DC power supply, DC12-19V
Size :
165*114.2 mm
Description


Notice:

When you inquiry , you can choose the following Model

OPS-PM08-4205U onboard Intel® Celeron® Processor Whiskey Lake 4205U dual cores 2 threads1.8GHz Processor

OPS-PM08-I3 onboard Intel® Whiskey Lake i3-8145U dual cores 4 threads 2.1~3.9GHz Processor

OPS-PM08-I5 onboard Intel® Whiskey Lake i5-8265U quad cores 8 threads1.6~3.9GHz Processor

OPS-PM08-I7 onboard Intel® Whiskey Lake i7-8565U quad cores 8 threads1.8~4.6GHz Processor

DC12-19V Whiskey Lake i3-8145U / i5-8265U / i7-8565U / Celeron® 4205U OPS PC mainboard with1*RS-232 NGFF_SSD for Electronic Whiteboard


Key features

Integrated 8th Generation Intel® Core™ Whiskey Lake i3-8145U / i5-8265U / i7-8565U / Celeron® 4205U
Support 1 *DDR4 SODIMM 260 Socket
Onboard 1*Gigabit Ethernet Port
1*SATA3.0
1*NGFF_SSD Port
1*Gigabit LAN
1*RS-232
1*HDMI
MINI DP
2*USB3.0
2*USB2.0
Size: 165*114.2 mm
Single input DC power supply, DC12-19V, +/-5%

Specifications

Processor CPU

Whiskey Lake i3-8145U / i5-8265U / i7-8565U / Celeron® 4205U
CPU package BGA
chipset Support Whiskey Lake-U Serial processor
BIOS EFI BIOS
Memory Technology Architecture Single channel DDR4 2133/2400MHz
socket 1*DDR4 SODIMM 260 Socket
Video Graphic controller Intel UHD Graphics , graphics models related to CPU
MINI DP MINI DP support max resolution 4096x2304 60HZ
HDMI support max resolution(HDMI2.0)4096*2304@60HZ Support 4K display output
Dual display HDMI+MINI DP sync or asynchronous display

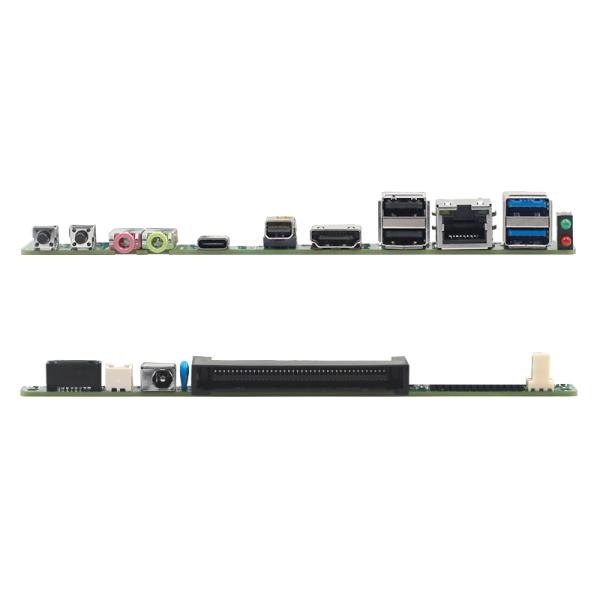

I/O back panel Port

1*MINIDP
1*HDMI
1*LAN
2*USB3.1( GEN2)
2*USB2.0
1*MIC-OUT/LINE-OUT,

1*Power indicator
1* hard disk indicator
1*switch button
1* restart button
1*TYPE-C(USB3.1 GEN2)
Internet controller 1*Intel I219-LM Gigabit Ethernet, RJ45 interface
Audio controller Realtek HD ALC662 audio decoding (left and right channel + microphone)
Super I/O controller IT8163E
Hardware control Watchdog timer 0-255 seconds to provide watchdog routines
Cooler Aluminum fan heatsink
Input / output interface USB

2*USB3.1( GEN2)
2*USB2.0
Com port 1*RS-232
Expansion bus NGFF 1*NGFF port(KEY E)
NGFF 1*NGFF port support 3G/4G module
storage SATA 1*standard SATAIII port,maximum transfer rate of 6Gb/s( with SATA_HDD choose one,default is SATA_HDD)
SATA_HDD 1*SATA_HDD hard disk interface,maximum transfer rate of 6Gb/s(with SATA choose one)
NGFF 1*NGFF_SSD port
Power type Power type Single input DC power supply,DC12-19V,+/-5%
Working temperature Working temperature -20℃ ~ +60℃
Storage temperature -40℃ ~ +85℃
Operating humidity 0% ~ 90% relative humidity, no condensation
Storage humidity 0% ~ 90% relative humidity, no condensation
System 　 WIN10 Linux
Size Size 165*114.2 mm
Weight 0.5KG


About RMA

1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
