Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
EC-P6512D-4THM
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Intel® Haswell i7-4700MQ quad cores 8 threads 2.4GHz Processor
RAM :
Onboard DDR3 2GB/4GB RAM
Ethernet :
2*Gigabit LAN
Display :
LVDS+VGA, LVDS+HDMI, HDMI+VGA
COM :
6*COM
Power :
Single input DC 12V, +/-5%
USB :
1*USB3.0, 5*USB2.0
Size :
145 x 102 mm
Description

Notice:

When you inquiry , you can choose the following Model

EC-P6512D-4THM-I3 Integrated Intel® Haswell i3-4000M dual cores 4 threads 2.4 GHz Processor

EC-P6512D-4THM-I5 Integrated Intel® Haswell i5-4200M dual cores 4 threads 2.5~3.1GHz Processor

EC-P6512D-4THM-I7 Integrated Intel® Haswell i7-4700MQ quad cores 8 threads 2.4~3.4GHz Processor

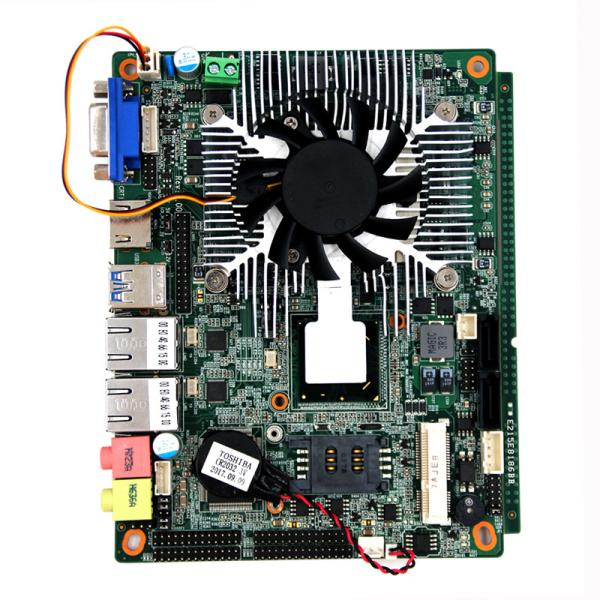

Haswell i7-4700MQ 3.5 inch industrial mainboards onboard 4GB ram 6 COM 2 ethernet ports

Key features

Integrated Intel® Haswell i7-4700MQ quad cores 8 threads 2.4~3.4GHz Processor

Single channel 1066/1333/1600 MHZ

Onboard DDR3 2GB/4GB RAM

Integrated Intel® HD Graphics 4600

Support LVDS+VGA, LVDS+HDMI, HDMI+VGA,Synchronous or asynchronous display

6*COM

2*Gigabit LAN

1*USB3.0

5*USB2.0

2*SATA

1*Mini-PCIe M-SATA Socket

Onboard Realtek HD ALC662

Single input DC power supply 12V-DC, +/-5%

Size: 145 x 102 mm

Specifications

Processor CPU

Intel Mobile 4th Haswell-M i3-i5-i7 CPU

Integrated Intel® Haswell i7-4700MQ quad cores 8 threads 2.4GHz Processor

Max Turbo Frequency 3.4Ghz

CPU package RPGA946 Socket
Chipsets Intel Mobile 4th Haswell-M,QM87/HM86/HM87 (optional) Chipset
BIOS EFI BIOS
RAM Technical architecture Single channel 1066/1333/1600 MHZ
Volume Integrated Onboard DDR3 2GB/4GB RAM
Video graphic controller Intel@ HD Iris Pro Graphics 4600
Dual LVDS Support dual channel 18/24bit LVDS connector;Max support 1920*1200
HDMI 1*HDMI (Resolution maximum:1920*1200)
VGA 1*VGA port (Resolution maximum: 2048x1536)
Dual display LVDS+VGA,LVDS+HDMI,HDMI+VGA,Synchronous or asynchronous display
I/O rear panel I/O 1*VGA,1*HDMI,2*lAN,2*USB2.0/1*MIC-OUT/LINE-OUT
Network controller 2*Realtek RTL8111E-V PCI-E Gigabit Ethernet LAN,RJ45 ports
AUDIO controller Onboard Realtek HD ALC662 chipset,provide 6 channels output (line-in,line-out,Mic)
Super I/O controller NCT6106D
hardware monitor watchdog timers 0~255 timer
Cooler Aluminum heat sink(fan)
  USB 6*USB (1*USB3.0 ports,1*USB2.0 ports,4 USB Pins),Max. supported 5V/1A
input/output port COM 8*GPIO expansion header(8 bit),3.3V@24mA electrical level
  PS/2
  GPIO 8*GPIO expansion header(8 bit),3.3V@24mA electrical level
Expansion Sockets Mini-PCle 1*Mini-PCIe socket,support PCIe,USB device
SMBUS
storage SATA 2*SATAII interface(Maximum transmission rate to 3gb/s)
M-SATA 1*Mini-PCIe M-SATA Socket,support SANDISK protocol(Maximum transmission rate to 3gb/s)
  SMBUS 2Pin SMBUS pin
Power Supply Power type Single input DC power supply,12V-DC,+/-5%
Power Consumption 60W
