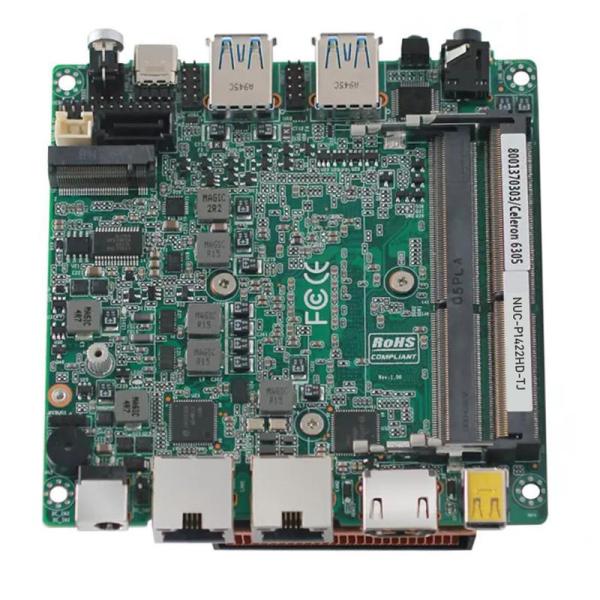

11th Intel Nano Motherboard I7-1165G7 2 Lan Mini DP 4K Display RS232 COM
11th Intel Nano Motherboard I7-1165G7 2 Lan Mini DP 4K Display RS232 COM
11th Intel Nano Motherboard I7-1165G7 2 Lan Mini DP 4K Display RS232 COM
11th Intel Nano Motherboard I7-1165G7 2 Lan Mini DP 4K Display RS232 COM
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
NUC-P1422HD-TL
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
11th Generation Tiger Lake Intel® Core™ i3 i5 i7
RAM :
2*DDR4 SO-DIMM max 64GB
Ethernet :
2*Gigabit LAN
Display :
Support MINI DP+H-D-M-I
COM :
1*RS232
Size :
101 * 101mm
Power :
Wide voltage DC 12-19V power supply
Description

11th Intel® Core™ i7-1165G7 nuc industrial motherobard 2 lan Mini DP 4K display RS232 COM

Notice:

When you inquiry , you can choose the following Model


NUC-P1422HD-TL-6305, Integrated 11th Generation Tiger Lake Intel® Celeron® Processor 6305 dual cores 2 threads 1.8GHz Processor


NUC-P1422HD-TL-I3 , Integrated 11th Generation Tiger Lake Intel® Core™ i3-1110G4 dual cores 4 threads 3.9GHz Processor


NUC-P1422HD-TL-I5 , Integrated 11th Generation Tiger Lake Intel® Core™ i5-1135G7 Quad cores 8 threads 2.4~4.2GHz Processor

NUC-P1422HD-TL-I7 , Integrated 11th Generation Tiger Lake Intel® Core™ i7-1165G7 Quad cores 8 threads 2.8~4.7GHz Processor


11th Intel® Core™ i7-1165G7 nuc industrial motherobard 2 lan MiniDP 4K display RS232 COM

Key features


Integrated 11th Generation Tiger Lake Intel® Core™ i7-1165G7 Quad cores 8 threads 2.8~4.7GHz Processor

2*DDR4 SO-DIMM Ram socket,max support 64GB

Integrated Intel UHD Graphics 620

Support MINI DP+HDMI2.0 Synchronous or asynchronous display

2*LAN

2*USB3.1

4*USB2.0(2*2x5 2mm pin header)

1*RS-232(TTL level can be changed)

1*CIR1(Infrared interface)

Aluminum fan radiator

1*TYPE-C USB3.1 GEN2

1*Mini-PCIe socket,Support PCIe and USB Device

1 standard SATAIII interface, maximum transfer rate 6Gb/s

PCIE X2 NVME or SATA signal 2242 M2 hard disk (choose one of the two)

Wide voltage DC 12-19V power supply

Size: 101*101 mm


Specifications

Processor systemCPU

Adopt Intel 11th Tiger Lake Celeron,Core i3/i5/i7 processor
Integrated 11th Generation Tiger Lake Intel® Core™ i7-1165G7 Quad cores 8 threads 2.8~4.7GHz Processor

CPU packageFCBGA 1449
ChipsetSupport Tiger Lake serial processor
BIOSEFI BIOS
RamTechnology ArchitectureDual channel DDR4 2400/2666/3200MHz
Ram2*DDR4 SO-DIMM Ram socket,max support 64GB
　Graphics controllerIntel UHD Graphics 620,the graphics card model is related to the CPU
VideoMINI DPMINI DP supports a maximum resolution of 4096x2304 60HZ(Support DP++)
　HDMI2.0HDMI2.0 supports a maximum resolution of 4096x2304 60HZ
　Dual Display supportMINI DP+HDMI2.0Synchronous or asynchronous display

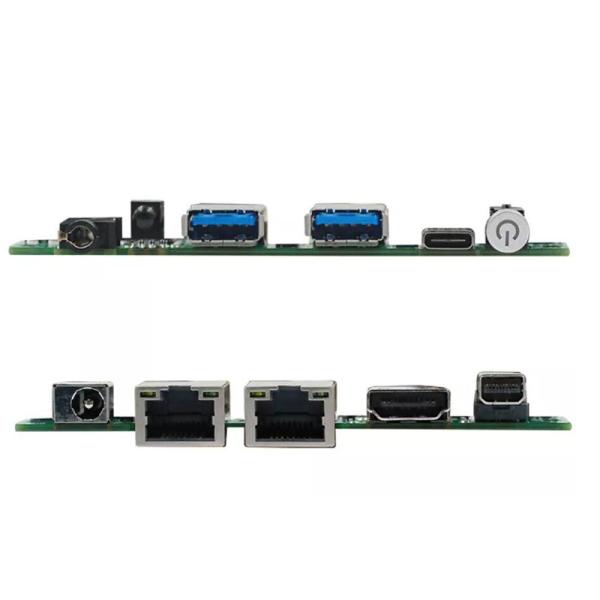

I/O panelport

1*DC

2*LAN

1*HDMI2.0

1*MINI DP

1*AUDIO

2*USB3.1

1*SWLED

1*TPYE-C

1*CIR1(Infrared interface)

NetworkController2*INTEL I211 Gigabit network card (I210 network card chip can be replaced), RJ45 interface
AudioControllerRealtek HD ALC662 audio decoding (left and right channels + microphone)
Super I/OControllerIT8613E
Hardware monitoringWatchdog timer0-255 seconds, provide watchdog routine
CoolerAluminum fan radiator
Input/Output InterfaceUSB

4*USB2.0(2*2x5 2mm pin header)

2*USB3.1 GEN2

1*TYPE-C USB3.1 GEN2

Serial port1*RS-232(TTL level can be changed)
Expansion BusMini-PCle1*Mini-PCIe socket,Support PCIe and USB Device,Comes with micro SIM card slot
LPC1 ESPI pin extension interface
StorageSATA1 standard SATAIII interface, maximum transfer rate 6Gb/s
NGFFPCIE X2 NVME or SATA signal 2242 M2 hard disk (choose one of the two)
Power supplyPower supplyWide voltage DC 12-19V power supply (a power supply with rated power above 80W is required)

　

working environment

　

　

Operating temperature-20℃ ~ +60℃
storage temperature-40℃ ~ +85℃
Working humidity0% ~ 90% relative humidity, non-condensing
Storage humidity0% ~ 90% relative humidity, non-condensing
System support　WIN10 linux (Platform reasons, Legacy mode boot is not supported, only UEFI mode boot is supported)
physical dimensionSize101*101 mm
Weight0.5KG
