Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
EC-P6622D-5TH
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Intel® Core™ 5th Broadwell-U Soc i3/i5/i7 CPU
RAM :
Onboard 2GB/4GB DDR3L
Display :
1*VGA, 1*LVDS, 1*HDMI
Ethernet :
2*Gigabit LAN
COM :
6*COM
USB :
2*USB3.0, 6*USB2.0
Power :
DC12V/5A/7A
Size :
154.8 x 117.4 mm
Description

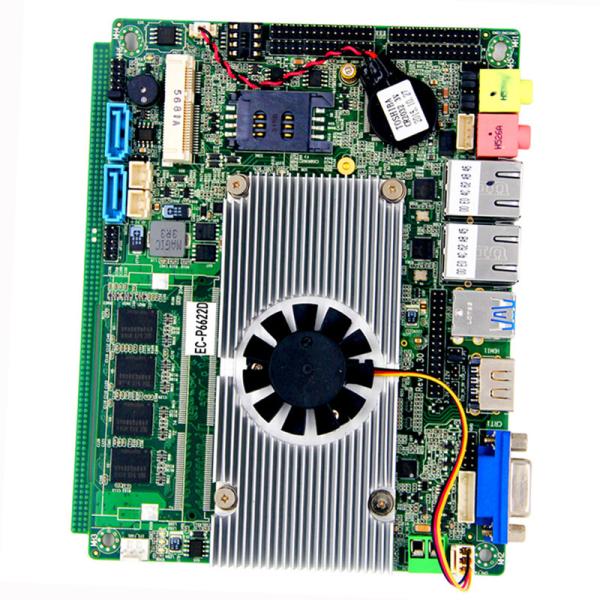

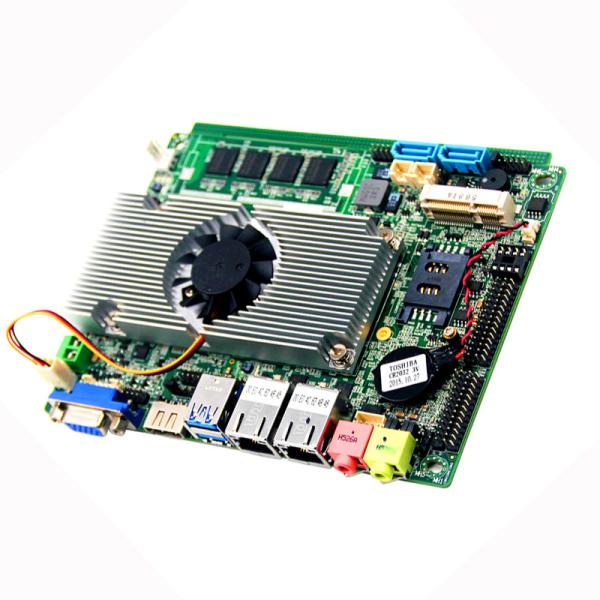

3.5 inch Broadwell-U i3/i5/i7 industrial computer mainboard BGA1168 Onboard DDR3L 6 COM 2 LAN

Notice:

When you inquiry , you can choose the following Model

EC-P6622D-5TH-I3 , Integrated 5th Generation Intel® Core™ i3-5010U dual cores 4 threads 2.1GHz Processor

EC-P6622D-5TH-I5 , Integrated 5th Generation Intel® Core™ i5-5200U dual cores 4 threads 2.2~2.7GHz Processor

EC-P6622D-5TH-I7 , Integrated 5th Generation Intel® Core™ i7-5500U dual cores 4 threads 2.4~3.0GHz Processor

Broadwell-U Soc i3/i5/i7 processors industrial computer mainboard BGA1168 Onboard 2GB/4GB DDR3L RAM 6 COM 2 LAN

Key features

Integrated Intel® Core™ 5th Broadwell-U Soc i3/i5/i7 CPU

Onboard 2GB/4GB DDR3L RAM

Integrated Intel HD Graphics

Support 1*VGA, 1*LVDS, 1*HDMI

6*COM

2*LAN

2*USB 3.0

6*USB 2.0

2*SATA 2.0

1*mSATA socket

Onboard Dual channel amplifier, support 6W/8Ω speaker each channel

Supported power-on rebooting function

Power supply: DC12V/5A/7A

Size: 154.8 x 117.4 mm

Specifications

Processor

　

　

　

 CPU Integrated Intel® Mobile 5th Broadwell-U Soc i3/i5/i7(I5-5200U)
CPU Package BGA1168
Chipset INTEL Broadwell-U SOC
BIOS EFI BIOS

RAM

　

 Technology framework Signal Channel DDR3 1066/1333/1600MHz,maximum up to 16GB.
Capacity Onboard 2GB/4GB

Video

　

　

　

　

 Graphic controller Intel® HD Graphics 4400
LVDS dual channel 18/24bit LVDS,Resolution maximum:1920*1200
VGA Resolution maximum:2048*1536
HDMI Resolution maximum:1920*1200
Double display support VGA+HDMI/VGA+LVDS/LVDS+HDMI, Synchronous or asynchronous display
Network Controller RTL8111E-VL,10/100/1000Mbps,2x 1000M RJ45 LAN
Audio Controller Realtek ALC662 HD AUDIO,Line-out, Mic-in onboard power amplifier(6W 8Ω)SPDIF
Super I/O Controller NCT6106D
Hardware monitor Watchdog & Timer 0~255 timer (Watchdog code optional)
　 Cooler Aluminum alloy heat sink with fan

Input/Output Interface

　

　

　

 USB 2*USB3.0 (compatible USB1.1/2.0) 6*USB2.0, Max. Current supported 5V/1A
Serial ports 5*RS232 ,1*RS232/485 optional, RS485 supported automatic flow control
PS/2 N/A
GPIO 8bit (4pin in/4pin out)/ 3.3V@24mA / Sample code optional/Free definition of input/output
Extended bus mPCle 1*miniPCIE socket ,supported PCIE and USB device
　 SMBUS 　

Storage

　

 SATA 2*SATA2.0 Maximum transmission rate 3Gb/s
M-SATA 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s

Power Supply

　

 Power Type Single input DC power supply ,DC12V5A/7A
Power consumption 35W

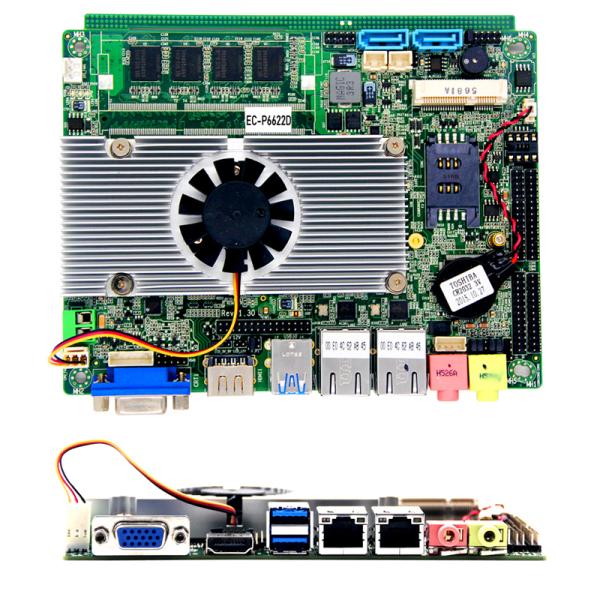

Broadwell-U i3 i5 i7 Industrial PC Mainboard 3.5 Inch BGA1168 Onboard DDR3L 6COM 2LAN
