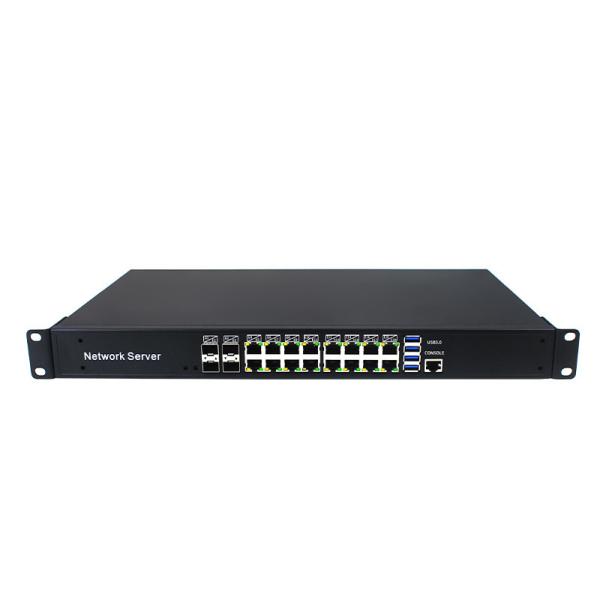

1U rackmount Intel® B365 16 Gigabit LAN 4 Gigabit fiber optical SFP firewall PC appliance
1U rackmount Intel® B365 16 Gigabit LAN 4 Gigabit fiber optical SFP firewall PC appliance
1U rackmount Intel® B365 16 Gigabit LAN 4 Gigabit fiber optical SFP firewall PC appliance
1U rackmount Intel® B365 16 Gigabit LAN 4 Gigabit fiber optical SFP firewall PC appliance
1U rackmount Intel® B365 16 Gigabit LAN 4 Gigabit fiber optical SFP firewall PC appliance
1U rackmount Intel® B365 16 Gigabit LAN 4 Gigabit fiber optical SFP firewall PC appliance
1U rackmount Intel® B365 16 Gigabit LAN 4 Gigabit fiber optical SFP firewall PC appliance
1U rackmount Intel® B365 16 Gigabit LAN 4 Gigabit fiber optical SFP firewall PC appliance
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
BF10416401-B365
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
Chassis :
1U High quality aluminium sheet chassis
Dimension :
440mm*284mm*46mm
Chassis color :
Black
Processor :
Intel® core 8th/9th Gen i3/i5/i7
Chipset :
Intel® B365
RAM :
2* DDR3 up to 32GB
Gigabit LAN :
16* RJ45 Gigabit Ethernet Port
SFP :
4*Fiber optical SFP
COM port :
1* CISCO standard serial port
Description

1U rackmount Intel® B365 16 Gigabit LAN 4 Gigabit fiber optical SFP firewall PC appliance soft router support pFsense Mikrotik

Key Features

Support LGA1151 Intel® core 8th/9th Gen i3/i5/i7 /Pentium/Celeron processor

Intel® B365 chipset

Integrated HD Graphics

Support 2*DDR3 1066/1333/1600MHZ maximum to 32GB

Support 1* 2.5”/3.5” SATA HDD bay

Support 1*MSATA SSD

1* CISCO standard serial port

4* USB3.0

16* RJ45 Gigabit Ethernet Port

4* Fiber optical SFP

1* VGA output

1*H-D-M-I output

AC 110V ~ 240V ATX power supply

Dimension : 440mm*284mm*46mm

1U rackmount Standard chassis

High quality aluminium sheet chassis

Specifications

Model No. BF10416401-B365
Chassis Color Black
Dimension 440mm*284mm*46mm
Structure 1U rackmount Standard chassis
Material High quality aluminium sheet chassis
Platform Processor Support LGA1151 Intel® core 8th/9th Gen i3/i5/i7 /Pentium/Celeron processor
Chipset Intel® B365
Graphics Integrated HD Graphics
Storage Memory Support 2*DDR3 1066/1333/1600MHZ maximum to 32GB
HDD Support 1* 2.5”/3.5” SATA HDD bay (4*SATA interface)
SSD Support 1*MSATA SSD
Audio Audio ALC662
Network Ethernet

Onboard 16*Intel WG82574

Onboard 4*i350 Fiber optical SFP
Expansion Mini PCIe

1* MINI-PCIE support M'SATA

1* MINI-PCIE support WIFI
I/O Port Serial Port 1* CISCO standard serial port
USB 4* USB3.0
LAN

16* RJ45 Gigabit Ethernet Port

4* Fiber optical SFP
Display

1* VGA output

1*H-D-M-I output
Power Supply 1* Power Interface
Power Supply Input AC 110V ~ 240V
Power type ATX power supply(Mean Well power supply)
Reliability Operating Temp. 0℃~45℃
Storage Temp. -20℃~70℃
Relative Humidity 5%-95%, no condensing
Vibration 0.5g rms/5-500HZ/random/operating
Operate System Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc.
