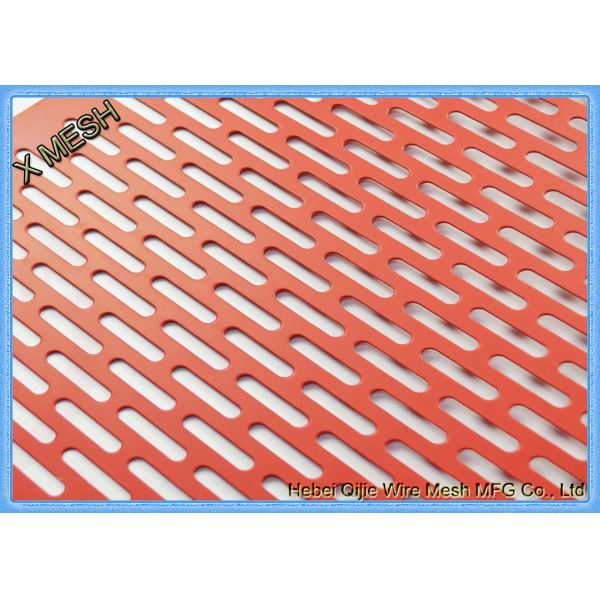

Stainless Steel Oval Hole Perforated Punched Mesh Decorated Metal Sheet
Stainless Steel Oval Hole Perforated Punched Mesh Decorated Metal Sheet
Stainless Steel Oval Hole Perforated Punched Mesh Decorated Metal Sheet
Stainless Steel Oval Hole Perforated Punched Mesh Decorated Metal Sheet
Specifications
Brand Name :
XMESH
Model Number :
QJ-813
Certification :
SGS
Place of Origin :
Hebei, China
MOQ :
200pcs
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
10000 pcs one month
Delivery Time :
15-25days
Packaging Details :
loosed packed or palletized
Material :
Galvanized steel plates, stainless steel plates
Thickness :
1.8 - 6.5 mm
Mesh :
3 - 15 mm hole
Surface finish :
Nature
Hole shape :
Slot
Size :
1.0 x 2.0 m, 1.2 x 2.4 m
Description

Stainless Steel Oval Hole Perforated Punched Mesh Decorated Metal Sheet​

Product descriptions

Slotted Perforated Metal is fabricated from the special alloys, stainless steel or galvanized steel. The slotted pattern includes extended holes with circular or square ends. These are produced in the side staggered or straight line pattern in the plain metal. The holes are punched through slotting that varies in length and width. It is offered in the several gauges, hole sizes, patterns and materials. The shape of hole is determined by the die shape such as for perforation in a slot hole pattern, the die is slot shaped.

The slotted hole is also known as oblong hole, perforated metal with oblong holes are the suitable solution when filtration or separation of liquids and solids is needed. These are commonly used in the wine and food industries.

Stainless Steel Oval Hole Perforated Punched Mesh Decorated Metal Sheet

Applications of Slotted Perforated Metal Sheet

1. Safety and security
2. Pressure equalization or control
3. Ventilation of air, light, sound and gases
4. Diffusers, Strainers and Grills
5. Guards

Our services include:
1: Broad range of metals and alloys available including special wire options such as nickel alloys, pure nickel, etc.
2: Further services include cleaning, cutting and shaping.

Slotted Hole Perforated Metal Sheet Plate Technical Specification:

Perforation centres Open Area Width direction Length direction Perforation centres Open Area Width direction Length direction
0.020 inch – 20 .530 .465 3/16 inch 5/16 inch 33 .400 .334
1/16 inch 1/8 inch 23 .500 .435 ¼ inch 5/16 inch 58 .200 .147
5/64 inch 7/64 inch 46 .286 .225 ¼ inch 3/8 inch 40 .333 .270
5/64 inch 1/8 inch 36 .375 .310 ¼ inch 7/16 inch 30 .428 .363
3/32 inch 5/32 inch 32 .400 .334 ¼ inch ½ inch 23 .500 .435
3/32 inch 3/16 inch 23 .500 .435 3/8 inch 1/2 inch 51 .250 .192
1/10 inch 5/32 inch 36 .360 .296 3/8 inch 9/16 inch 40 .333 .270
1/8 inch 3/16 inch 40 .333 .270 3/8 inch 5/8 inch 33 .400 .334
1/8 inch 7/32 inch 29 .428 .363 7/16 inch 5/8 inch 45 .300 .239
1/8 inch ¼ inch 23 .500 .435 1/2 inch 11/16 inch 47 .273 .214
5/32 inch 7/32 inch 46 .288 .225 9/16 inch ¾ inch 51 .250 .192
5/32 inch ¼ inch 36 .375 .310 5/8 inch 13/16 inch 53 .231 .175
3/16 inch 1/4 inch 51 .250 .192 3/4 inch 1 inch 51 .250 .192

Stainless Steel Oval Hole Perforated Punched Mesh Decorated Metal Sheet

slot hole perforated hole sheets-S0003

Stainless Steel Oval Hole Perforated Punched Mesh Decorated Metal Sheet

slot hole perforated hole sheets-S0001

Stainless Steel Oval Hole Perforated Punched Mesh Decorated Metal Sheet

slot hole perforated hole sheets-S0002
