304 Stainless Steel Welded Wire Mesh, 1/2 inch Hardware Cloth, Chicken Wire Mesh
304 Stainless Steel Welded Wire Mesh, 1/2 inch Hardware Cloth, Chicken Wire Mesh
304 Stainless Steel Welded Wire Mesh, 1/2 inch Hardware Cloth, Chicken Wire Mesh
304 Stainless Steel Welded Wire Mesh, 1/2 inch Hardware Cloth, Chicken Wire Mesh
Specifications
Brand Name :
Qijie
Model Number :
QJ-WM
Certification :
SGS
Place of Origin :
China
MOQ :
10rolls
Payment Terms :
TT
Supply Ability :
1000pcs
Delivery Time :
15-18days
Packaging Details :
pallets
Hole Shape :
Square,Rectangle
Weightpersheet :
Varies Depending On Wire Diameter And Sheet Size
Aperture :
50*75mm Or As Your Demand, 1/4
Standardcompliance :
ASTM, ISO, BS Standards
Thickness :
1.3mm
Surface Treatment :
PVC Coated
Roll Sizes :
24
Color :
Silver, Green, Black (for PVC Coated)
Description

304 Stainless Steel Welded Wire Mesh, 1/2 inch Hardware Cloth, Chicken Wire Mesh​

Galvanized Welded Mesh Panels consists of perpendicular wire strands that are resistance welded at each intersection. Our welded wire mesh is both economical and versatile and has a clean appearance and uniform grid patterns. This product can be made in many materials, such as steel, stainless steel, and galvanized steel.

304 Stainless Steel Welded Wire Mesh, 1/2 inch Hardware Cloth, Chicken Wire Mesh

Feature
Firm structure.
Aesthetic design.
High tensile strength.
Good flexibility.
Corrosion resistance and anti-rust.
Weather resistance.
Long service life.
Appropriate price.

Specification
Material: low carbon steel wire, stainless steel wire and aluminum-magnesium alloy wire.
Wire gauge: 12-24 gauge, or other custom size.
Mesh size: 1/4 inch - 2 inch, or other custom size.
Tensile strength: 300-450 N/mm2.
Elongation: min. 15%.
Surface treatment: galvanized (electro or galvanized), PVC coated, etc.
Coated thickness: 0.5 mm - 1 mm
Color: white, green, black, accept customers' special request.

Specification
Opening Wire Diameter

Width 0.4-2m

Length 5-50m

electric galvanized before welded,

electric galvanized after welded,

hot-dipped galvanized before welded,

hot-dipped galvanized after welded,

PVC coated,

Stainless steel wire

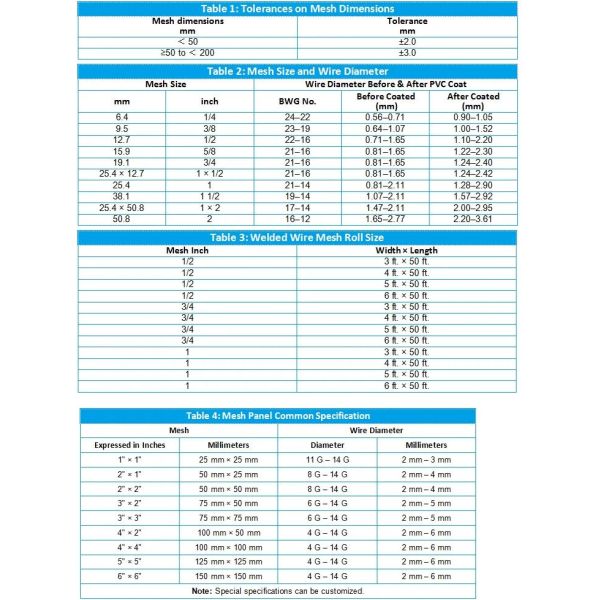

Inch Metric Unit
1/4"x1/4" 6.4mmx6.4mm BWG24-22
3/8"x3/8" 10.6mmx10.6mm BWG22-19
1/2"x1/2" 12.7mmx12.7mm BWG23-16
5/8"x5/8" 16mmx16mm BWG21-18
3/4"x3/4" 19.1mmx19.1mm BWG21-16
1"x1/2" 25.4mmx25.4mm BWG21-16
1-1/2"x1 1/2" 38mmx38mm BWG19-14
1"x2" 25.4mmx12.7mm BWG16-14
2"x2" 50.8mmx50.8mm BWG15-12
2"x4" 101.6mmx101.6mm BWG15-12
4"x4" 101.6mmx152.4mm BWG15-12
4"x6" 101.6mmx152.4mm BWG15-12
6"x6" 152.4mmx152.4mm BWG15-12
6"x8" 15.4mmx203.2mm BWG14-12
Note:Special specification can be made according to customers requires

pvc coated welded wire mesh advantages
1. The grid structure is concise, beautiful and practical;
2. It is easy to transport, and the installation is not restricted by terrain fluctuation;
3. Especially adaptable to mountains, slopes and multi-curved areas;
4. The price is medium to low, suitable for large areas.

304 Stainless Steel Welded Wire Mesh, 1/2 inch Hardware Cloth, Chicken Wire Mesh

304 Stainless Steel Welded Wire Mesh, 1/2 inch Hardware Cloth, Chicken Wire Mesh


304 Stainless Steel Welded Wire Mesh, 1/2 inch Hardware Cloth, Chicken Wire Mesh

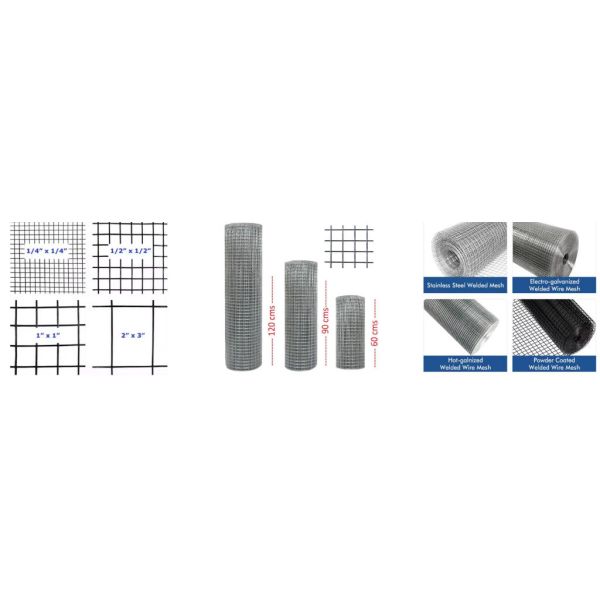

The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have low resistance to wind loads
Easily cut to fit
Available in many styles and materials, such as stainless steel and alumiunum.

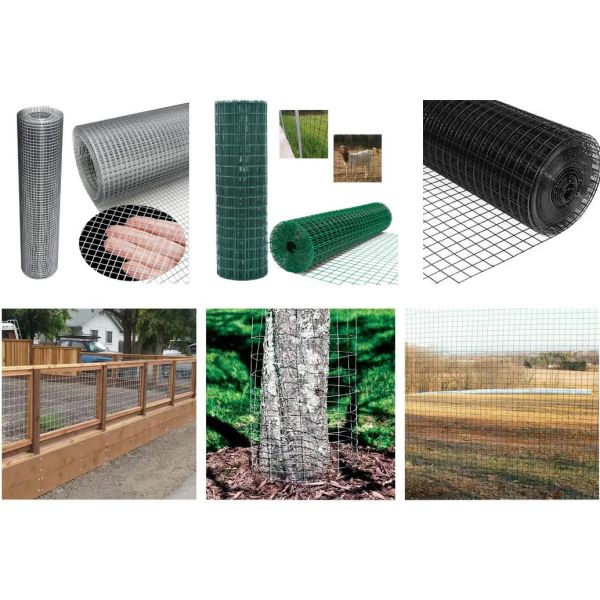

Applications:
Welded wire mesh is also called steel wire mesh, welded mesh, construction meh, square mesh, screen mesh.
Welded wire mesh is widely used in agriculture, construction, transportation, mining and other industries. Such as machine protective netting, animal and livestock fences, flower and tree fences, window guards, passage fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations. Mainly used for general building exterior walls, pouring concrete, high-rise residential buildings, etc. it plays an important structural role in the thermal insulation system.

304 Stainless Steel Welded Wire Mesh, 1/2 inch Hardware Cloth, Chicken Wire Mesh
Welded wire mesh fencing
Welded wire mesh backets
• Welded wire mesh architectural grilles
• Welded wire mesh grates
• Welded wire mesh racks
• Welded wire mesh aggregate screening
• Welded wire mesh test sieve cloth
• Welded wire mesh water screens
• Welded wire mesh guard screens
• Welded wire mesh detention and security
• Welded wire mesh machine guarding
304 Stainless Steel Welded Wire Mesh, 1/2 inch Hardware Cloth, Chicken Wire Mesh
304 Stainless Steel Welded Wire Mesh, 1/2 inch Hardware Cloth, Chicken Wire Mesh
PACKAGE & SHIPPING

Packaging steps:
Each piece put in on carton box, wood case, Plastics Packaging, pallet, etc.
Mode of shipping:
Shipping by air, sea or car.
By sea for batch goods;
Customs specifying freight forwarders or negotiable shipping methods.
