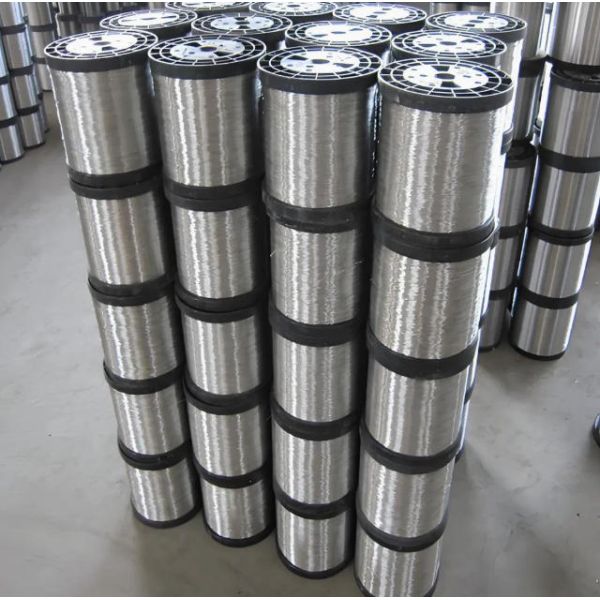

8mm Diameter Galvanized Steel Wire 316 316L Stainless Steel Wire
8mm Diameter Galvanized Steel Wire 316 316L Stainless Steel Wire
8mm Diameter Galvanized Steel Wire 316 316L Stainless Steel Wire
8mm Diameter Galvanized Steel Wire 316 316L Stainless Steel Wire
Specifications
Brand Name :
QIJIE
Model Number :
SW-004
Certification :
CE,SGS,ISO
Place of Origin :
Hebei, China
MOQ :
100kg
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
30000 kg/month
Delivery Time :
10-15 working days
Packaging Details :
wooden case
Material :
Stainless Steel Wire
wire diameter :
0.17mm
Description

8mm Diameter Galvanized Steel Wire 316 316L Stainless Steel Wire

  • Product name
    Galvanized steel wire
    Diameter
    0.3mm-13mm
    Material
    Q195 / Q235 / SAE1006 / SAE1008 45# 60# 70# 80# 72A 82B
    Tensile strength
    200-2100Mpa to galvanized steel hard drawn steel wire
    Length
    custom
    Surface
    hot-dipped / electric / ungalvanized / phosphate galvanized to low carbon hard drawn steel wire
    Standard
    ISO,JIS,AS EN,ASTM
    Packing
    Standard export packing

Gauge SWG BWG AWG
Inch mm Inch mm Inch mm
8 0.16 4.046 0.165 4.191 0.1285 3.264
9 0.144 3.658 0.148 3.759 0.1144 2.906
10 0.128 3.215 0.134 3.404 0.1019 2.588
11 0.116 2.946 0.12 3.048 0.0907 2.305
12 0.104 2.642 0.109 2.769 0.0808 2.053
13 0.092 2.337 0.095 2.413 0.072 1.828
14 0.08 2.032 0.083 2.108 0.0641 1.628
15 0.072 1.829 0.072 1.829 0.0571 1.45
16 0.064 1.626 0.065 1.651 0.0508 1.291
17 0.056 1.422 0.058 1.473 0.0453 1.15
18 0.048 1.219 0.049 1.245 0.0403 1.024
19 0.04 1.016 0.042 1.067 0.0359 0.912
20 0.036 0.914 0.035 0.839 0.032 0.812
21 0.032 0.813 0.032 0.831 0.0285 0.723
22 0.028 0.711 0.028 0.711 0.02535 0.644
23 0.024 0.61 0.025 0.635 0.02256 0.573
24 0.022 0.559 0.022 0.559 0.02011 0.511
25 0.02 0.508 0.02 0.508 0.01791 0.455
26 0.018 0.457 0.018 0.457 0.01594 0.405

Use: Stainless steel microfilaments are widely used in textile, aerospace, pharmaceutical, biochemical, modern industrial, modern civil, petrochemical and other industries. Due to the high scientific and technological content of stainless steel microfilaments, and has a broad market prospects. Widely used in stainless steel wire mesh weaving, stainless steel wire rope, stainless steel hose, stainless steel binding wire, Sewing thread, etc.

Feature
1.Good electric and thermal conduction.
2. Anti-static, radiation protection, long life etc.
3. Excellent heat resistance, ease of fabrication, most importantly the cleanability and hygiene properties.
4. Good acid and alkali resistance, corrosion resistance.
5. High strength, high tensile strength, wear resistance and durability.
6. Strong oxidation resistance, strong solder joint, bright surface.
7. Don't need special surface treatment, it is easy to maintain.

8mm Diameter Galvanized Steel Wire 316 316L Stainless Steel Wire

The feature of Stainless Steel Spring Wire
1.Corrosion Resistance
Stainless steel spring wire has excellent corrosion resistance, which is one of its most significant properties. Due to the presence of chromium in stainless steel, a dense oxide film can be formed on the surface of the material, effectively preventing corrosion from corrosive media such as oxygen and moisture. Therefore, stainless steel spring wires can still maintain good performance in harsh environments such as humidity, acidity, and alkalinity, greatly extending their service life.
2.High Strength
Stainless steel spring wire has the characteristic of high strength and can withstand large tensile and compressive forces. This gives it significant advantages in manufacturing parts such as springs that require high strength loads. At the same time, the high strength of stainless steel spring wire also ensures that it is not easily deformed or broken during use, improving the safety and reliability of the product.
3.Good Elasticity
Elasticity is one of the important performance indicators of spring wire materials. Stainless steel spring wire has good elasticity and can quickly return to its original state after being subjected to external forces. This feature makes stainless steel spring wire have a wide range of application prospects in manufacturing various elastic components, such as automotive shock absorbers, springs in household appliances, etc.
