Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh
Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh
Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh
Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh
Specifications
Brand Name :
XMESH
Model Number :
QJ20200908138
Certification :
ISO9001:2008, SGS, CE
Place of Origin :
CHINA
MOQ :
100 Sqm
Price :
USD5.30-USD31.50
Payment Terms :
TT,LC,
Supply Ability :
1000/pcs
Delivery Time :
10-25days
Packaging Details :
Iron or wooden pallet or wooden case with waterproof cloth.
Material :
Carbon steel,aluminum,stainless steel,galvanized steel
Type :
Flattened expanded
Application :
Protecteing screen,decorative mesh
Processing :
Pressing
Sheet Width :
0.5m-2.5m
Sheet Length :
As required
Hole Shape :
Diamond,square,hexagonal,honeycomb,sunshade,viking,network,galaxie ect.
name :
expanded steel mesh
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh

Expanded metal filters, also referred to as expanded mesh filter cylinders, are manufactured from expanded metal sheets. Common structural types include both longitudinal welded pipes and spiral welded pipes. The expanded metal is slit and stretched using punching machines to create various hole patterns, resulting in a product with a robust structure that maintains its shape over time without deformation. As a result, expanded metal cylindrical filters offer greater rigidity and durability compared to wire mesh filter tubes.


we supplies expanded metal filters in standard specifications, with diameters ranging from 10 mm to 300 mm and lengths of up to 3 meters.
These expanded mesh tubes are typically made from materials such as aluminum, galvanized steel, or stainless steel.


Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh

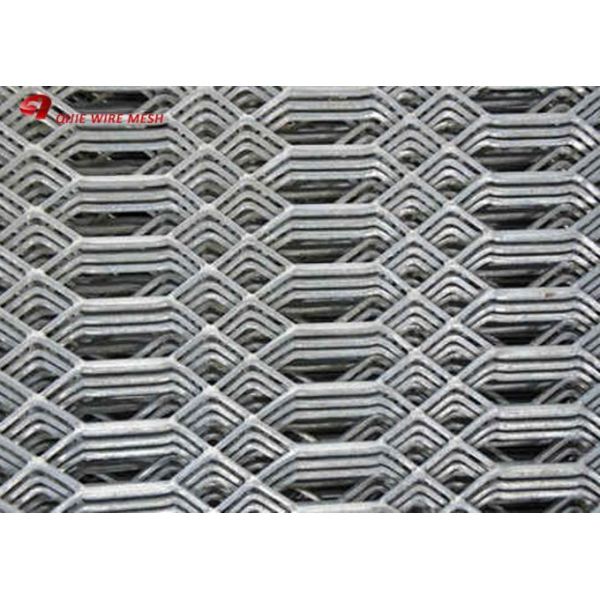

The expanded metal mesh also called expanded metal or expanded metal sheet, it is one of the most widely used metal wire mesh products. The expanded metal mesh is produced of whole metal sheet by punching and expanding process, the material of expanded metal mesh can be stainless steel, carbon steel, galvanized steel or aluminum. The mesh holes of expanded metal mesh is uniform, and the mesh structure is firm and stable, this makes the mesh achieve very high strength with light weight.

expanded metal mesh has very wide applications, the standard grade can be used as mechanical equipment protection shell, handicraft manufacturing, speaker cover net, highway guardrail, green belt protection, etc. Heavy grade expanded metal mesh can be used as pedal net in heavy machinery and boiler, mine, locomotive and ship working platform. Also expanded mesh can be used in industry, railway, shipbuilding, coal, light industry, textile, building materials, agriculture and sideline industry, breeding industry, landscape, mineral, petrochemical, household appliances, and also used in integrated ceiling, doors and windows,security channel, corridor, stair baffle, tables, chairs, benches, vents, various cargo bearing frames, shelves, etc.

Common specification of Expanded Metal Walkway Grating
Thickness Strand width SWD (mm) LWD(mm) SW(mm) LW(mm)
(mm) (mm)
5 6.5 30 75 2000
2300
1800
3000		 600
750
900
1200
5 6.5 30 80
6 7.5 36 100
6 7.5 36 136
5 8 40 100
5 8 40 120
7 11 55 100
7 11 55 135

Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh

Characteristics of Metal Expansion Mesh

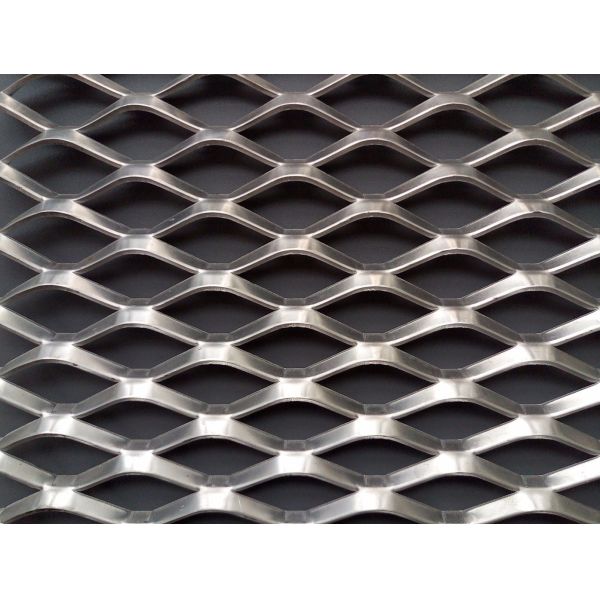

Expanded metal mesh, also known as expanded metal or stretched metal, is a mesh material that is precision-cut and stretched from a single piece of sheet metal. It is not woven or welded together, and its most notable feature is the absence of welds and waste, resulting in a unique diamond-shaped mesh structure.

Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh


Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh
