1x1inch Hot-Dip Galvanizing Welded Wire Mesh Stainless Steel Mesh Netting Roll Used for Breeding and Isolation Fence
1x1inch Hot-Dip Galvanizing Welded Wire Mesh Stainless Steel Mesh Netting Roll Used for Breeding and Isolation Fence
1x1inch Hot-Dip Galvanizing Welded Wire Mesh Stainless Steel Mesh Netting Roll Used for Breeding and Isolation Fence
1x1inch Hot-Dip Galvanizing Welded Wire Mesh Stainless Steel Mesh Netting Roll Used for Breeding and Isolation Fence
Specifications
Brand Name :
Qijie
Model Number :
QJ-WM
Certification :
SGS
Place of Origin :
China
MOQ :
10rolls
Payment Terms :
TT
Supply Ability :
1000pcs
Delivery Time :
15-18days
Packaging Details :
pallets
Hole Shape :
Square,Rectangle
Weightpersheet :
Varies Depending On Wire Diameter And Sheet Size
Aperture :
50*75mm Or As Your Demand, 1/4
Standardcompliance :
ASTM, ISO, BS Standards
Thickness :
1.3mm
Surface Treatment :
PVC Coated
Roll Sizes :
24
Color :
Silver, Green, Black (for PVC Coated)
Description

1x1inch Hot-Dip Galvanizing Welded Wire Mesh Stainless Steel Mesh Netting Roll Used for Breeding and Isolation Fence​

Welded wire mesh is one popular material in concrete, construction and industry. It is made of low carbon steel wire, PVC coated wire and stainless steel wire, after welding or before welding and surface zinc treating .
The high-quality steel wire is selected and processed into a mesh material through precise automated mechanical skills. The overall strength is strong, fully retaining the advantages of high hardness of low-carbon steel wire. The structure is tightly consolidated, the mesh surface is flat, and the mesh holes are uniform, especially at welding points. It is sturdy and not easy to loosen. It is the most excellent anti-corrosion resistance among all the steel wire mesh products.
Welded Wire Mesh Roll
Opening (In inch)
In metric unit(mm)
Wire Diameter(BWG)
1/4" x 1/4"
6.4mm x 6.4mm
22, 23, 24
3/8" x 3/8"
10.6mm x 10.6mm
19, 20, 21, 22
1/2" x 1/2"
12.7mm x 12.7mm
16, 17, 18, 19, 20, 21, 22, 23
5/8" x 5/8"
16mm x 16mm
18, 19, 20, 21
3/4" x 3/4"
19.1mm x 19.1mm
16, 17, 18, 19, 20, 21
1" x 1/2"
25.4mm x 12.7mm
16, 17, 18, 19, 20, 21
1-1/2" x 1-1/2"
38mm x 38mm
14, 15, 16, 17, 18, 19
1" x 2"
25.4mm x 50.8mm
14, 15, 16
2" x 2"
50.8mm x 50.8mm
12, 13, 14, 15, 16
Technical Note:
1.Standard roll length: 30m, 50m; width: 0.5m to 2.5m
2.Special sizes available at request.
3.Packing: in waterproof paper in rolls. Custom packing available at request.
PVC Coated Welded Mesh
Opening (In inch)
In metric unit(mm)
Wire Diameter(BWG)
1/2" x 1/2"
12.7mm x 12.7mm
16,17,18,19,20,21
3/4" x 3/4"
19mm x 19mm
16,17,18,19,20,21
1" x 1"
25.4mm x 25.4mm
15,16,17,18,19,20
Technical Note:
1.Standard roll length: 18m, 30m; width: 0.5m to 1.2m.
2.Special sizes available at request.
3.Packing: in waterproof paper in rolls. Custom packing available at request.

1x1inch Hot-Dip Galvanizing Welded Wire Mesh Stainless Steel Mesh Netting Roll Used for Breeding and Isolation Fence

Welded Wire Mesh Roll
Opening (In inch)
In metric unit(mm)
Wire Diameter(BWG)
1/4" x 1/4"
6.4mm x 6.4mm
22, 23, 24
3/8" x 3/8"
10.6mm x 10.6mm
19, 20, 21, 22
1/2" x 1/2"
12.7mm x 12.7mm
16, 17, 18, 19, 20, 21, 22, 23
5/8" x 5/8"
16mm x 16mm
18, 19, 20, 21
3/4" x 3/4"
19.1mm x 19.1mm
16, 17, 18, 19, 20, 21
1" x 1/2"
25.4mm x 12.7mm
16, 17, 18, 19, 20, 21
1-1/2" x 1-1/2"
38mm x 38mm
14, 15, 16, 17, 18, 19
1" x 2"
25.4mm x 50.8mm
14, 15, 16
2" x 2"
50.8mm x 50.8mm
12, 13, 14, 15, 16
Technical Note:
1.Standard roll length: 30m, 50m; width: 0.5m to 2.5m
2.Special sizes available at request.
3.Packing: in waterproof paper in rolls. Custom packing available at request.
PVC Coated Welded Mesh
Opening (In inch)
In metric unit(mm)
Wire Diameter(BWG)
1/2" x 1/2"
12.7mm x 12.7mm
16,17,18,19,20,21
3/4" x 3/4"
19mm x 19mm
16,17,18,19,20,21
1" x 1"
25.4mm x 25.4mm
15,16,17,18,19,20
Technical Note:
1.Standard roll length: 18m, 30m; width: 0.5m to 1.2m.
2.Special sizes available at request.
3.Packing: in waterproof paper in rolls. Custom packing available at request.


1x1inch Hot-Dip Galvanizing Welded Wire Mesh Stainless Steel Mesh Netting Roll Used for Breeding and Isolation Fence

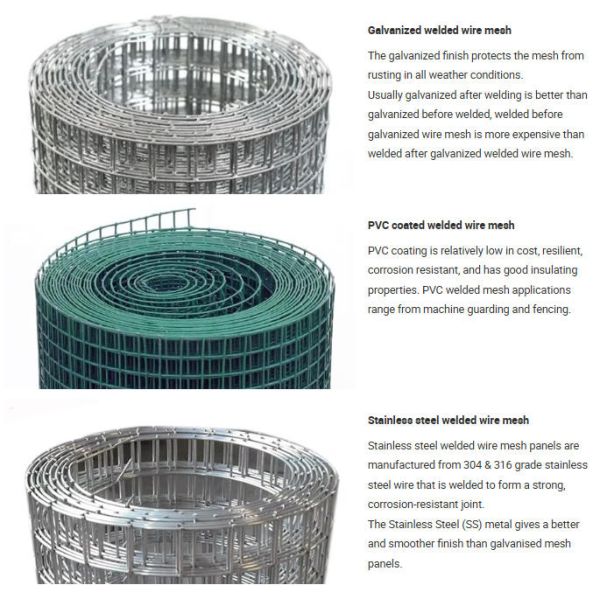

The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have low resistance to wind loads
Easily cut to fit
Available in many styles and materials, such as stainless steel and alumiunum.

Function
Welded wire mesh serves a multitude of functional purposes across different industries. In construction, it is used as a reinforcing material for concrete, providing structural strength and preventing cracking. In agriculture, it acts as fencing to enclose livestock, keep out pests, or protect crops, thanks to its sturdy grid that resists impacts and pressure. It also functions as a screening material for windows, doors, or vents, offering security and ventilation simultaneously. Additionally, it can be employed in crafting and DIY projects for creating decorative elements or functional structures like storage baskets. The mesh's uniform openings and welded joints ensure it can withstand tension and pressure, making it a versatile solution for both practical and protective applications.
1x1inch Hot-Dip Galvanizing Welded Wire Mesh Stainless Steel Mesh Netting Roll Used for Breeding and Isolation Fence
Welded wire mesh fencing
Welded wire mesh backets
• Welded wire mesh architectural grilles
• Welded wire mesh grates
• Welded wire mesh racks
• Welded wire mesh aggregate screening
• Welded wire mesh test sieve cloth
• Welded wire mesh water screens
• Welded wire mesh guard screens
• Welded wire mesh detention and security
• Welded wire mesh machine guarding
1x1inch Hot-Dip Galvanizing Welded Wire Mesh Stainless Steel Mesh Netting Roll Used for Breeding and Isolation Fence
1x1inch Hot-Dip Galvanizing Welded Wire Mesh Stainless Steel Mesh Netting Roll Used for Breeding and Isolation Fence
PACKAGE & SHIPPING

Packaging steps:
Each piece put in on carton box, wood case, Plastics Packaging, pallet, etc.
Mode of shipping:
Shipping by air, sea or car.
By sea for batch goods;
Customs specifying freight forwarders or negotiable shipping methods.
1x1inch Hot-Dip Galvanizing Welded Wire Mesh Stainless Steel Mesh Netting Roll Used for Breeding and Isolation Fence
