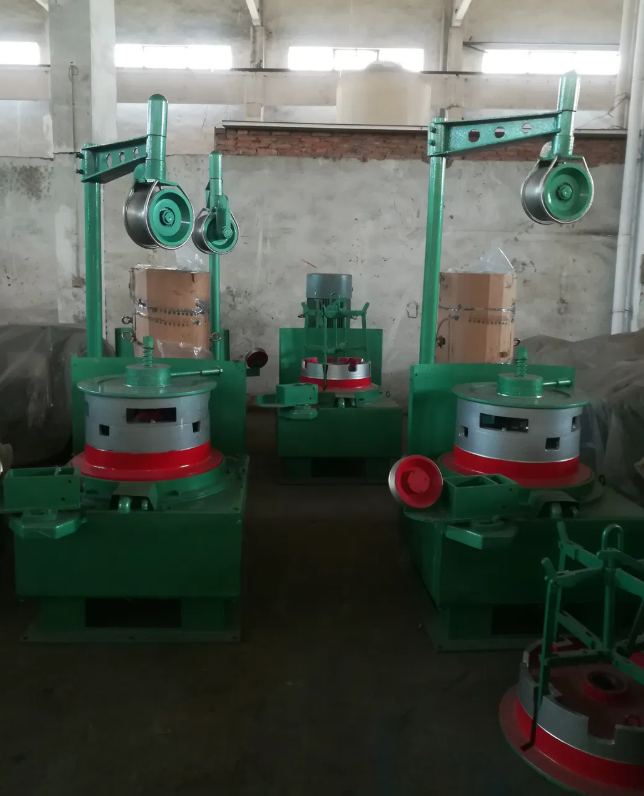

Steel Iron Wire Nail Making Wire Draw Machine
Steel Iron Wire Nail Making Wire Draw Machine
Specifications
Brand Name :
nail machine
Model Number :
nail machine
Certification :
sgs
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
TT,LC,
Supply Ability :
1000/pcs
Delivery Time :
10-15days
Packaging Details :
wood case
Feeding Roller :
7 Pieces of Straighten Roller
Nail Length :
10-200mm
Motor Power :
2-11kw
Nail Production Capacity :
2 Tons Per Shift
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description
Steel Iron Wire Nail Making Wire Draw Machine

Wire drawing machine

Wire drawing machine is ideal equipment to draw raw steel wire.
Most of the time, it is important for nail making line.
It can draw high medium low carbon steel wire from 6.5mm to 0.75mm.

The whole process from feeding wire to outlet wire can be finished in one time and only one worker can operate.

You can choose the model based on following specifications of wire drawing machines:

Item Continuous Multi-block Type
Model LW- 1-6/ 560 LW-1-7/450 LW-1-6/350
Tensile strength of wire rod 110kg/mm2 128/mm2 140/mm2
Max. dia. of wire rod 6.5mm 3.4mm 2.5mm
Min. dia. of wire wire 2.5mm 1mm 0.75mm
Typical configuration LW1- 6/560 LW1-7/450 LW1-6/350
Max. average reduction 30% 20% 21%
Designed total reduction 78-88.5% 77.9% 78%
Max. speed of block 245 m/min 346.9 m/min 200 m/min
Total power 18.5-30kw 7.5-11kw 7.5-11kw
Weight 2000 1500 1000
Overall dimensions(LxWxH) 170x115x175cm 152x81x170cm 140x80x150cm

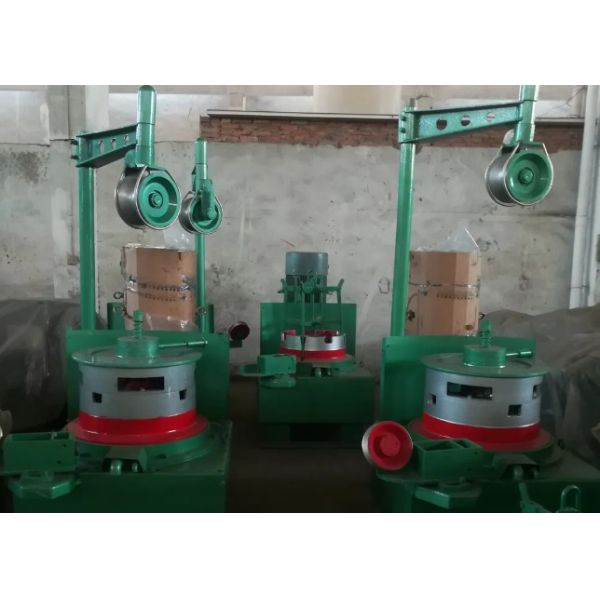

Steel Iron Wire Nail Making Wire Draw Machine

Steel Iron Wire Nail Making Wire Draw Machine

Accessory Equipments of Wire Drawing Machine:

Shucking Machine removes rust and surface oxide from raw material steel wire.

Sharpening machine is to make the point of the raw wire thinner, then it can enter through the wire drawing dies to draw.

Discharging Machine: To discharge finished steel wire from wire drawing machine.

Trunk Type Winding Machine: To discharge more heavier finished steel wire from wire drawing machine.

Butt Welding Machine: To welding split wire together.

Name Model Range of Dia.
Descaling
Pointing Machine FZ-3 3-0.8mm
Pointing Machine FZ-6 6.5-1mm
Butt-Welding Machine UN-3 3--0.8mm
Butt-Welding Machine UN-10 6.5-2mm
Automatic Discharging Machine 500 capacity 500kg
Automatic Discharging Machine 350 capacity 350kg
Trunk Type Winding Mahine XBSJ-750 capacity 800-1000kg
Trunk Type Winding Mahine XBSJ-650 capacity 500-800kg
