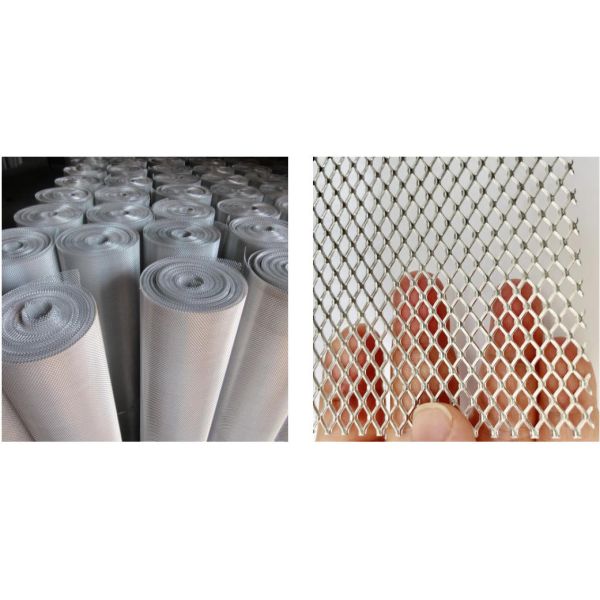

10mm X 7mm Mild Steel Expanded Metal Sheet with 2mm Thick
10mm X 7mm Mild Steel Expanded Metal Sheet with 2mm Thick
10mm X 7mm Mild Steel Expanded Metal Sheet with 2mm Thick
10mm X 7mm Mild Steel Expanded Metal Sheet with 2mm Thick
Specifications
Brand Name :
XMESH
Model Number :
QJ20200908138
Certification :
ISO9001:2008, SGS, CE
Place of Origin :
CHINA
MOQ :
100 Sqm
Price :
USD5.30-USD31.50
Payment Terms :
TT,LC,
Supply Ability :
1000/pcs
Delivery Time :
10-25days
Packaging Details :
Iron or wooden pallet or wooden case with waterproof cloth.
Material :
Carbon steel,aluminum,stainless steel,galvanized steel
Type :
Flattened expanded
Application :
Protecteing screen,decorative mesh
Processing :
Pressing
Sheet Width :
0.5m-2.5m
Sheet Length :
As required
Hole Shape :
Diamond,square,hexagonal,honeycomb,sunshade,viking,network,galaxie ect.
name :
expanded steel mesh
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

10mm X 7mm Mild Steel Expanded Metal Sheet with 2mm Thick​

Product Description

Expanded Metal mesh is formed in an expanding press. The basic metal is simultaneously slit and cold-formed, which expands the slits into diamond shaped openings of uniform size and regularity. Expanded metal mesh is a form of metal stock made by shearing a metal plate in a press, so that the metal stretches, leaving diamond-shaped voids surrounded by interlinked bars of the metal. The most common method of manufacture is to simultaneously slit and stretch the material with one motion.

mesh thickness(mm) distance short(mm) distance long(mm) strip(mm) width (m) length(m) weight(kg/m2)
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5.00
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26


10mm X 7mm Mild Steel Expanded Metal Sheet with 2mm Thick

Expanded metal is one type of the products, the material can be the carbon steel, aluminum plate, stainless steel. it can be used in the building, oil industry as the filters, the galvanized steel flattened expanded metal normally used as the filters for the air, grease. the powder coated flattened expanded metal surface can be coated by the green color, white color, black color, sky blue.

expanded metal mesh has very wide applications, the standard grade can be used as mechanical equipment protection shell, handicraft manufacturing, speaker cover net, highway guardrail, green belt protection, etc. Heavy grade expanded metal mesh can be used as pedal net in heavy machinery and boiler, mine, locomotive and ship working platform. Also expanded mesh can be used in industry, railway, shipbuilding, coal, light industry, textile, building materials, agriculture and sideline industry, breeding industry, landscape, mineral, petrochemical, household appliances, and also used in integrated ceiling, doors and windows,security channel, corridor, stair baffle, tables, chairs, benches, vents, various cargo bearing frames, shelves, etc.

Material Steel, Aluminium,Stainless steel, Bronze, Brass, Titanium, and so on.
Thickness 0.3-12.0mm
Hole shape round, square, diamond,rectangular perforations,octagonal cane,grecian,
plum blossom etc,can be made as your design.
Mesh size 1220*2440mm,1200*2400mm,1000*2000mm or customized
Surface treatment 1.Powder coated
2.Fluorocarbon spraying(PVDF)
3.Polishing
1.Aerospace: nacelles, fuel filters, air filters
4.Automotive: fuel filters, speakers, diffusers, muffler guards, protective radiator grills
5.Hammer mill: screens for sizing and separating
6.Industrial equipment: conveyors, dryers, heat dispersion, guards, diffusers, EMI/RFI protection
7.Pollution control: filters, separators
8.Mining: screens
9.Security: screens, walls, doors, ceilings, guards
10.Sugar processing: centrifuge screens, mud filter screens, backing screens, filter leaves, screens for dewatering and desanding, diffuser drainage plates
Features 1.can be formed easily
2.can be paint or polished
3.easy installation
4.attractive appearance
5.wide range of thicknesses available
6.largest selection of hole size patterns and configurations
7.durableApplication
1.Aerospace: nacelles, fuel filters, air filters
2.Appliances: dish washer strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps, flame arrestors
3.Architectural: stairs, ceilings, walls, floors, shades, decorative, sound absorption
Package 1.On pallet with waterproof cloth
2.In wooden case with waterproof paper
3.In carton box
4.In roll with woven bag
5.In bulk or In bundle

Characteristics of Metal Expansion Mesh
Expanded metal mesh, also known as expanded metal or stretched metal, is a mesh material that is precision-cut and stretched from a single piece of sheet metal. It is not woven or welded together, and its most notable feature is the absence of welds and waste, resulting in a unique diamond-shaped mesh structure.

10mm X 7mm Mild Steel Expanded Metal Sheet with 2mm Thick


10mm X 7mm Mild Steel Expanded Metal Sheet with 2mm Thick



Packaging Details
Steel pallet and waterproof plastic
wooden case
One 20 feet container can load:
Black steel perforated metal approximate 20-23 tons
Aluminum perforated metal mot in 10-17 tons
Every two pieces should put one paper to protect the surface.
Port
TIANJIN

Lead time:

Quantity(pieces) 1 - 100 101 - 5000 5001 - 10000 >10000
Lead time (days) 7 15 20 To be negotiated
