Hi-Rib Galvanized Construction Wire Mesh Expanded Metal High Rib Wire Lath
Hi-Rib Galvanized Construction Wire Mesh Expanded Metal High Rib Wire Lath
Hi-Rib Galvanized Construction Wire Mesh Expanded Metal High Rib Wire Lath
Hi-Rib Galvanized Construction Wire Mesh Expanded Metal High Rib Wire Lath
Specifications
Brand Name :
XMESH
Model Number :
1/8" 0.35mm
Certification :
SGS
Place of Origin :
Hebei, China
MOQ :
200pcs
Payment Terms :
TT,LC,
Supply Ability :
1000/pcs
Delivery Time :
15-25days
Packaging Details :
Pallets
Material :
Galvanized Steel Sheets
Size :
610x2440mm
Rib height :
1/8"
Thickness :
0.35mm
Application :
Protecting Mesh,Screen
Type :
Expanded Mesh,Flattened and Standard,Raised type
Technique :
Perforated,Woven
Weave style :
EXPANDED METAL
Surface treatment :
Hot Dipped Galvanized,Powder coated,Galvanized,powder coating
Product name :
Expanded Metal Mesh,Aluminum Expanded Metal
Feature :
Corrosion Resistance,Durable,Beautiful,lacquer,Easily Assembled
Usage :
Liquid Filter,screen,Construction
Hole shape :
Diamond Hole
Length :
30m
Width :
0.5-2m
Packing :
wooden box,plastic film,pallet
Short way of mesh :
2-40mm
Sample :
free
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

Hi-Rib Galvanized Construction Wire Mesh Expanded Metal High Rib Wire Lath​

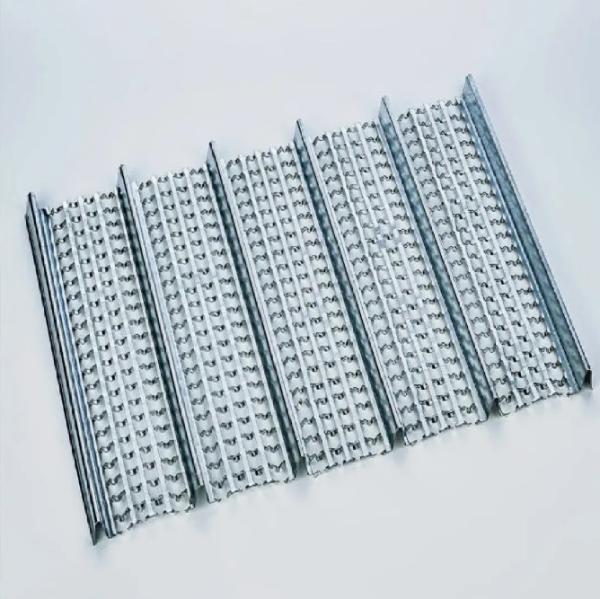

Metal Rib Lath is made of expanded metal for plasterworks.
Hi Rib Lath is mainly used as a permanent formwork for concrete shuttering. Used for columns, retaining walls and joints, it creates a strong base and mechanical key for successive concrete pours, with its angled tabs of mesh becoming embedded with the concrete.

Rib Metal Lath
High Bond Strength: The deep ribs allow the concrete or plaster to adhere more effectively, increasing the overall structural integrity. Flexibility
Rib Mesh can be easily shaped and adapted to complex forms, making it ideal for irregular or curved surfaces. Lightweight: Despite its strength,
Rib Mesh is relatively lightweight, reducing the load on structural elements and simplifying handling on-site. Efficient Installation:
The design reduces the need for extensive support structures during installation, cutting down on labor and material costs.

Rib lath is popularly known as Expanded Rib Lath, due to its process of expanding of metal sheet. Galvanized steel ribbed lathe
offers ideal building material for plastering base, structural form work and fireproofing construction.
Ribbed Lath made of galvanized steel has anti-corrosion properties and allows for smooth application of coatings such as plaster.
Ribbed Lath offers an adaptable, low cost and efficient solutions for a wide range of construction requirements.
Features of Expanded Metal Rib Lath:
1) Mechanical performance is good, the lateral pressure is small
2) Pouring process is easy seen
3) Light weight, easy to transport and install
4) Optimization of process, increase the shear interface
5) Easy to wear and continuous banding steel
6) To adapt to the segmented pouring concrete, the construction of civilization
7) The socket and cutting easy operation

3. Specification

Rib Lathes, 5 Rib, 7 Rib and 9 Rib Design
Rib Type Thickness(mm) Rib Distance(mm) Weight (KG) Width X length(mm)
7 Rib 0.30 100 1.79 610 X 2440
0.35 100 2.09 610 X 2440
0.40 100 2.38 610 X 2440
0.45 100 2.68 610 X 2440
0.5 100 2.98 610 X 2440
5 Rib 0.30 150 1.31 610 X 2440
0.35 150 1.53 610 X 2440
0.40 150 1.75 610 X 2440
0.45 150 1.96 610 X 2440
0.5 150 2.17 610 X 2440
9 Rib 0.30 75 1.89 610 X 2440
0.35 75 2.28 610 X 2440
0.40 75 2.53 610 X 2440
0.45 75 2.84 610 X 2440
0.5 75 3.15 610 X 2440
Other specifications can be customized according to customer requirements

Normal Weight Specification
The expanded metal lath is commonly available in following weights:
1.75 lbs per square yard;
2.5 lbs per square yard;
3.4 lbs pounds per square yard.
